ADJUSTMENT

TRIM ANGLE ADJUSTMENT

To help maintain steering stability and good

performance, always maintain the proper trim

angle as shown in the illustration. The appropri-

ate trim angle varies depending on the combi-

nation of the boat, engine, and propeller, as well

as operating conditions.

•

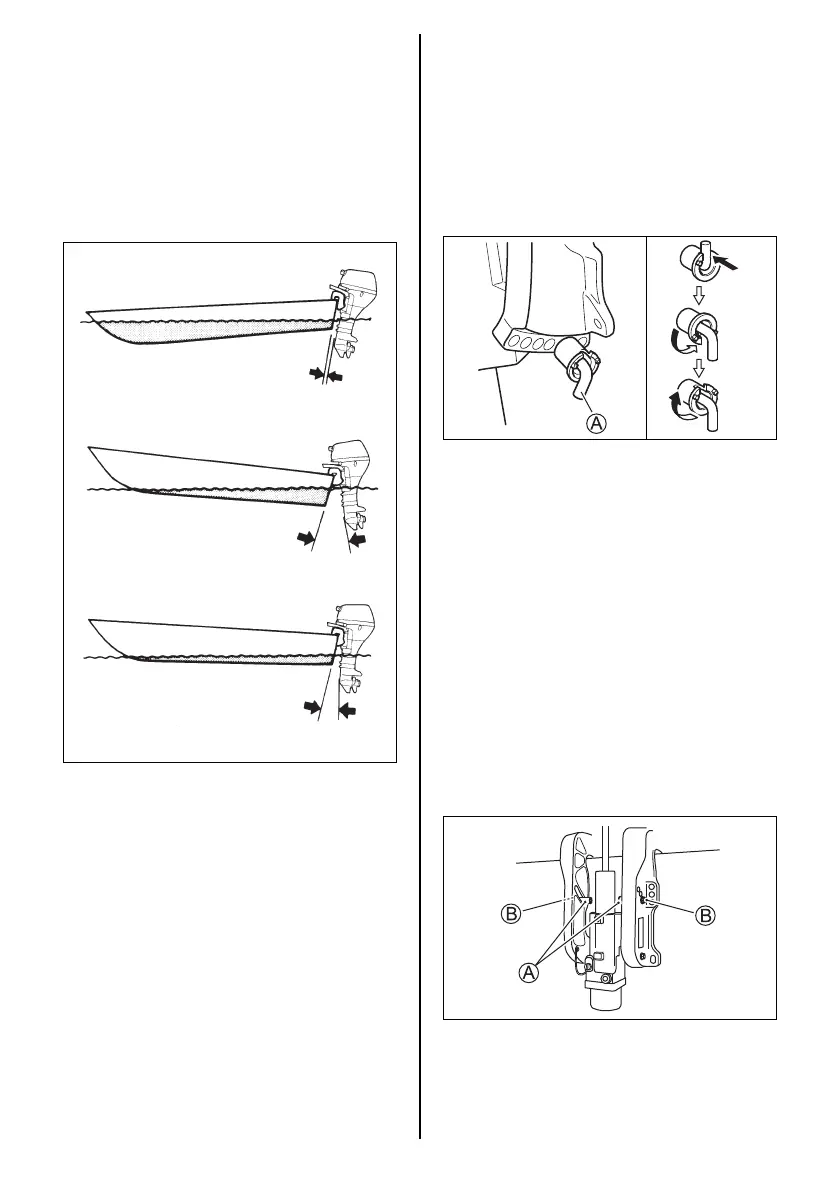

Trim angle too large (Boat tends to “porpoise”)

• Trim angle too small (Boat tends to “plow”)

• Proper trim angle

DF9.9B/9.9BR/15A/15AR/20A/20AR

MODEL

Make a test run in the boat to determine if the

trim angle needs to be adjusted.

To adjust the trim angle:

1. Hold the motor in the fully tilted up position.

(Refer to TILT UP LOCK ARM section.)

2. Reposition the tilt pin A in the desired holes.

3. Lower the motor back down.

To lower the bow, move the pin towards the

boat. To raise the bow, move the pin away from

the boat.

DF9.9BT/9.9BTH/15ATH/20AT/20ATH

MODEL

Make a test run in the boat to determine if the

trim angle needs to be adjusted.

To adjust the trim angle:

1. Lock the motor in the fully tilted up position.

(Refer to TILT UP LOCK KNOB section.)

2. Loosen the bolts B securing tilt pin A.

Reposition the tilt pin A in the desired holes,

then tighten the bolts securely.
