21
MOTOR COVER FASTENING ADJUST-
MENT

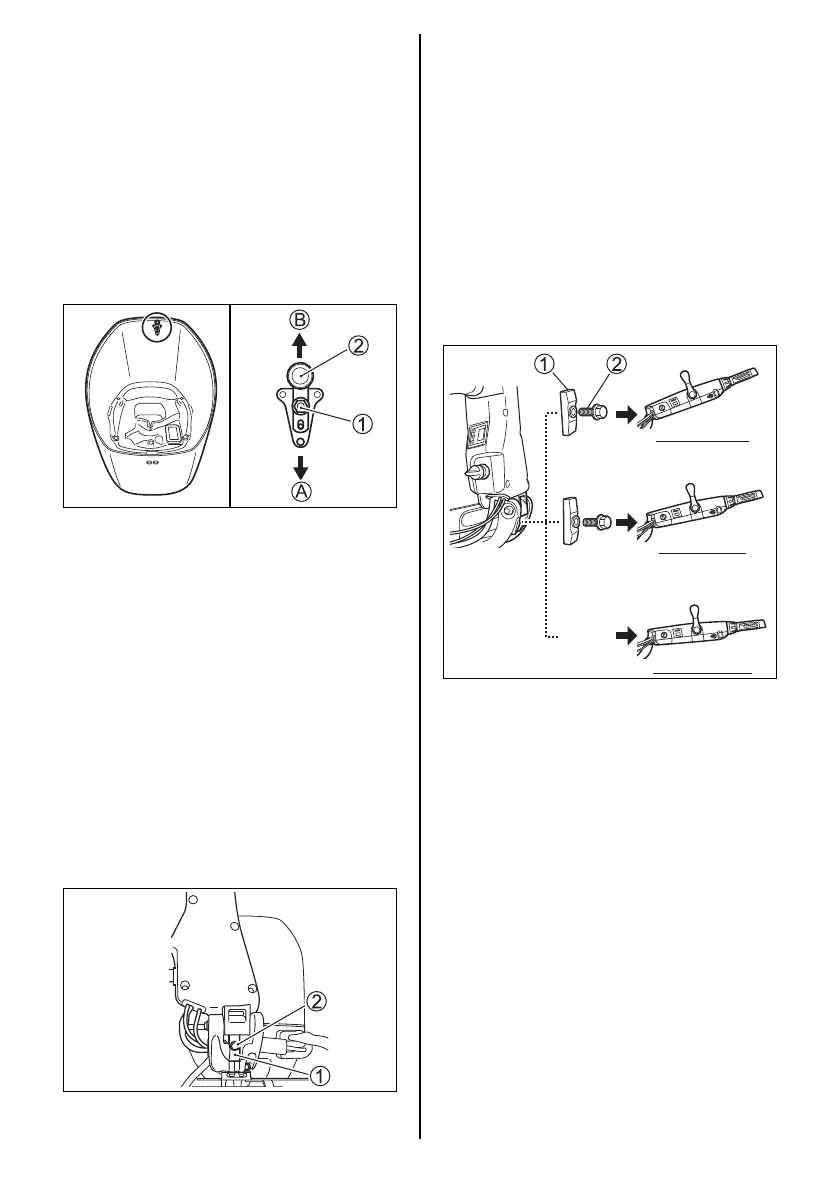

If you feel the motor cover fastening is loose or
too tight when locking the lever, adjust as fol-
lows:
1. Loosen the bolt 1.
2. Adjust the position of bracket 2. To increase
the fastening, move the bracket to the direc-
tion A. To decrease the fastening, move the
bracket to the direction B.
3. Tighten the bolt 1.
TILLER HANDLE ANGLE ADJUSTMENT
TILLER HANDLE MODEL
To adjust the tiller handle angle from level, use
the stopper and bolt which are included in the
tiller handle package.
The tiller handle angle can be adjusted in three
positions.
To adjust the tiller handle angle:
1. When the stopper is not used, the tiller han-
dle will be the smallest angle. If you want to
enlarge the angle, raise up the tiller handle
to install the stopper.
2. Select the direction of the stopper 1 to
install it on to the tiller handle bracket and
tighten the bolt 2 securely.
3. Confirm the tiller handle angle after returning
down the tiller handle if it is convenient to the
operator.
NOTE:
• When the stopper is installed as thick side
upper, the tiller handle will be set to the larg-
est angle from level.
• When the stopper is installed as thin side
upper, the tiller handle will be set to the mid-
dle angle from level.
• When the stopper is not used, the tiller han-
dle will be set to the smallest angle from
level.
Largest angle
Middle angle
Smallest angle
Nonuse
