Suzuki DF40A User Manual

61

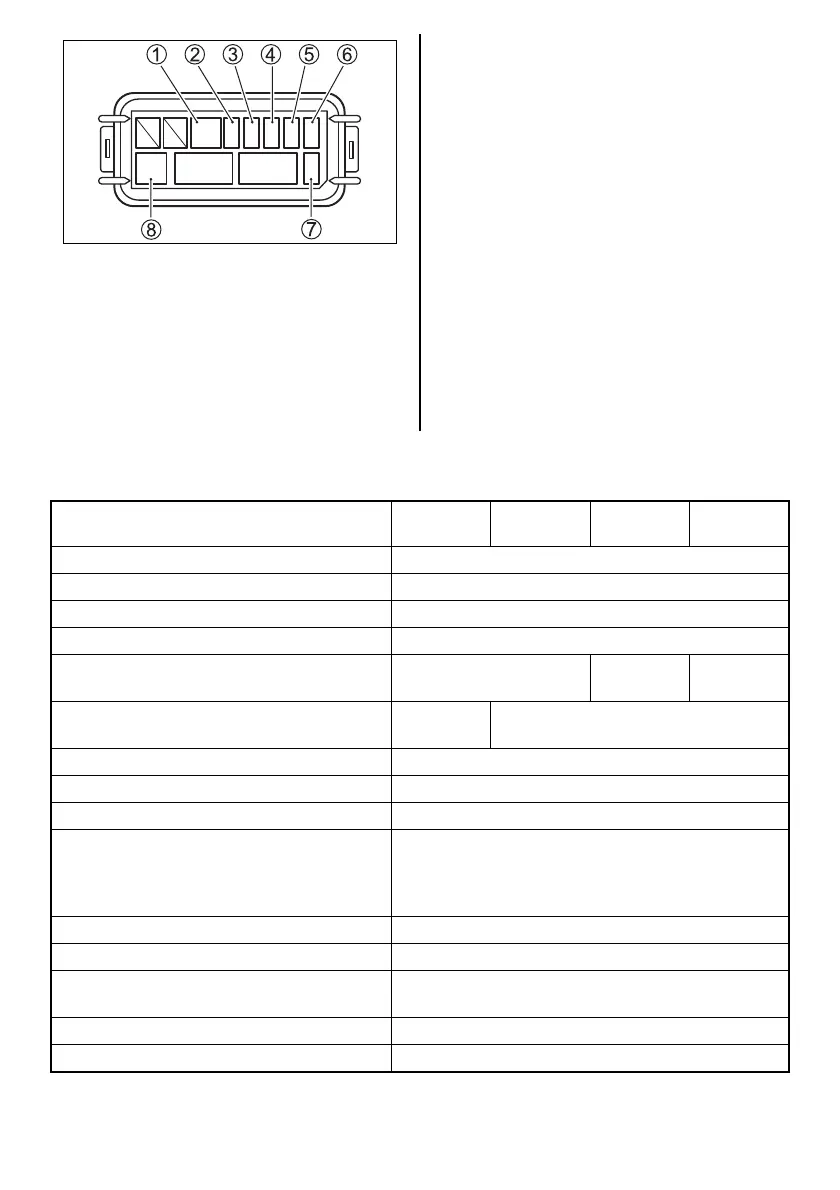

1 Main fuse: 30A
2 Spare fuse: 30A
3 Spare fuse: 15A
4 Starter motor relay fuse: 30A
5 PTT switch fuse: 15A
6 Ignition coil/Injector/ECM/IAC fuse: 30A
7 Fuel pump fuse: 15A
8 Spare fuse: 30A
15A
MAIN
RELAY
STARTER
RELAY
SPARE
15A
30A
30A
SPARE
30A
MAIN
SPARE
SPECIFICATIONS
Item
DF40A DF40AS
DF50A/
50AV
DF60A/
60AV
Engine Type 4 Stroke
Number of Cylinders 3
Bore and Stroke 72.5 × 76.0 mm (2.85 × 2.99 in.)
Piston Displacement 941 cm
3
(57.4 cu. in.)
Maximum output
29.4 kW (40PS)
36.8 kW
(50PS)
44.1 kW
(60PS)
Full Throttle Operating Range
5000 – 6000
r/min. (min
–1
)
5300 – 6300
r/min. (min
–1
)
Ignition System Full-transistor
Engine Lubrication Trochoid pump pressure lubrication
Engine Oil Capacity 2.7 L (2.9/2.4 US/lmp qt)
Gear Oil Capacity DF40A/50A/60A model:
610 cm
3
(ml) (20.6/21.5 US/Imp oz)
DF50AV/60AV model:
1050 cm
3
(ml) (35.5/37.0 US/Imp oz)
Spark Plug NGK DCPR6E
Spark Plug Gap 0.8 – 0.9 mm (0.031 – 0.035 in.)
Valve Clearance (Lash) IN. : 0.18 – 0.22 mm (0.007 – 0.009 in.)
EX.: 0.28 – 0.32 mm (0.011 – 0.013 in.)
Fuel Type Alcohol-free unleaded gasoline
Minimum Fuel Octane Rating 91 (Research method)

Suzuki DF40A Specifications

General

Engine Type	4-Stroke
Displacement	941 cc
Max Output	29.4 kW (40 PS)
Full Throttle Operating Range	5000 - 6000 RPM
Steering	Remote
Starting System	Electric
No. of Cylinders	3
Alternator	12V 19A
Engine Mounting	Shear Mount
Trim Method	Power Trim and Tilt
Gear Ratio	2.27:1
Exhaust	Through Prop Hub Exhaust
Cylinders	3
Gear Shift	F-N-R
Shaft Length	L: 508 mm, X: 635 mm
Alternator Output	12V 19A
Fuel System	Sequential Electronic Fuel Injection
Ignition System	Fully transistorized ignition
Oil Pan Capacity	2.7 L
