Suzuki Jimny - Drive Belt; Engine Oil and Filter

6-23
INSPECTION AND MAINTENANCE
78RB1-01E

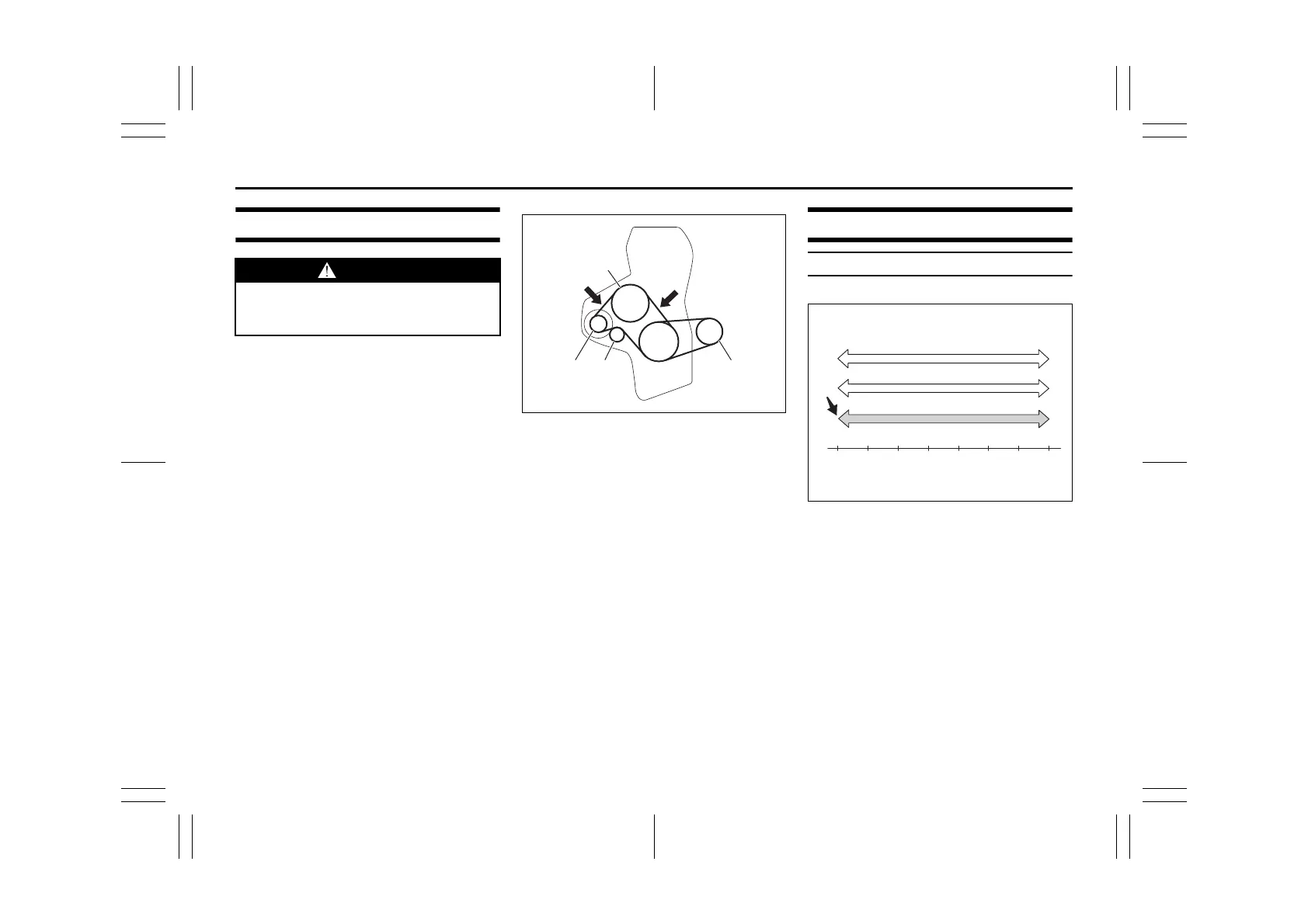

Drive belt
Check that the drive belt tension is correct
while the engine is stopped. If the belt is
too loose, insufficient battery charging,
engine overheating, poor air conditioning,
or excessive belt wear can result. When
you push the belt with your thumb midpoint
between the pulleys, there should be a
deflection according to the following chart.
The belts should also be examined to
ensure that they are not damaged.
If you need to replace or adjust the belt
have it done by a SUZUKI dealer.
78RB07001
Drive belt deflection (100 N (10 kg, 22
lbs) press)
(a) New:
4.8 - 5.9 mm (0.19 - 0.23 in.)
Readjustment:
6.2 - 7.1 mm (0.24 - 0.28 in.)
(b) New:
3.2 - 4.1 mm (0.13 - 0.16 in.)
Readjustment:
4.4 - 5.0 mm (0.17 - 0.20 in.)
Engine oil and filter
Specified oil
Models for EU countries and Israel
78RB07002
(1) Preferred
Check that the engine oil you use comes
under the quality classification as listed
below:
• ACEA A1/B1, A3/B3, A3/B4, A5/B5
• API SL, SM, SN
• ILSAC GF-3, GF-4, GF-5
Select the appropriate oil viscosity accord-
ing to the above chart.
WARNING
When the engine is running, keep
hands, hair, clothing, tools, etc. away
from the moving fan and drive belts.
(1) Water pump (2) Generator
(3) Idler pulley
(4) Air conditioner compressor
(2)
(b)
(1)
(a)
(4)
(3)
0W-16
C
F
o
o
-30
-22
-20
-4
-10
14 32 50 68 86 104
010203040
(1)
5W-30
0W-20
