6-30
INSPECTION AND MAINTENANCE
78RB1-01E

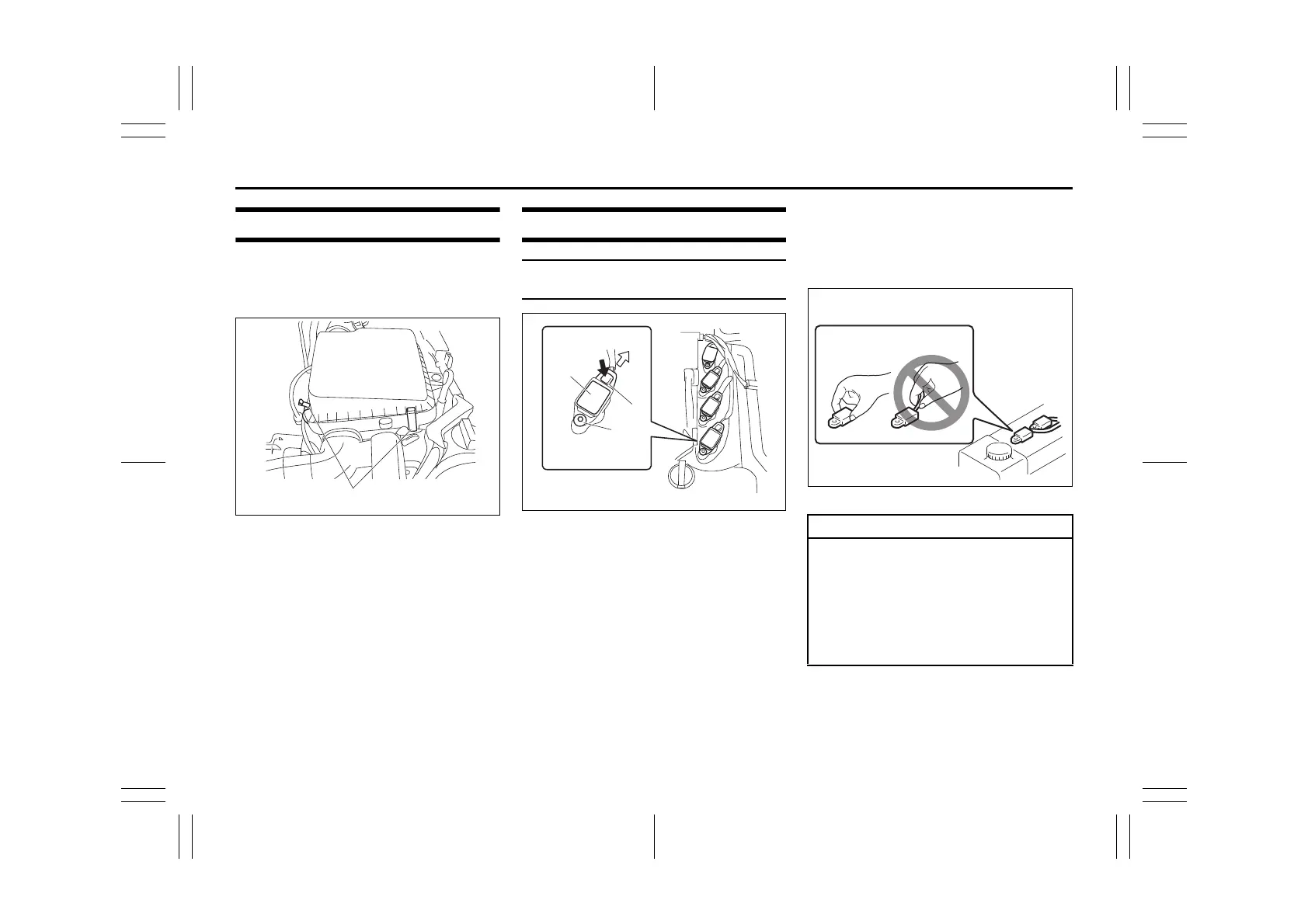

Air cleaner
If the air cleaner is clogged with dust, there
will be greater intake resistance, resulting
in decreased power output and increased
fuel consumption.
78RB07044
1) Unclamp the clamps (1).
2) Hold up the air cleaner upper case.
3) Remove the element from the air
cleaner case. If it appears to be dirty,
clean or replace it with a new one.
4) If the element is installed on the air
cleaner case, confirm the mark of
“FRONT” on the element and fit the
boss of the element in the groove of the
front on the air cleaner case.
5) Clamp the clamps securely.
Spark plugs
Spark plug replacement and
inspection
78RB07006
To access the spark plug:
1) Disconnect the coupler (1) while push-
ing the release lever.
2) Remove the bolt (2).
3) Pull out the ignition coil (3) straight.
NOTE:
During installation, check that the wires,
couplers, sealing rubber of air cleaner
chassis and washers, are correctly
returned in place.
78K179
(1)
NOTICE
• When pulling out the ignition coils,
do not pull on the cable. Pulling on
the cable can damage it.
• When servicing the iridium/plati-
num spark plugs (slender center
electrode type plugs), do not touch
the center electrode, as it is easy to
be damaged.
