6-45
INSPECTION AND MAINTENANCE
78RB1-01E
81A283

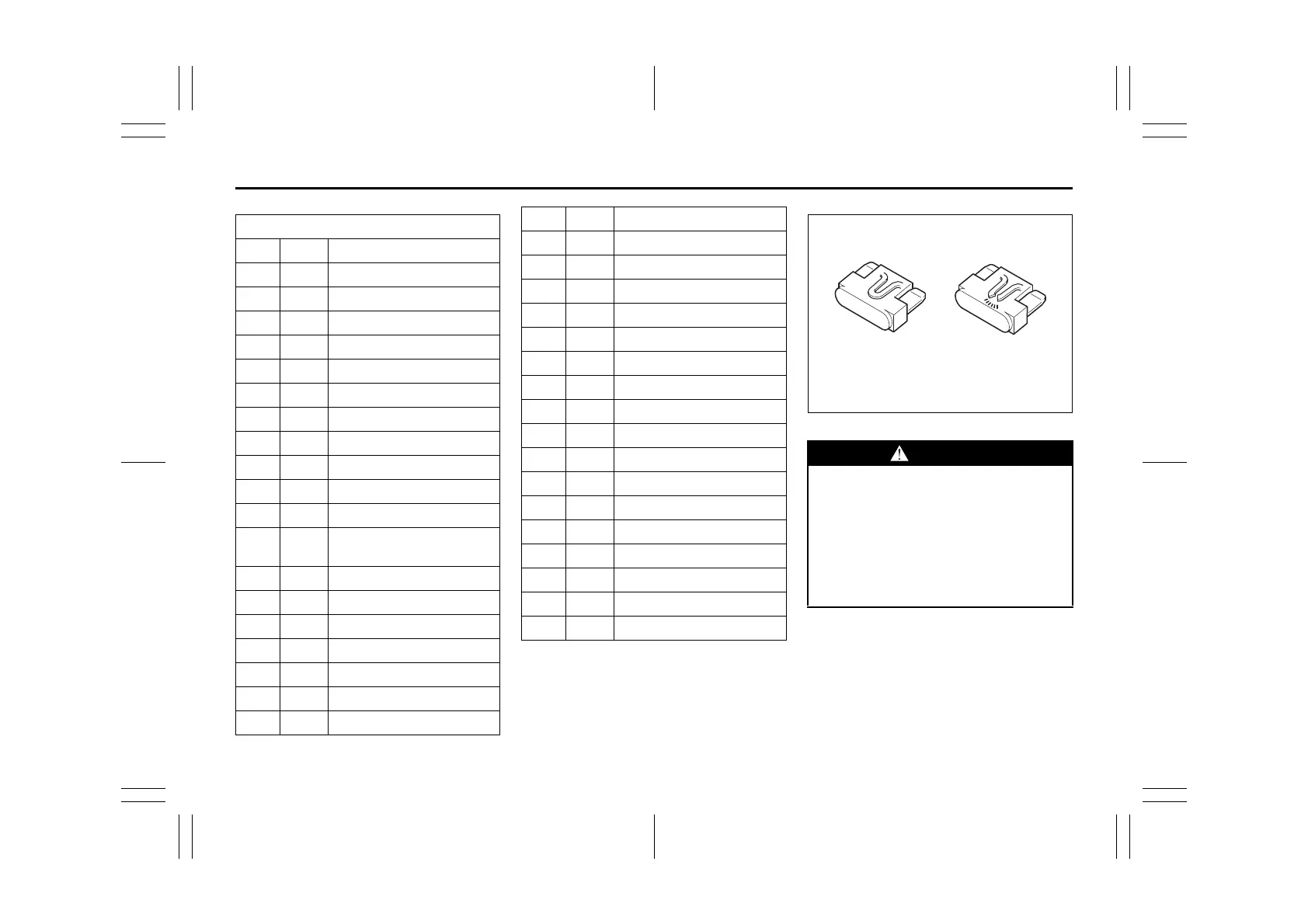

PRIMARY FUSE
(1)
30 A
Power window
(2)
10 A
Meter
(3)
15 A
Engine Control Module
(4)
5 A
Ignition-1 signal 2
(5) 20 A Blank
(6) – Blank
(7) – Blank
(8)
20 A
Door lock
(9)
15 A
Steering lock
(10)
10 A
Hazard
(11) – Blank
(12)
10 A
Rear fog lamp
(13)
5 A
ABS/ESP
®
control mod-
ule
(14)
15 A
Seat heater
(15)
5 A
Ignition-1 signal 3
(16)
10 A
Dome light-2
(17)
5 A
Dome light
(18)
15 A
Radio
(19)
5 A
CONT
(20)
5 A
Key 2
(21)
20 A
Power window timer
(22)
5 A
Key
(23)
15 A
Horn
(24)
5 A
Tail light (Left)
(25)
10 A
Tail light
(26)
10 A
Airbag
(27)
10 A
Ignition-1 signal
(28)
10 A
Back-up light
(29)
5 A
ACC-3
(30)
20 A
Rear defogger
(31)
10 A
Heated mirror
(32)
15 A
ACC-2
(33)
5 A
ACC
(34)
10 A
Rear wiper
(35)
5 A
Ignition-2 signal
(36)
15 A
Washer
(37)
25 A
Front wiper
(38)
10 A
Stop light
WARNING
Always replace a blown fuse with a
fuse of the correct amperage. Never
use a substitute such as aluminum
foil or wire to replace a blown fuse. If
you replace a fuse and the new one
blows in a short period of time, you
may have a major electrical problem.
Have your vehicle inspected immedi-
ately by a SUZUKI dealer.
To Next Page
