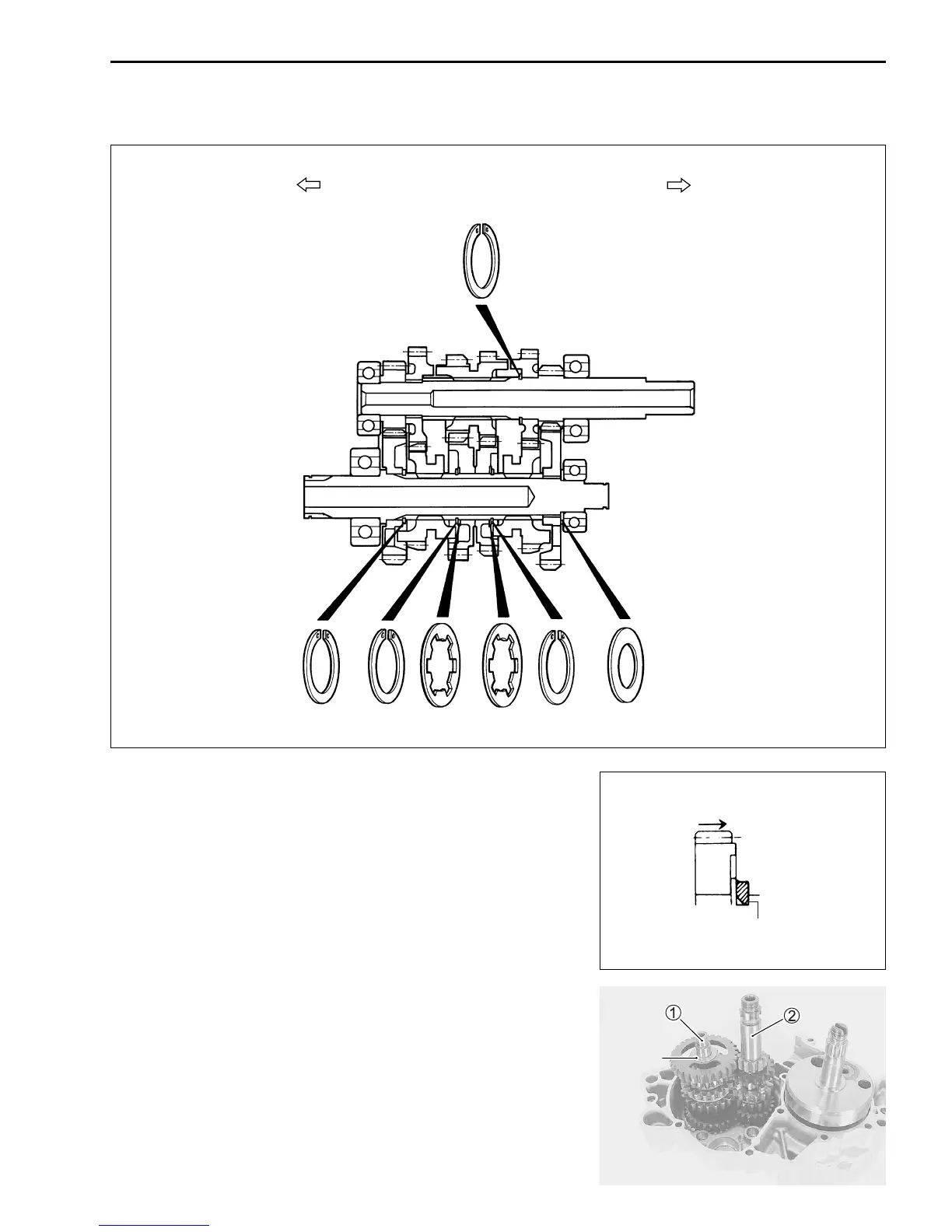

TRANSMISSION AND CRANKSHAFT 10-9
TRANSMISSION REASSEMBLY
NOTE:
* Seat the snap ring in the groove and locate its end as shown in
the illustration.
* Replace the removed snap ring with a new one.
• Apply transmission oil to the following parts: driveshaft, coun-
tershaft, transmission gears, bearings, gearshift forks, gear-
shift shafts, gearshift cam.
• Reassemble the driveshaft 1 and countershaft 2 with gears
installed.
Left Right
Thrust
Sharp edge
W
W
asher
asher
Washer

Suzuki RM85 Specifications

General

Engine Type	2-stroke, liquid-cooled, single cylinder
Displacement	84.7cc
Bore x Stroke	48.0 mm x 46.8 mm
Ignition	CDI
Transmission	6-speed constant mesh
Final Drive	Chain
Front Brakes	Single hydraulic disc
Rear Brakes	Single hydraulic disc
Compression Ratio	9.5:1
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Front Tire	70/100-17
Rear Tire	90/100-14
Overall Width	765 mm
Overall Height	1, 110 mm
Wheelbase	1, 240 mm (48.8 in.)
Curb Weight	73 kg (161 lbs.)
Fuel Tank Capacity	5.5 L
