FUEL SYSTEM 11-3
CARBURETOR

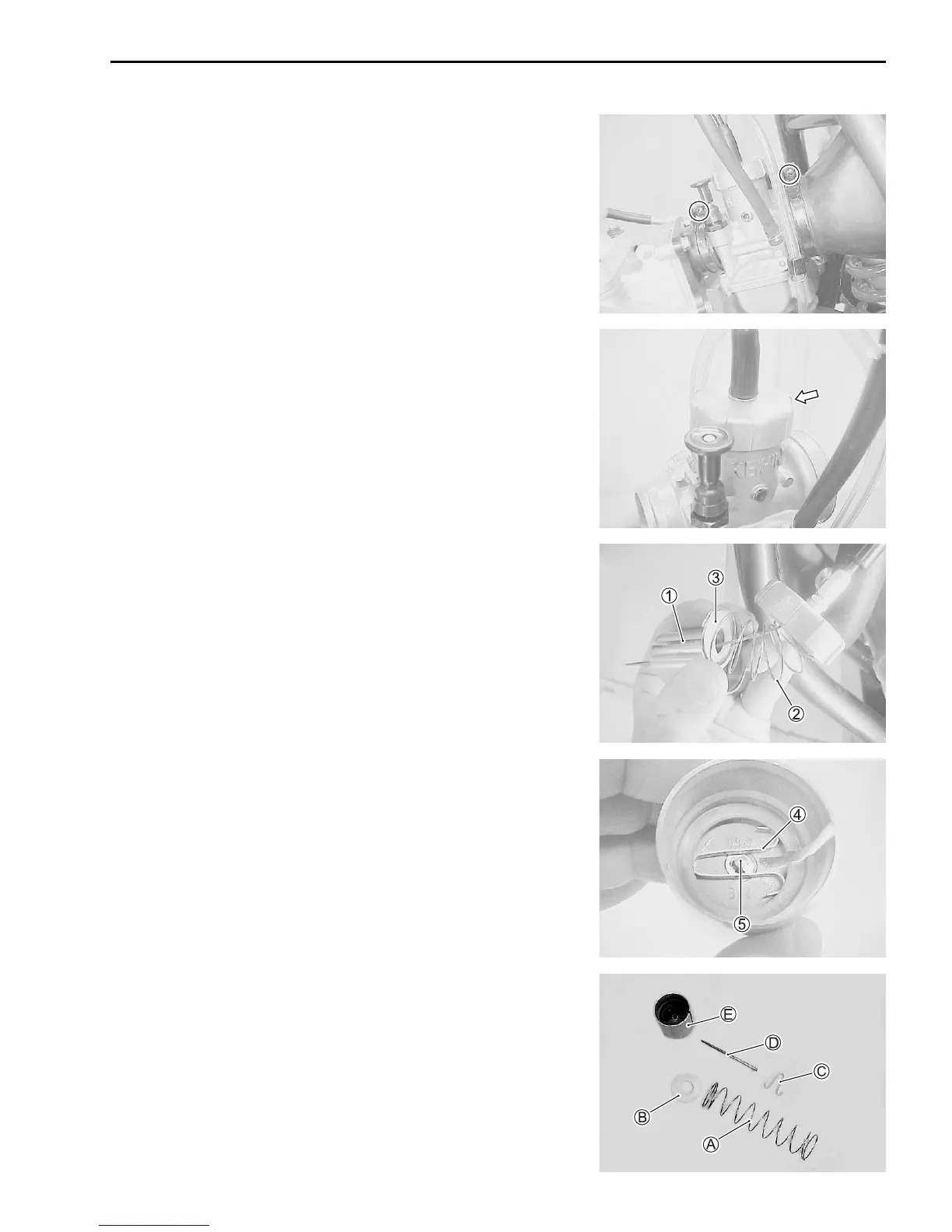

REMOVAL AND DISASSEMBLY
• Remove the seat and fuel tank. (5-2)
• Turn the fuel valve lever to “OFF”.
• Disconnect the fuel hose.
• Loosen the carburetor clamp screws and remove the carbure-
tor.
• Remove the carburetor top cap and throttle valve.
• Compress the spring 2 with collar 3 and disconnect the
throttle cable 1 from the throttle valve.
• Remove the spring 4 and jet needle 5 from the throttle
valve.
• Throttle valve spring A
• Throttle valve collar B
•Spring C
• Jet needle D
• Throttle valve E

Suzuki RM85 Specifications

General

Engine Type	2-stroke, liquid-cooled, single cylinder
Displacement	84.7cc
Bore x Stroke	48.0 mm x 46.8 mm
Ignition	CDI
Transmission	6-speed constant mesh
Final Drive	Chain
Front Brakes	Single hydraulic disc
Rear Brakes	Single hydraulic disc
Compression Ratio	9.5:1
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Front Tire	70/100-17
Rear Tire	90/100-14
Overall Width	765 mm
Overall Height	1, 110 mm
Wheelbase	1, 240 mm (48.8 in.)
Curb Weight	73 kg (161 lbs.)
Fuel Tank Capacity	5.5 L
