INSTRUMENT PANEL
When the ignition switch is turned
to the “ON” position, the speed-
ometer and tachometer needles
moves to the full scale position
and return to the home position.
LCD displays all segments for 3
seconds when the ignition switch
is turned to the “ON” position to
confirm display function.
If the speedometer and tachome-
ter needle does not point to zero,
follow the procedure below to
reset the speedometer and
tachometer.
1. Press the ADJ button B and
turn on the ignition switch.
2. Press and hold the ADJ button
B for 3 – 5 seconds.
3. Release the ADJ button. Press
the ADJ button twice within 1
second.
NOTE: Reset procedure, from
step 1 to step 3, should be per-
formed within 10 seconds.

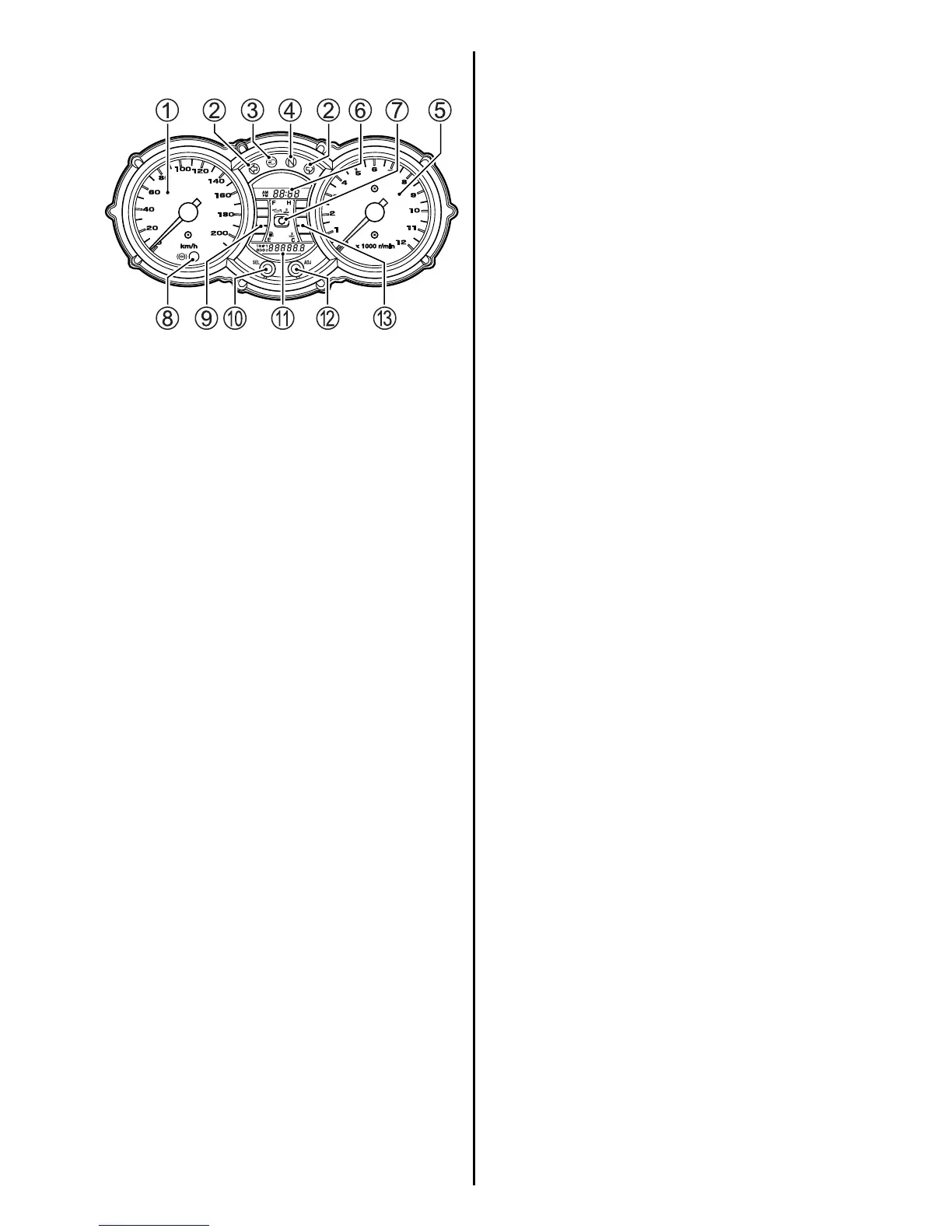

Speedometer 1
The speedometer indicates the
road speed in miles per hour and/
or kilometers per hour.
Turn Signal Indicator Light
“” 2
When the turn signals are being
operated either to the right or to
the left, the indicator will flash at
the same time.
NOTE: If a turn signal light is not
operating properly due to bulb fila-
ment or circuit failure, the indica-
tor light flickers more quickly to
notify the rider of the existence of
a trouble.
High Beam Indicator Light “”
3
This blue indicator light will be lit
when the headlight high beam is
turned on.
Neutral Indicator Light “N” 4
The green light will come on when
the transmission is in neutral. The
light will go out when you shift into
any gear other than neutral.
Tachometer 5
The tachometer indicates the
engine speed in revolutions per
minute (r/min).
