3-23
REAR SUSPENSION
Spring Pre-load Adjustment

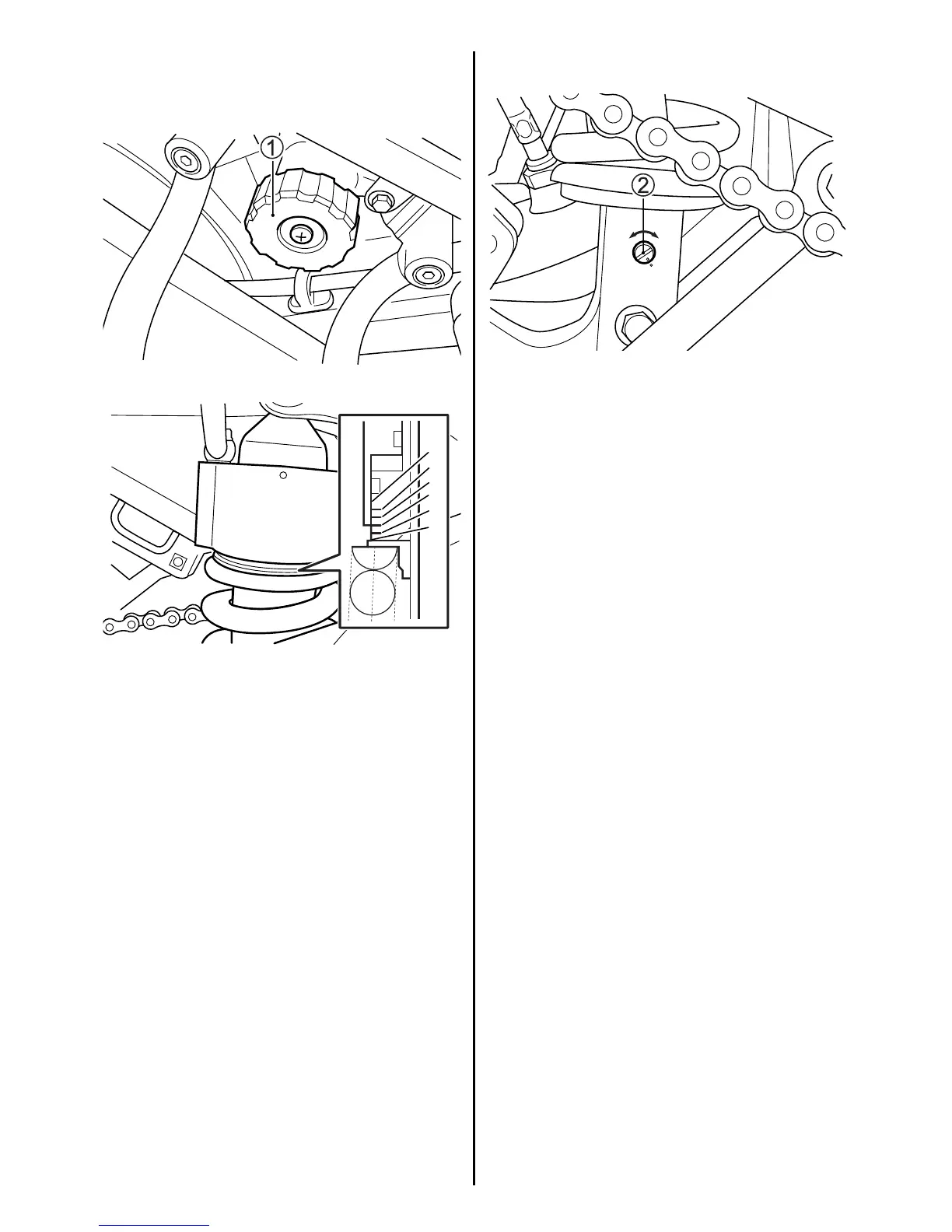

To adjust the rear suspension
spring pre-load, turn the adjuster
1. Turning the adjuster clockwise
will stiffen the spring pre-load and
turning it counterclockwise will
soften the spring pre-load. Posi-
tion 0 provides the softest spring
pre-load and position 5 provides
the stiffest. This motorcycle is
delivered from the factory with its
adjuster set on position 2.
Damping Force Adjustment
The rebound damping force
adjuster 2 is located at the bot-
tom of the rear suspension
damper unit. To adjust the damp-
ing force, set the adjuster to the
standard setting first and then
adjust it to the desired position. To
set the damping force adjuster to
the standard position:
1. Turn the adjuster clockwise
until it stops.
2. Turn the adjuster counterclock-
wise 1 turn.
Turn the adjuster clockwise to
stiffen the damping force and turn
it counterclockwise to soften the
damping force.
0
1
2
3
4
5
S
H
