Sym ORBIT III XE05W2-EU Series User Manual

16

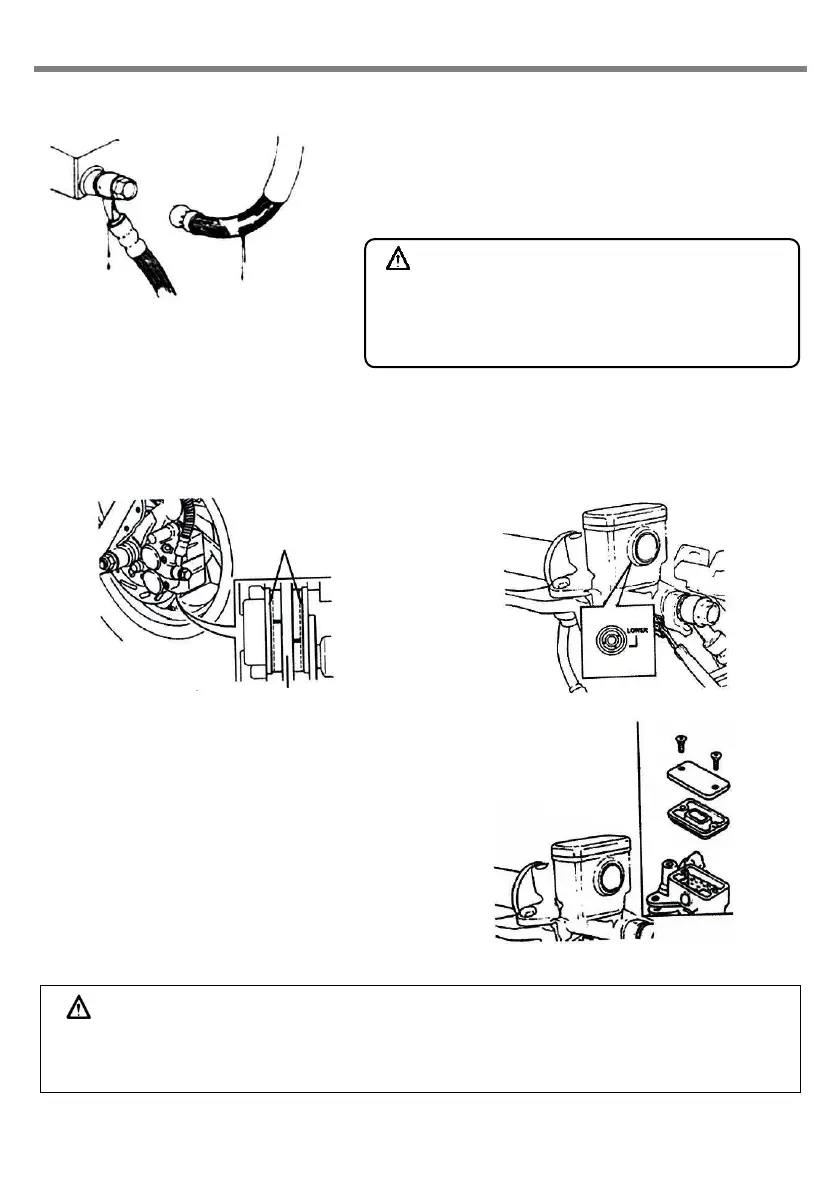

§DISK BRAKE INSPECTION§
 Visual check brake lines for leakage, or damage, check brake
lines connections for looseness using a wrench or similar tool,
and check whether steering handle vibration in driving, or any
parts’ interference may have damage the brake lines. If so,
bring your motorcycle to your SYM dealer for repairing or
service.
（leak, damaged, looseness of brake line）
（Checking front brake lining）
 check the brake from behind the brake caliper.
The brake pad must be replaced with new
lining when the brake pad wear limit reaches
the brake disk.
（Checking oil quantity in brake oil reservoir）
 Park the motorcycle on a lever ground, and
check if fluid lever is under the “LOWER” mark.
Recommended Brake Fluid: WELL RUN
BRAKE OIL (DOT 3).
（Replenishment of front wheel brake fluid）
1.Loosen the screws and remove the master cylinder
cover.
2.Wipe clean foreign materials, dirt around the reservoir,
being careful not to let foreign materials fall into the
reservoir.
3. Remove the diaphragm plate and the diaphragm.
4. Add brake fluid to upper lever.
5.Install the diaphragm plate and the diaphragm, and install
the master cylinder cover.
5. please note the diaphragm direction, and do not let
foreign materials fall into the reservoir. And tighten the
master cylinder cover securely.
CAUTION:
 TO prevent chemical reaction, please do not use brake fluids other than those recommended.
 Do not fill above the upper limit when adding brake fluid and avoid dropping on painting or plastic
components to prevent damage.
CAUTION:
 Please drive your motorcycle on a dry road surface
slowly and operate front and rear brakes in order to
find out if there is any malfunction so as to ensure
the motorcycle is at optimum condition and safe
ride.
Brake disk
Brake caliper
Brake pad wear
limit grooves
Screw
Master
cylinder cover
Diaphragm
Upper
Brake fluid
