| Name plate and type key
5.2 Incorrect use
Incorrect use refers mainly to using the fan in another way to that described. The following uses are incorrect and
hazardous:
• Conveying of abrasive, explosive, combustible air or
air with solid particles.
• Operation in an explosive atmosphere
• Installation outside without weather protection
• Operation without duct system or protection grille
• Operation with the air connections closed

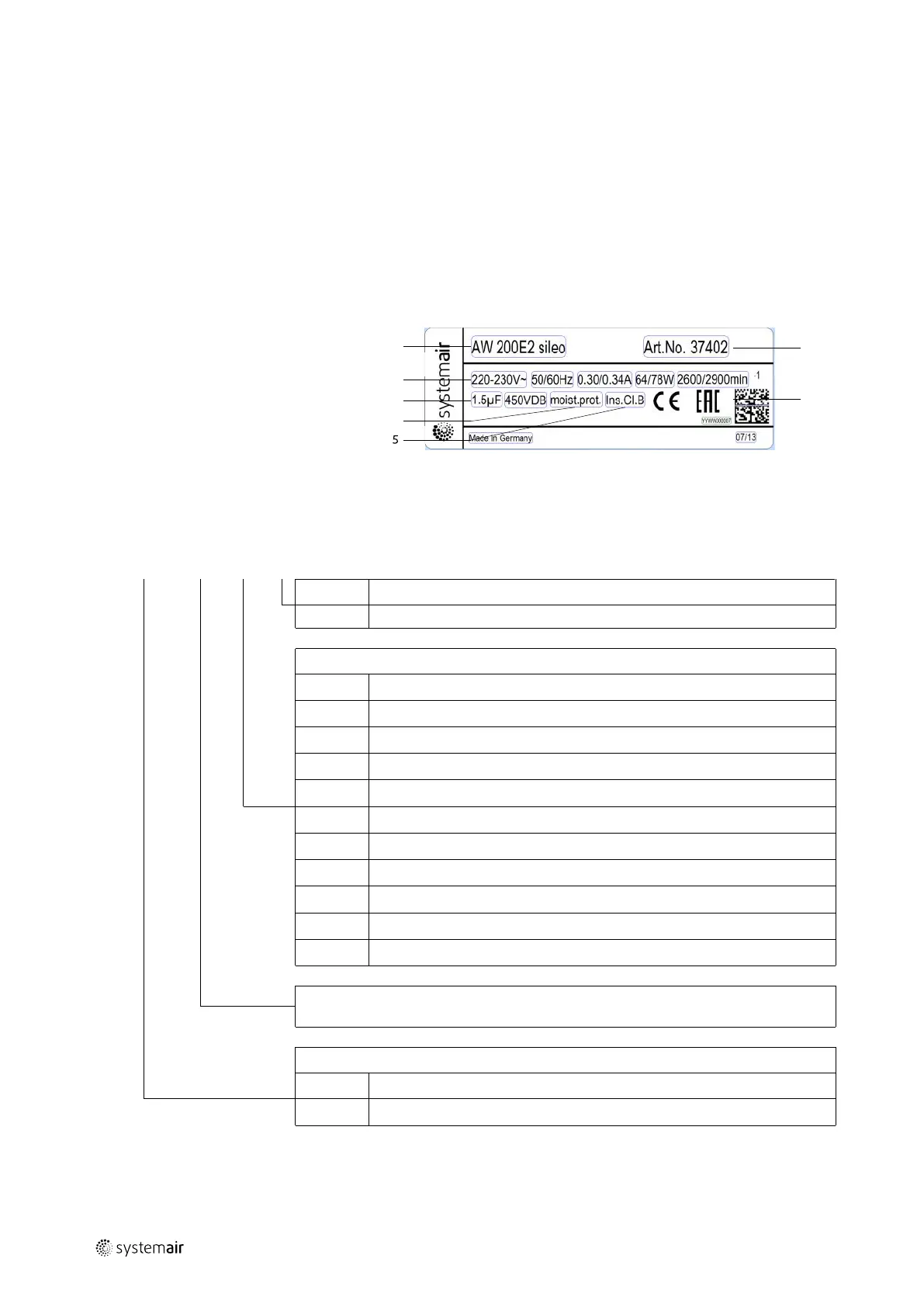

6 Name plate and type key
1
Type designation
1
2
3
6
7
4
5
2
Voltage/frequency/current/
power/fan impeller speed
3
Capacity/capacitor voltage*
4
Moisture protection*
5
Insulation class
6
Article no.
7
Certifications
* Not available with every device
Table 2 Type key
AW 200 DV L
-L
Large motor version
-
Normal motor version
Motor type
EC
Electronically commutated/1 phased or 3 phased
E2
2 poled/controllable by frequency converter/1 phased
E4
4 poled/controllable by frequency converter/1 phased
E6
6 poled/controllable by frequency converter/1 phased
DV
4 poled voltage controllable/3 phased
DS
6 poled voltage controllable/3 phased
EZ
2 poled voltage controllable/1 phased
EV
4 poled voltage controllable/1 phased
ES
6 poled voltage controllable/1 phased
D4
4 poled/controllable by frequency converter/3 phased
D6
6 poled/controllable by frequency converter/3 phased
Size
Fan type
AW
Axial fan with a wall plate
AR
Axial fan with a round casing acc. to Eurovent 1/2
| 003
