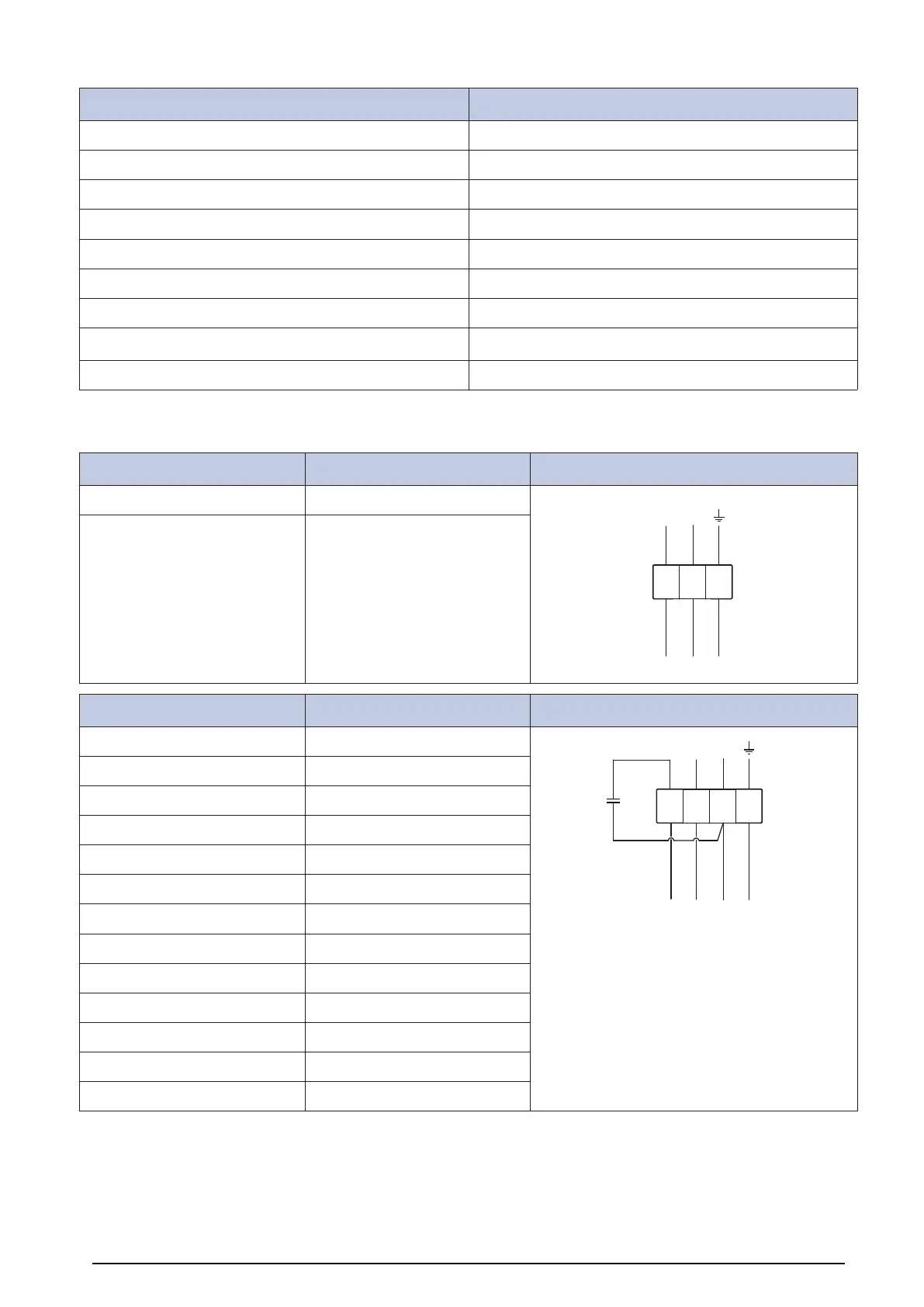

12.3 Wiring diagrams
Abbreviation in wiring diagram Cable colour
RD Red
YE Yellow
BU Blue
WH White
GN Green
BN Brown
BK Black
GR Grey
GY Green/Yellow
12.3.1 Wiring diagrams for AC fans
K fans KV fans 1–phase 230 V
K 100 M sileo KV 100 M sileo
BU BK GY
N L
K 125 M sileo KV 125 M sileo
K fans KV fans 1–phase 230 V
K 100 XL sileo KV 100 XL sileo
BN BU BK
GY
C
N L
K 125 XL sileo KV 125 XL sileo
K 150 M sileo KV 150 M sileo
K 150 XL sileo KV 150 XL sileo
K 160 M sileo KV 160 M sileo
K 160 XL sileo KV 160 XL sileo
K 200 L Sileo KV 200 L sileo
K 200 M sileo KV 200 M sileo
K 250 L Sileo KV 250 L Sileo
K 250 M sileo KV 250 M sileo
K 315 L KV 315 L sileo
K 315 M KV 315 M sileo
K 315 sileo KV 315 sileo
18
