SystemAir RS Series User Manual

Table 4 (continued)
J K L M c-c N O P
RSI 70–40 EC sileo 787 598 55.5 697 720 741 808
RSI 80–50 EC sileo 882 716 55.5 797 820 841 908
RSI 100–50 EC sileo 982 746 55.5 998 1020 1041 1108

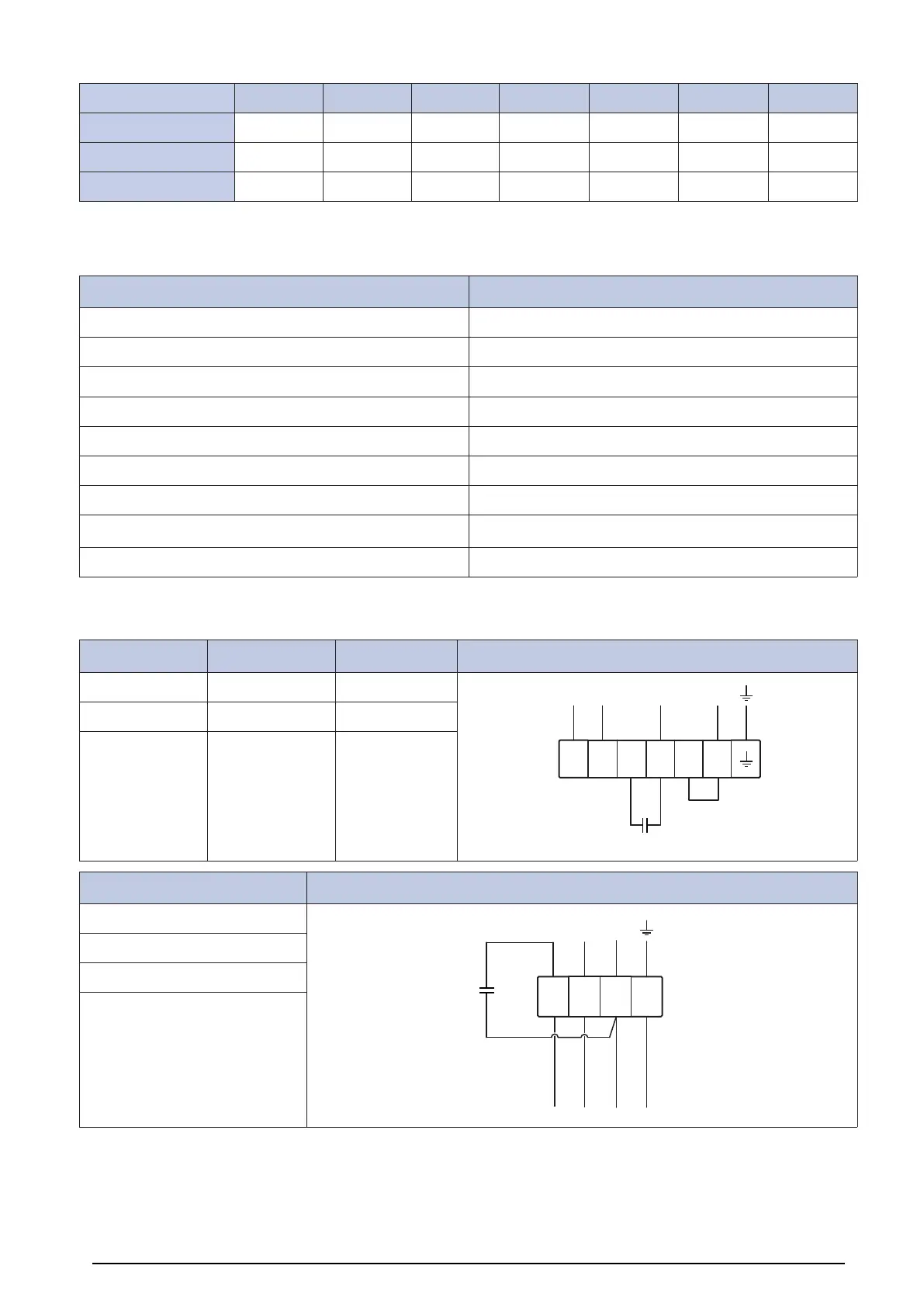

12.3 Wiring diagrams
Abbreviation in wiring diagram Cable colour
RD Red
YE Yellow
BU Blue
WH White
GN Green
BN Brown
BK Black
GR Grey
GY Green/Yellow
12.3.1 Wiring diagrams for AC fans
KE fans RS fans RSI fans 1–phase 230 V
KE 50–25–4** RS 60–35 L1 RSI 60–35 L1
C
TK
TK TK Z2 U2 Z1 U1
TK N L
KE 50–30–6** RS 60–35 M1 RSI 60–35 M1
KE 60–30–6** RS 70–40 L1 RSI 70–40 L1
RS fans 1–phase 230 V
RS 30–15
BN BU BK
GY
C
N L
RS 40–20 L
RS 40–20 M
RS 50–25
18
