4 Installation
4.1 To do before the installation
of the product
• Make sure that you have the necessary installation
accessories:
– Refer to 13 Accessory overview page 29 for an over-
view of the accessories.
– If you install the product outdoors, it is necessary to in-
stall a weather protection roof.
– To decrease vibrations transmitted from the product to
the duct system, Systemair recommends to install vi-
bration dampers, fast clamps or flexible connections.
– If you install the product with free suction or free dis-
charge, it is necessary to install a protection grille.
Make sure that the safety distance agrees with the
standard DIN EN ISO 13857 and the standard DIN
24167–1.
• Use installation material with fire resistance rating for the
installation location.
• Examine the packaging for transportation damage and re-
move the packaging from the product carefully.
• Examine the product and all components for damage.
• Make sure that the motor effect and the fan performance
agrees with the expectations at the installation location.
• Make sure that the information on the name plate and the
motor name plate agrees with the operation conditions.
• Install the product in a location where there is space for
commissioning, troubleshooting and maintenance.
• Make sure that the installation location is clean and dry,
for full safety during electrical work.
• Make sure that the installation surface has sufficient ca-
pacity to hold the weight of the product.
• Refer to the airflow direction arrows on the name plate or
on the product to install the product in the correct position.
• Make sure that all cable glands are tight against the ca-
bles to prevent leaks.
4.2 To Install the product
Note:
The arrow on the name plate shows the direction of the
airflow.
Note:
All fans can be installed in any angle.

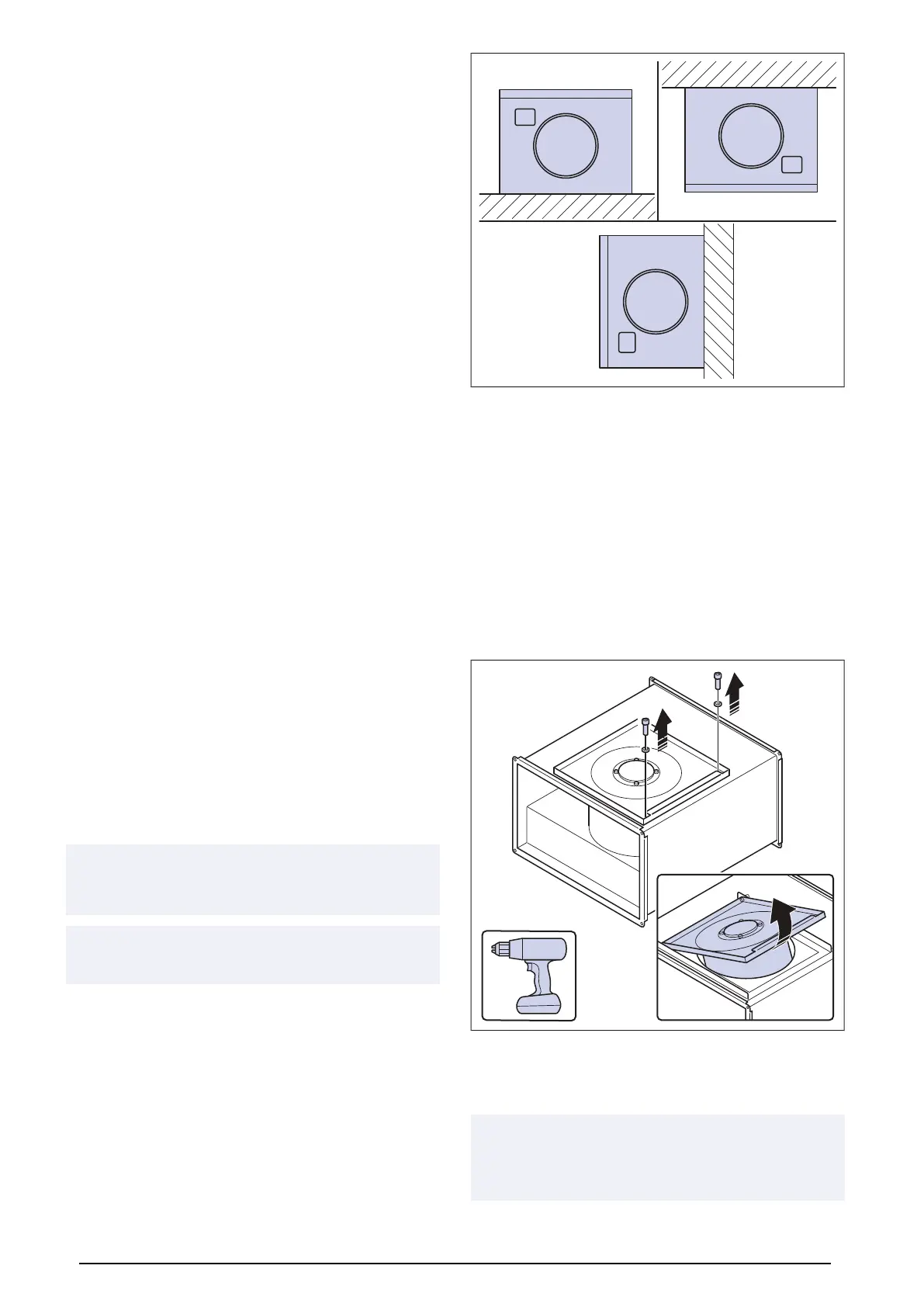

1 Install the product in any angle, using applicable installa-
tion equipment. Obey these steps when applicable:
• If the product is installed in the ceiling, use pendulum
bars, wires or other applicable installation equipment.
Pendulum bars, wires and nuts or other installation
equipment are not supplied by Systemair.
• If the product is installed on the floor, add insulation
below the product to prevent unwanted noise and
vibrations.
• If the product is installed near a wall, keep a distance
of minimum 400 mm from the product to the wall to
prevent unwanted vibrations.
2 To open the service lid and access the motor or the con-
nection box, remove the 2 screws on the top of the serv-
ice lid.
4.2.1 To connect the ducts to the
product
Note:
Systemair recommends to use flexible connections to at-
tach the duct to the product. Flexible connections are
available as accessories.
5
