Installation |
19
9.2.3 Assembly of Topvex SC60, Topvex SC70

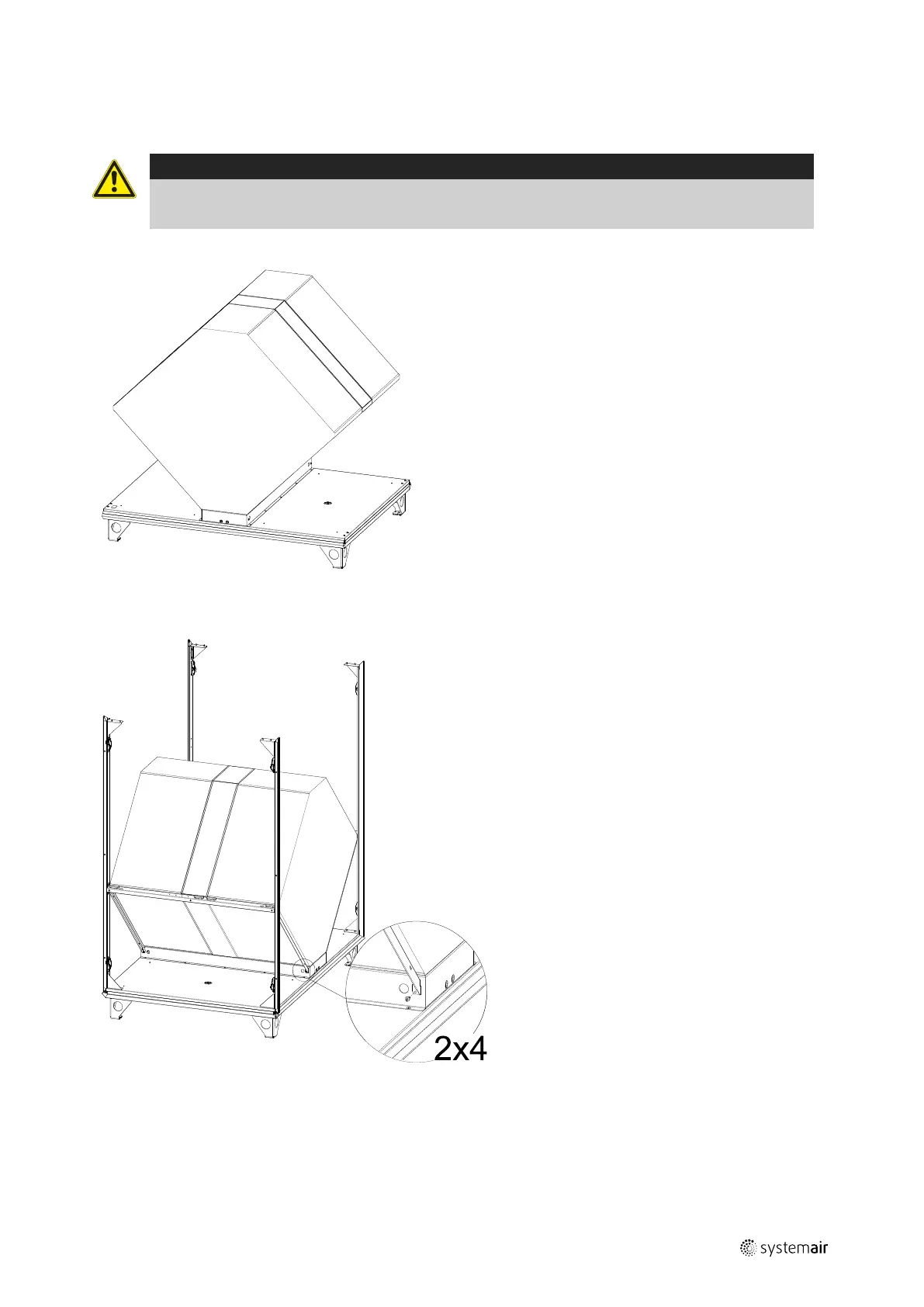

Attach the heat exchanger
Caution
• Handle the heat exchanger with care.
• The heat exchanger is heavy.
1. Carefully place the heat exchanger and bypass on the bottom plate.
Fasten the beams
2. Fasten the beams with the 8 screws on the reinforcement struts.
214958 | A007
