3. Install the panel

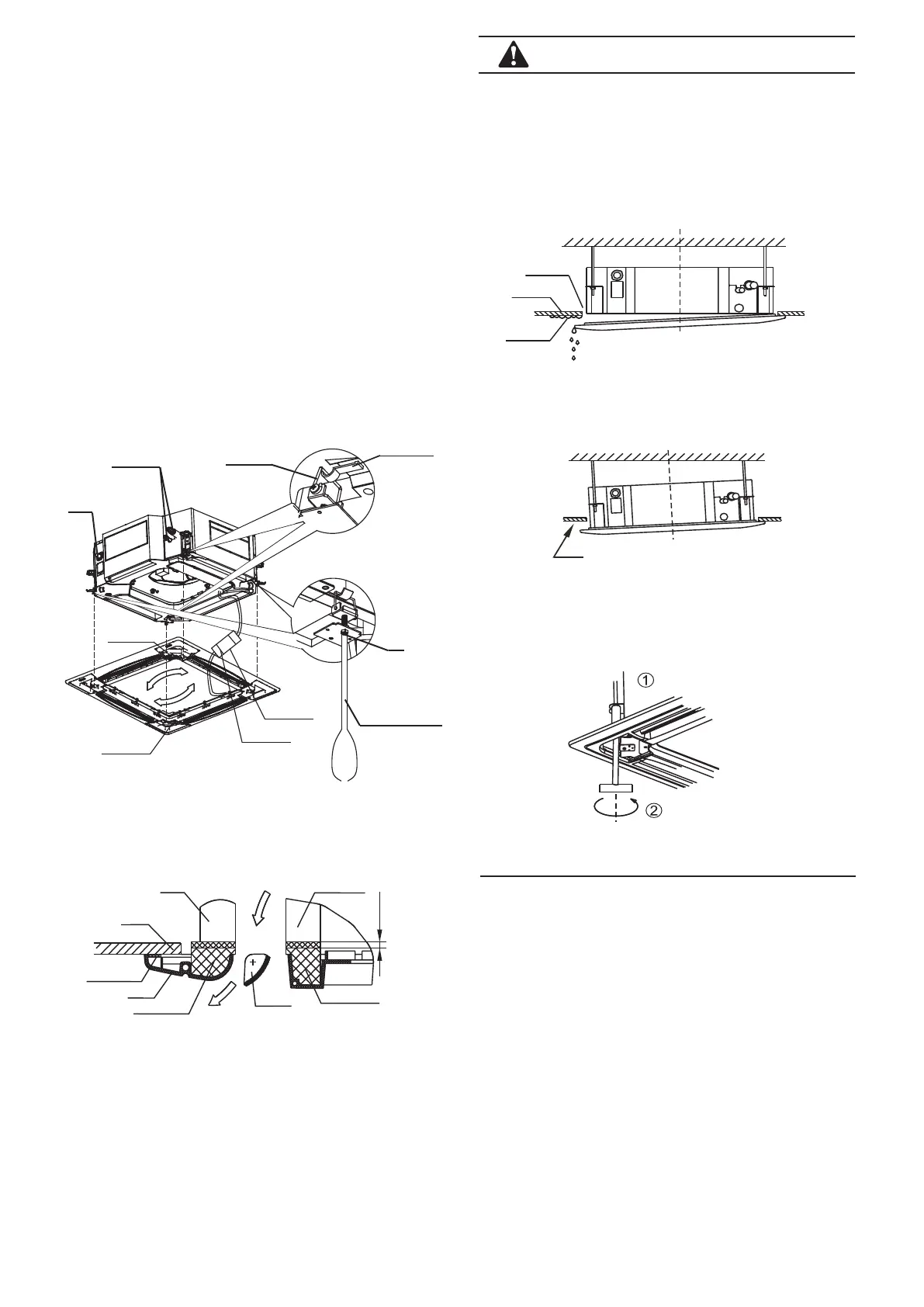

1) The part of the panel marked “PIPING SIDE” and “DRAIN SIDE” must
be aligned with the piping outlet and drainpipe outlet from the main body.
2) Fix hooks of the panel at the swing motor and its opposite sides to
the hooks of the corresponding water receiver. (Refer to Fig.4-15 a)
Then hang the other two panel hooks onto the corresponding
hangers of the body(Refer to Fig.4-15 b). Use the protecting bush to
protect the motor line after connecting.
3) Insert the conducting wire of the sway motor into the conducting
slot inside of panel. Then, connect the sway motor terminals’ holder
to the terminal in the main electric control box.
4) Adjust the four panel hook screws to keep the panel horizontal,
and evenly screw them into the ceiling. (Refer to Fig.4-15 c)
5) Regulate the panel in the direction of the arrow in Fig 4-14 slightly
to fit the panel's center to the center of the ceiling's opening.
Guarantee that the hooks of the four corners are fixed well.
6) Keep fastening the screws under the panel hooks until the
thickness of the sponge between the body and the panel's outlet has
been reduced to about 4-6mm. The edge of the panel should touch
CAUTION
Sway motor
Sway motor
Drain pipe joint
Water receiver hook
Panel hook
Piping joint
panel sponge
body
Ceiling
panel
panel foam1
air out
Fan
panel foam 2
4
-
6mm
outlet foam
Fig.4-16
Fig.4-15
1) Insert the sealant plastic cap in the sway motor in the notch of
the water outflow pipe seal board.
2) Do not coil the wiring of the swing motor into the seal sponge.
3) Malfunction described in Fig.4-17 can be caused by
inappropriate tightness the screw.
Leakage
Ceiling
Pollution
Water condensation
Loosen upper nut
Adjust lower nut
Gap not allowed
Fig.4-17
Fig.4-18
Fig.4-19
4) If the gap between the panel and ceiling still exists after
fastening the screws, the height of the indoor unit should be
modified again. (Refer to Fig.4-18)
5) You can modify the height of the indoor unit through the
openings on the panel's four corners, if the lift of the indoor unit
and the drainpipe is not influenced (refer to Fig.4-19).
4. Hang the air-in grill to the panel. Then, connect the lead
terminator of the swing motor and that of the control box
with the corresponding terminators on the body.
5. Re-install the air-in grill in reverse order.
6. Re-install the installation cover.
1) Fasten the rope of the installation cover on the bolt of the
installation cover. (Refer to Fig.4-20)
2) Press the installation cover into the panel lightly. (Refer to
fig.4-21)
d
a
b
c
Hook-bolt
Cross-screwdriver
Protecting bush
Tightening band
