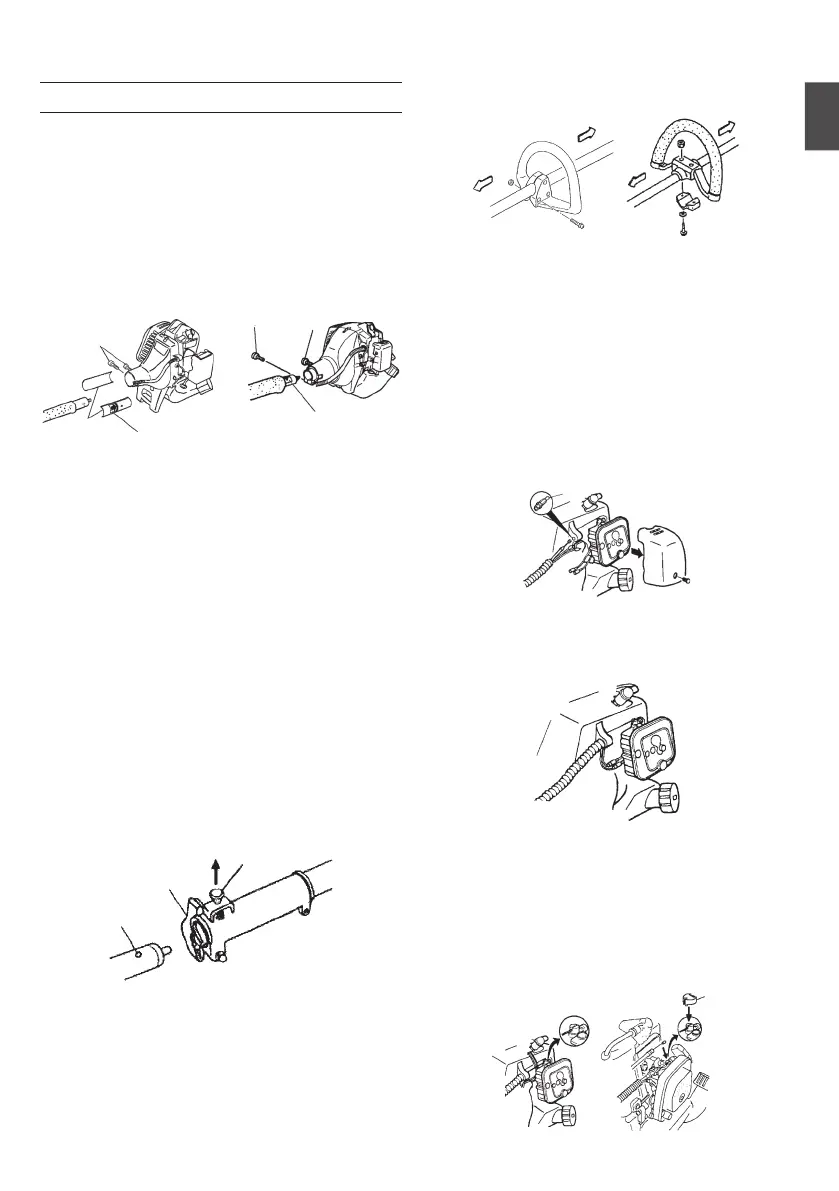

ASSEMBLY PROCEDURES
Drive shaft to engine (Fig. 1)
Loosen tube locking bolt (1) about ten turns so that
the bolt point will not obstruct drive shaft tube to be
inserted. When inserting drive shaft tube, hold the
tube locking bolt outward preventing inside fi tting
from obstructing as well.
Insert the drive shaft into the clutch case of the
engine properly until the marked position (2) on the
drive shaft tube meets the clutch case.
4
2
3
3
1
2
Fig. 1
NOTE
○ For TBC-225C/225CS, attach the pipe holders
(4) on drive shaft tube and then insert drive shaft
into fan case properly until the marked position
(2) on the pipe holder meets the fan case.
○ When it is hard to insert drive shaft up to the
marked position on the drive shaft tube, turn
drive shaft by the cutter mounting end clockwise
or counter-clockwise. Tighten tube locking bolt
lining up the hole in the shaft tube.
Then tighten clamp bolt securely (3).
Installation of attachment
1. Assemble the attachment.
2. Make sure the lock pin (5) fi ts in the location hole
(6) of tube and that the tube will not come off .
(Fig. 2)
3. Tighten the knob nut (7) securely. (Fig. 2)
5
7
6
Fig. 2
Installation of handle (Fig. 3)
Fig. 3
Attach the handle to the drive shaft tube with the
angle towards the engine.
Adjust the location to the most comfortable position
before operation.
NOTE
If your unit has handle location label on drive
shaft tube, follow indication.
Throttle wire/stop cord
Remove air cleaner cover. (Fig. 4)
8
Fig. 4
Connect stop cords. (Fig. 5)
Fig. 5
Set outer-receiver (8) (If so provided) into wire guide
and put throttle wire through the outer-receiver.
(Fig. 4)
Connect throttle wire end to carburetor and install
swivel cap (9) (if so equipped) where is included in
tool bag, onto swivel. (Fig. 6)
9
Fig. 6
