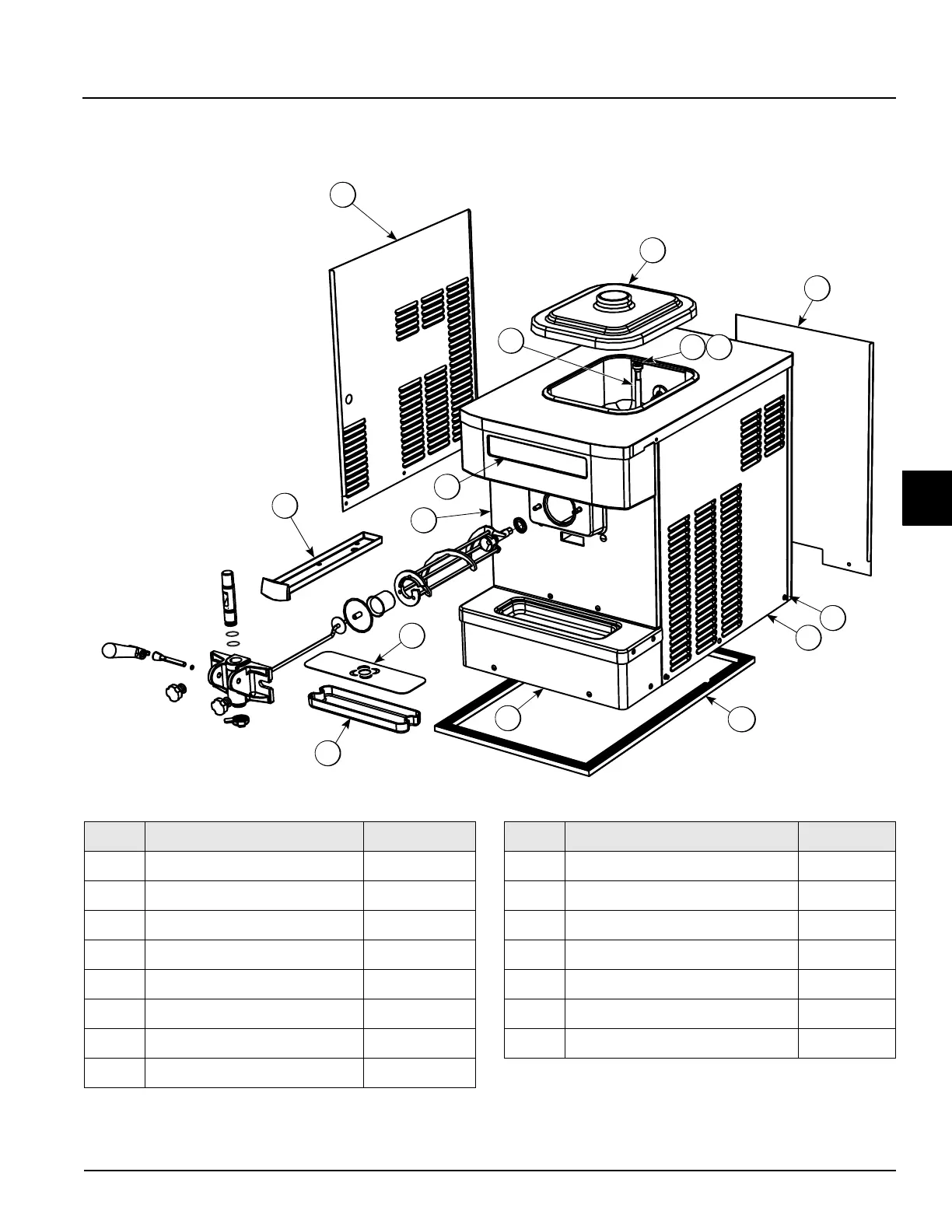

Operator Parts Identification

Model C152

Figure 4-1

14 15

Item Description Part No.

1 Pan-Drip 085295

2 Panel-Left 086378

3 Cover A.-Hopper X49633-SP

4 Tube-Feed 035819

5 Panel-Rear 086376

6 Panel-Right 086377

7 Gasket-Base Pan 086306

8 Tray-Drip 086312

Item Description Part No.

9 Shield-Splash 086379

10 Panel-Lower Front 086380

11 Panel-Front 086384

12 Trim-Corner-Rear 086375

13 Plate-Dec X85775

14 Air Orifice 022465-100

15 O-Ring-3/8 OD X.070W 016137
