OPERATOR PARTS IDENTIFICATION

4-3

085592-M

Operator Parts Identification

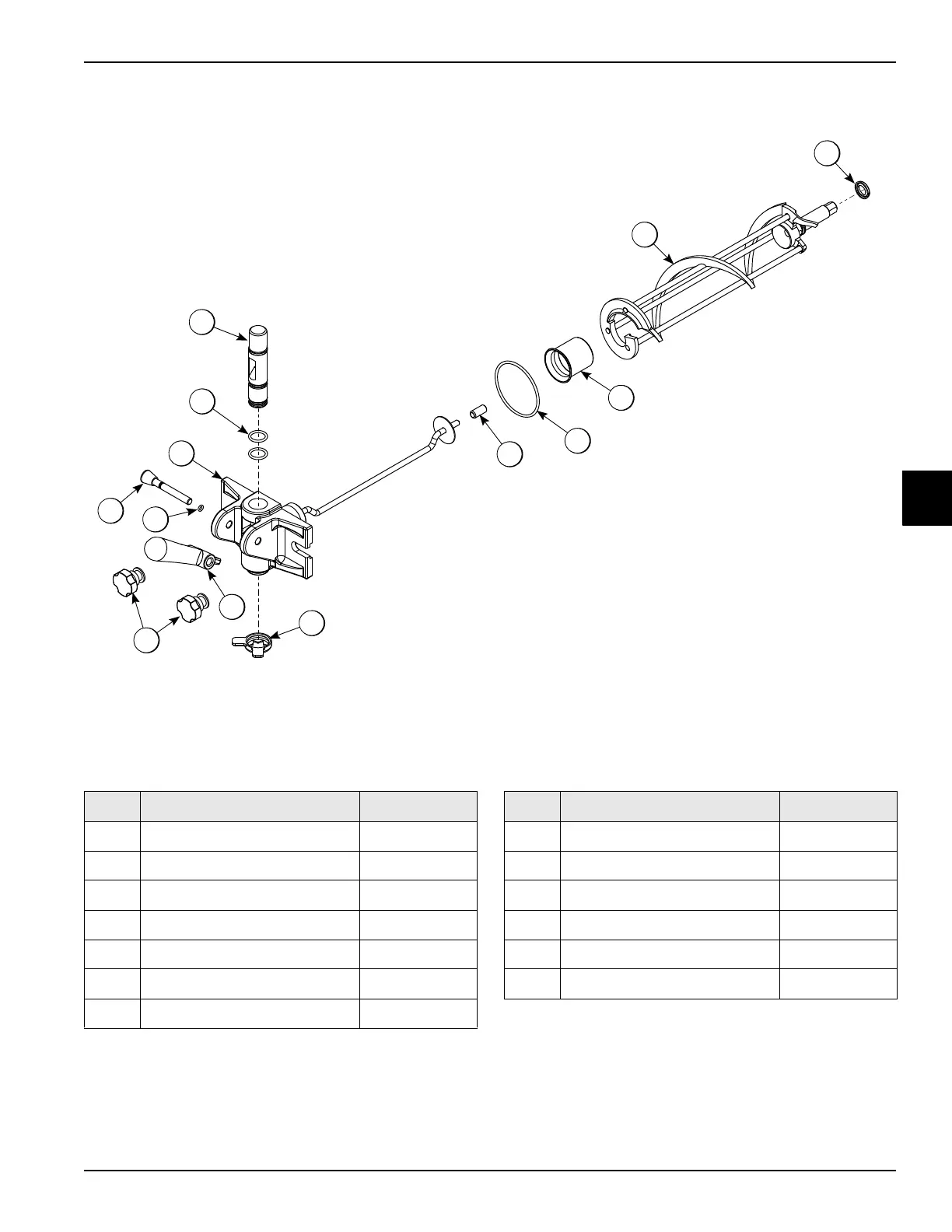

C152 Beater Door Assembly

Figure 4-3

Item Description Part No.

1 Valve-Draw 024763-SP1

2 O-Ring-7/8 OD X.103W 014402

3 Door A.-3SPT 1.5QT VALOX X86373-SER

4 Pin A.-Pivot-Short X38539

5 O-Ring-5/16 OD X.070W 016272

6 Handle-Draw 085615

7 Nut-Stud 034829-SP

Item Description Part No

8 Cap-Design 1.010"ID-6 PT. 014218

9 Bearing-Guide 014496

10 O-Ring-2-3/4 OD X .139W 019998

11 Bearing-Front 023262

12 Beater A. X24689

13 Seal-U-Cup 080534
