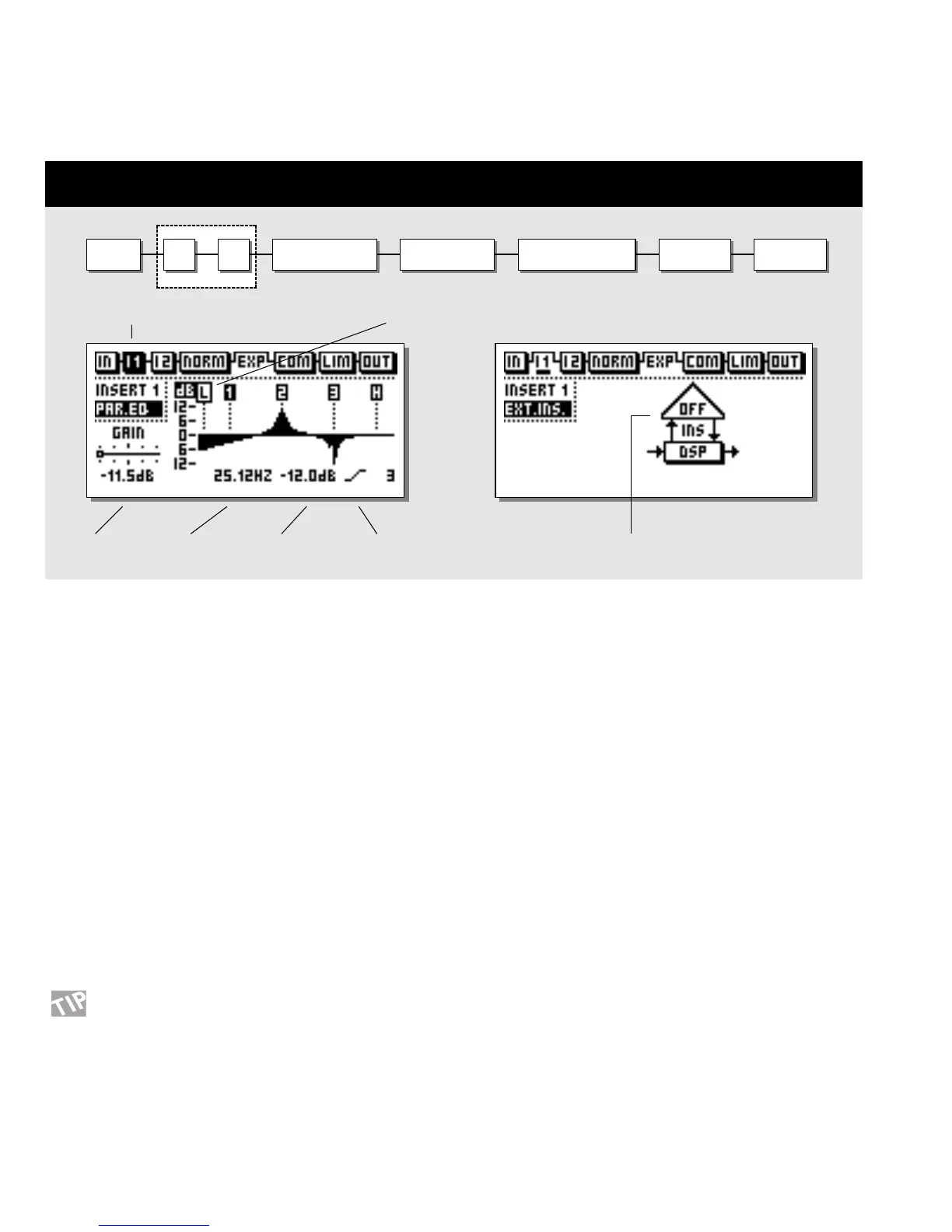

Black box indicates selected block Selected band
Frequency Gain
Bandwidth/Slope
EQ
Basic operation
Press the PARAMETER keys to select frequency/gain/
bandwidth/slope.
Turn ADJUST wheel to change values.
Press BAND keys to jump between the five bands.
EQ Ranges
Type Frequency Bandwidth/Slope
Low Shelve 19.95Hz to 5.01kHz 3, 6, 9, 12 dB/Oct
Bell-shaped filter 1 19.95Hz to 20kHz 0.1 Oct to 4.0 Oct
Bell-shaped filter 2 19.95Hz to 20kHz 0.1 Oct to 4.0 Oct
Bell-shaped filter 3 19.95Hz to 20kHz 0.1 Oct to 4.0 Oct
High Shelve 501.2Hz to 20kHz 3, 6, 9, 12dB/Oct
Gain Range for all filters and Output: +/- 12dB
EQ Bypass
Press the OK key to bypass the Insert section.
Reset all filters by pressing both BAND keys
simultaneously.
MAIN PAGE Inserts
INPUT I 2I 1 NORMALIZER EXPANDER COMPRESSOR LIMITER OUTPUT
Insert Type
Level bar
External Insert
Instead of internal processing, one of the two Insert points may be
set up for external processing. The External Insert may be Analog,
AES/EBU or S/PDIF depending on your Input choice.
Note: Asking for an External Insert is part of a preset. Enabling a
specific External Insert is part of the Global parameters. When an
Analog Insert is specified, the I/O interface levels are stored with
the preset.
If a preset containing an External Insert is called, and no such
thing is available in your current setup, the External Insert is
disabled but shown in the Insert page, until you change the Insert
configuration in the In or Out-page.
To Next Page
