Increase bed chain
speed
Bed chain forward Raise deflector Rotate chute
clockwise
Tailgate raise
Decrease bed chain
speed
Bed chain reverse Lower deflector Rotate chute
anti-clockwise
Tailgate lower
12
Do not allow anyone to ride on
the machine
Beware crushing hazard
keep clear
Hydraulic flow rate & direction
60 L/min
13.2 Gal/min
MAX
DL1109
Maximum hydraulic circuit pressure
Tractor Cable Control Panel
2.2 Safety Decals Maintenance

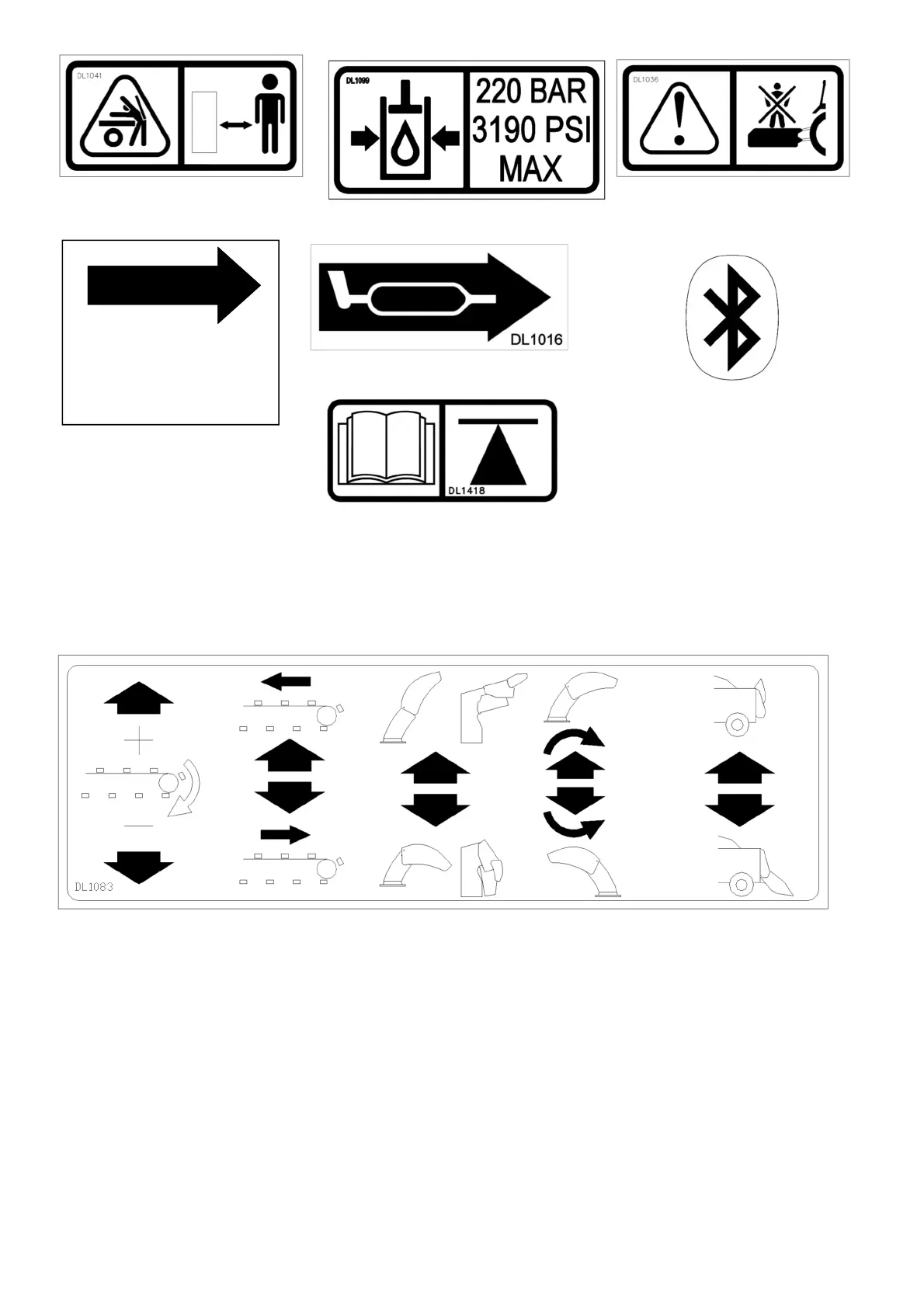

The safety signs fitted to the machine warn of hazards and form an important part of keeping the operator and by-
standers safe.
It is important that the signs are
- kept clean and visible (wash with warm water and detergent).
- replaced if missing or illegible.
When replacement parts are fitted it is important that any safety decals affixed to them are replaced.
Replacement decals are listed in the spare parts lists and can be purchased as spare parts.
Jack Information Label
Bluetooth Symbol
Lubrication point
To Next Page
