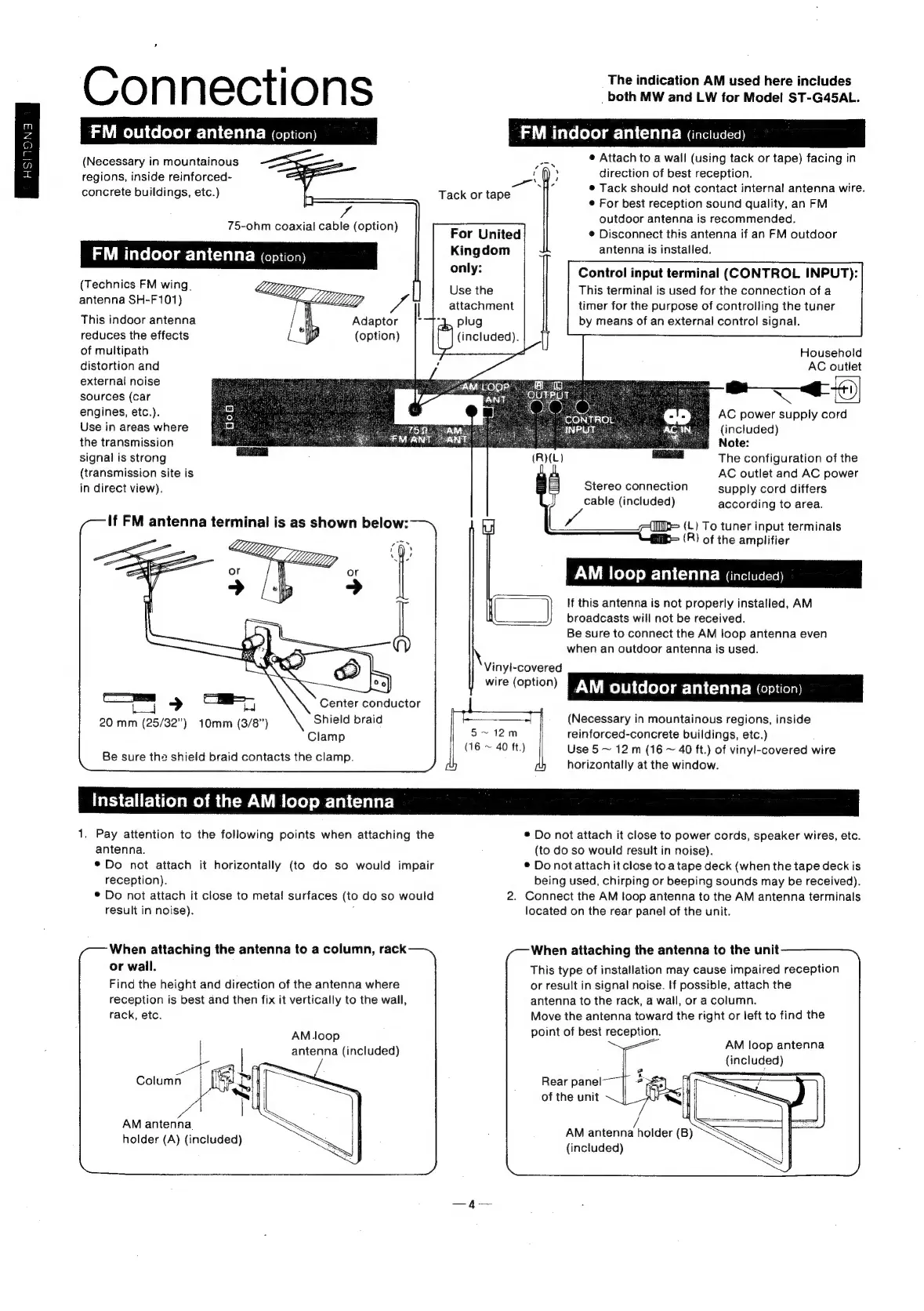

Connections
(Necessary in mountainous
regions, inside reinforced-
concrete buildings, etc.)
oo
75-ohm coaxial cable (option)
FM indoor antenna (option)
(Technics FM wing.
antenna SH-F101)
This indoor antenna
reduces the effects
of multipath
distortion and
external noise
sources (car
engines, etc.}).
Use in areas where
the transmission
signal is strong
(transmission site is
in direct view).
If FM antenna terminal is as shown below:
Center conductor
Shield braid
Clamp
20 mm (25/32”) 10mm (3/8”)
Be sure the shield braid contacts the clamp.
Installation of the AM loop antenna
Tack or tape
Use the
attachment
bea
Vinyl-covered
\
The indication AM used here includes
both MW and LW for Model ST-G45AL.
FM indoor antenna (included)
. @ Attach to a wall (using tack or tape) facing in
3 direction of best reception.
He © Tack should not contact internal antenna wire.
© For best reception sound quality, an FM
outdoor antenna is recommended.
For United © Disconnect this antenna if an FM outdoor
Kingdom antenna is installed.
only: Control input terminal (CONTROL INPUT):
This terminal is used for the connection of a
timer for the purpose of controlling the tuner
by means of an external control signal.
Household
AC outlet
<6)
AC power supply cord
(included)
Note:
The configuration of the
AC outlet and AC power
supply cord differs
according to area.
(R}(L)
Stereo connection
cable (included)
(L) To tuner input terminals
(R) of the amplifier
AM loop antenna (inciuded)
If this antenna is not properly installed, AM
broadcasts will not be received.
Be sure to connect the AM loop antenna even
when an outdoor antenna is used.
wire
(option)
NN
Bayt
feXerar-
Tar
ty
Rien)
—_—+
S~ 12m
(16 ~ 40 ft.)
(Necessary in mountainous regions, inside
reinforced-concrete buildings, etc.)
Use 5 ~ 12 m (16 ~ 40 ft.) of viny!-covered wire
horizontally at the window.
1, Pay attention to the following points when attaching the
antenna.
® Do not attach it horizontally (to do so would impair
reception).
® Do not attach it close to metal surfaces (to do so would
result in noise). :
When attaching the antenna to a column, rack
or wall.
Find the height and direction of the antenna where
reception is best and then fix it vertically to the wall,
rack, etc.
AM.Joop
antenna (included)
Column pil
SI
AM antenna.
holder (A) (included)
* Do not attach it close to power cords, speaker wires, etc.
(to do so would result in noise).
® Do not attach it close to a tape deck (when the tape deck is
being used, chirping or beeping sounds may be received).
2. Connect the AM loop antenna to the AM antenna terminals
located on the rear panel of the unit.
When attaching the antenna to the unit
This type of installation may cause impaired reception
or result in signal noise. If possible, attach the
antenna to the rack, a wail, or a column.
Move the antenna toward the right or left to find the
point of best reception.
a
AM loop antenna
(
Rear panel 4
of the unit
AM antenna holder (B)
(included)
