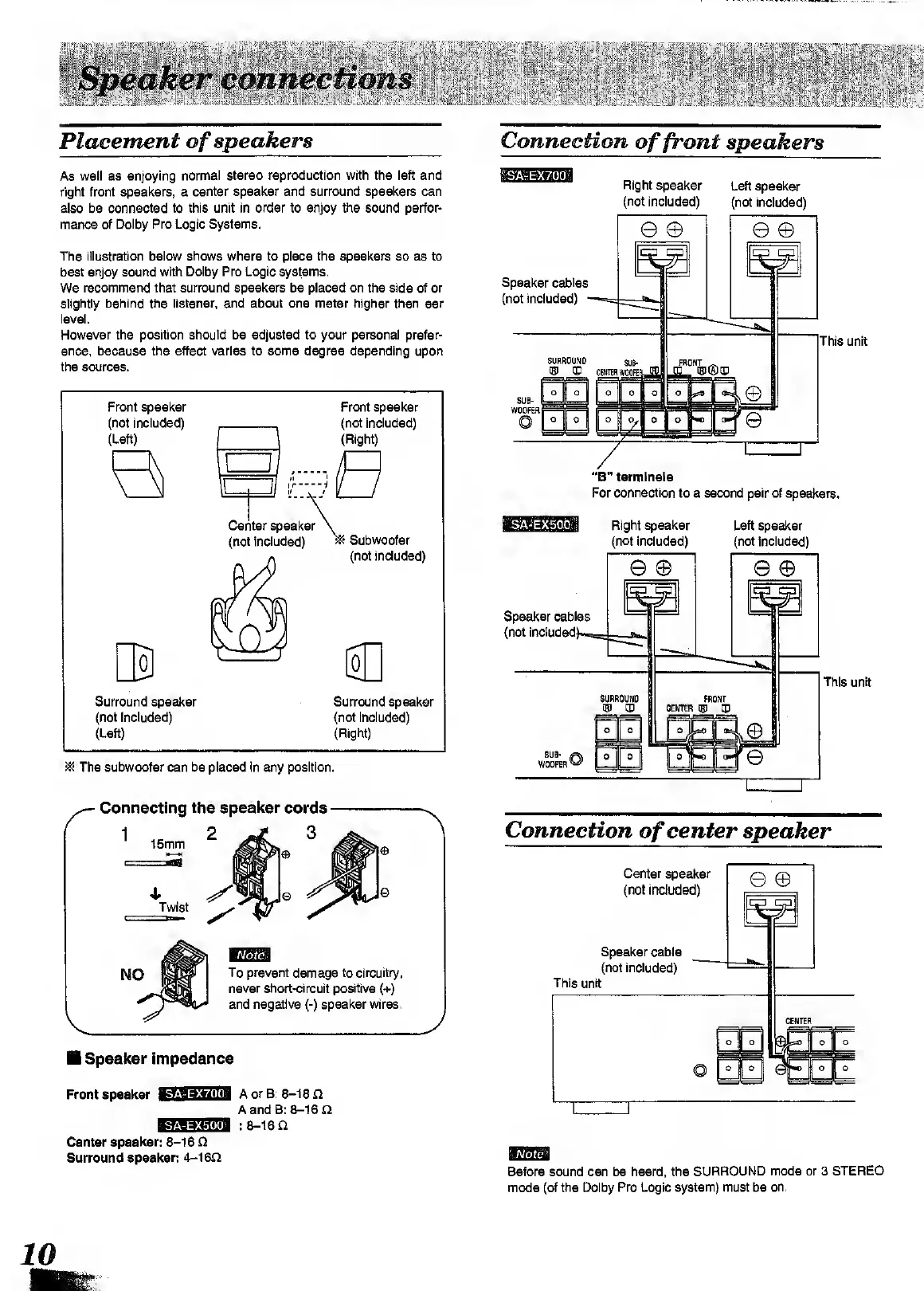

Speaker connections
As well as enjoying normal stereo reproduction with the left and
right front speakers, a center speaker and surround speakers can
also be connected to this unit in order to enjoy the sound perfor¬
mance of Dolby Pro Logic Systems.
The illustration below shows where to place the speakers so as to
best enjoy sound with Dolby Pro Logic systems.
We recommend that surround speakers be placed on the side of or
slightly behind the listener, and about one meter higher than ear
level.
However the position should be adjusted to your personal prefer¬
ence, because the effect varies to some degree depending upon
the sources.
Front speaker
3
Front speaker
(not included)
Subwoofer
(not included)
SO
Surround speaker
(not included)
(Left)
Surround speaker
(not included)
(Right)
The subwoofer can be placed in any position.
mm
To prevent damage to circuitry,
never short-circuit positive (+)
and negative (-) speaker wires.
■ Speaker impedance
Front speaker
SA-EX700
SA EX50Q 1
Center speaker: 8-16
Surround speaker: 4-16ft
A or B: 8-16 £1
A and B: 8-16
: 8-16 n
(not included) (not included)
For connection to a second pair of speakers.
KlEJjOEiEil Right speaker Left speaker
(not included) (not included)
Connection of center speaker
Before sound can be heard, the SURROUND mode or 3 STEREO
mode (of the Dolby Pro Logic system) must be on.
