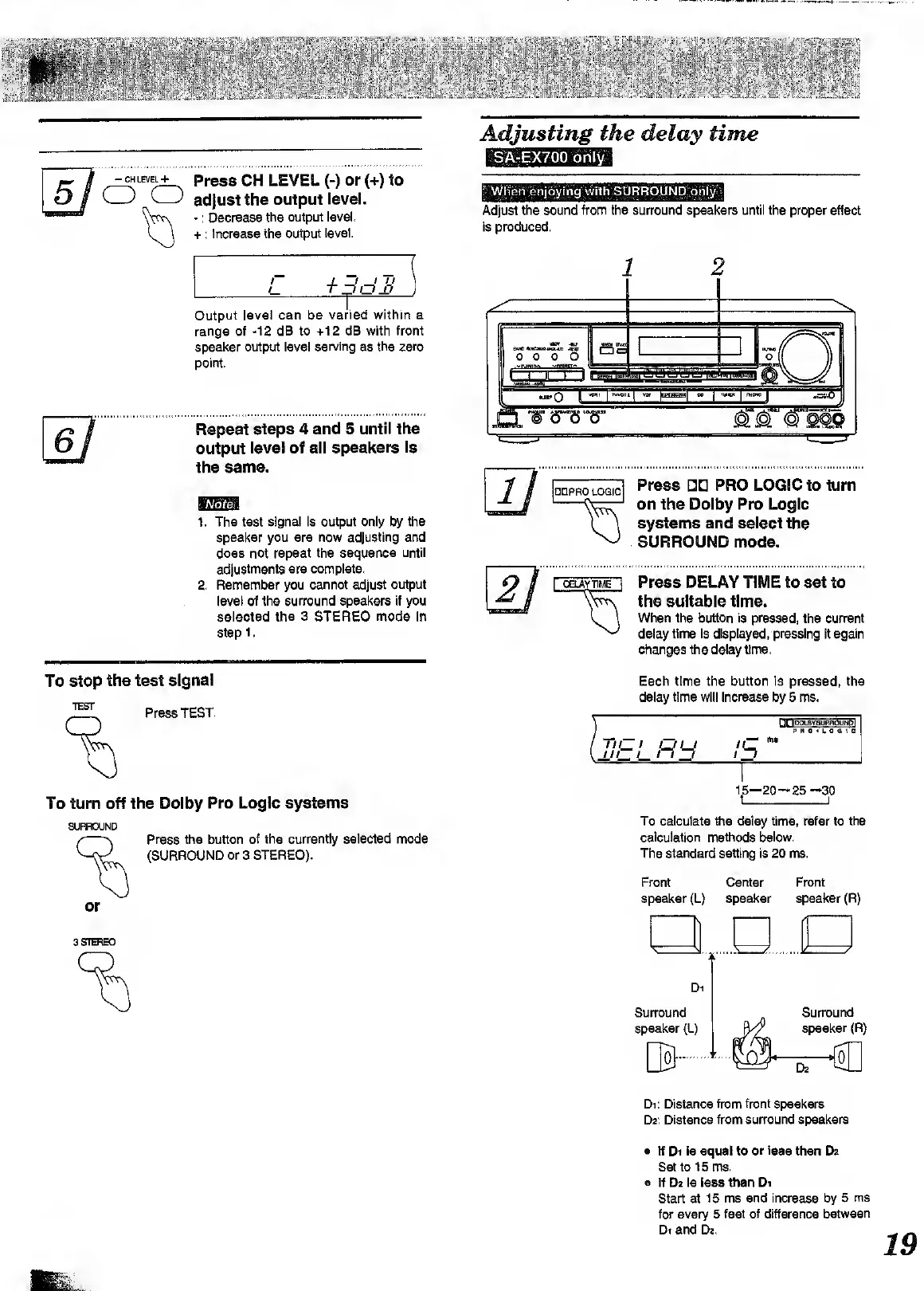

Technics SA-EX700 User Manual

-CH LEVEL +
o o
Press CH LEVEL (-) or (+) to
adjust the output level.
-: Decrease the output level.
+: Increase the output level.
_ L + ^dJ! 1
Output level can be varied within a
range of -12 dB to +12 dB with front
speaker output level serving as the zero
point.
Repeat steps 4 and 5 until the
output level of all speakers is
the same.
IMforea
1. The test signal is output only by the
speaker you are now adjusting and
does not repeat the sequence until
adjustments are complete.
2. Remember you cannot adjust output
level of the surround speakers if you
selected the 3 STEREO mode in
step 1.
To stop the test signal
TEST
Press TEST.
To turn off the Dolby Pro Logic systems
SURROUND
Press the button of the currently selected mode
(SURROUND or 3 STEREO).
or
3 STEREO
Adjusting the delay time
SA-EX70Q only :
When enjoying with SURROUND only
Adjust the sound from the surround speakers until the proper effect
is produced.
1 2
Press □□ PRO LOGIC to turn
on the Dolby Pro Logic
systems and select the
SURROUND mode.
DELAY TIME I
Press DELAY TIME to set to
the suitable time.
When the button is pressed, the current
delay time is displayed, pressing it again
changes the delay time.
Each time the button is pressed, the
delay time will increase by 5 ms.
Hi L_ / L_/ /_/
1 ][lDOLBYaUPROUNp|
PRO-LOGIC
lb
15—20 — 25 —30
t_l
To calculate the delay time, refer to the
calculation methods below.
The standard setting is 20 ms.
Front Center Front
speaker (L) speaker speaker (R)
\ _
Di
Surround
speaker(L)
Surround
speaker (R)
Dz
Di: Distance from front speakers
D 2 : Distance from surround speakers
• If Di is equal to or less than D 2
Set to 15 ms.
o if D 2 Is less than Di
Start at 15 ms and increase by 5 ms
for every 5 feet of difference between
Di and Ds.
