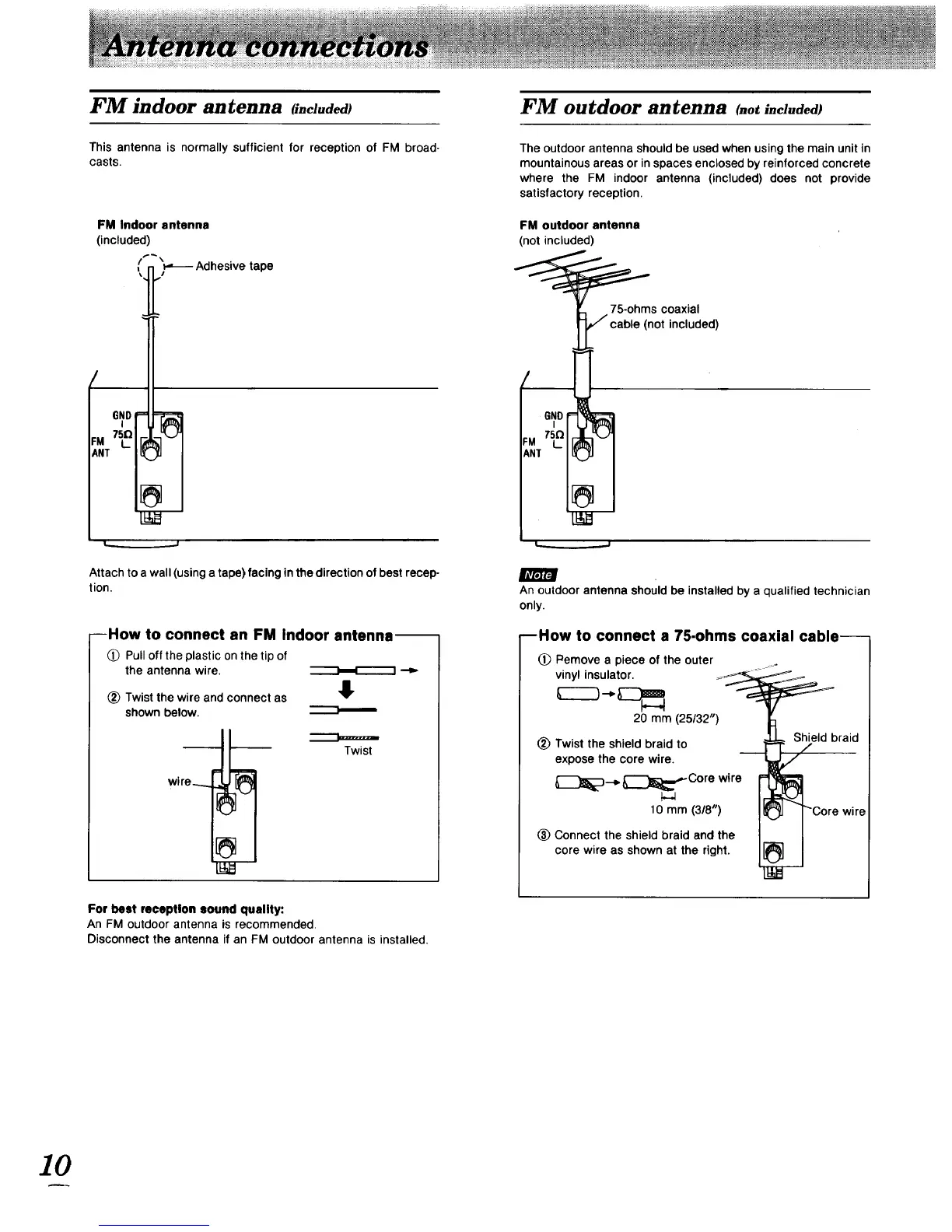

FM indoor antenna ¢i.cl.ded FM outdoor antenna .ot i.c .ded
This antenna is normally sufficient for reception of FM broad-
casts.
FM Indoor antenna
(included)
/"" _ Adhesive tape
t
_.. 75_ I _1_'%)I
Attach to a wall (using a tape) facing in the direction of best recep-
tion.
m
--How to connect an FM Indoor antenna--
(_ Pull off the plastic on the tip of
the antenna wire. _ --_
(_) Twist the wire and connect as _"
shown below.
wire
Twist
For best reception sound quality:
An FM outdoor antenna is recommended.
Disconnect the antenna if an FM outdoor antenna is installed.
The outdoor antenna should be used when using the main unit in
mountainous areas or in spaces enclosed by reinforced concrete
where the FM indoor antenna (included) does not provide
satisfactory reception.
FM outdoor antenna
(not included)
75-ohmscoaxial
(not included)
I.. ..J
An outdoor antenna should be installed by a qualified technician
only.
--How to connect a 7S-ohms coaxial cable--
Pemove a piece of the outer
vinyl insulator. _ _'j
20 mm (25132")
(_ Twist the shield braid to _L S_,eld braid
expose the core wire.
_j_:).__ _-Core wire
10 mm (3/8") _J rCore wire
(_) Connect the shield braid and the
core wire as shown at the right.
To Next Page
