TechnipFMC Smith Meter AccuLoad IV Series User Manual


     
8.7. RTD Temperature Probe analog input wiring
External RTD Wiring
AccuLoad
Red
Red
Black
Black
RTD+
SIG +
SIG -
RTD -
A4M-TBE6 -
13, 14 or 15
1
2
3
4

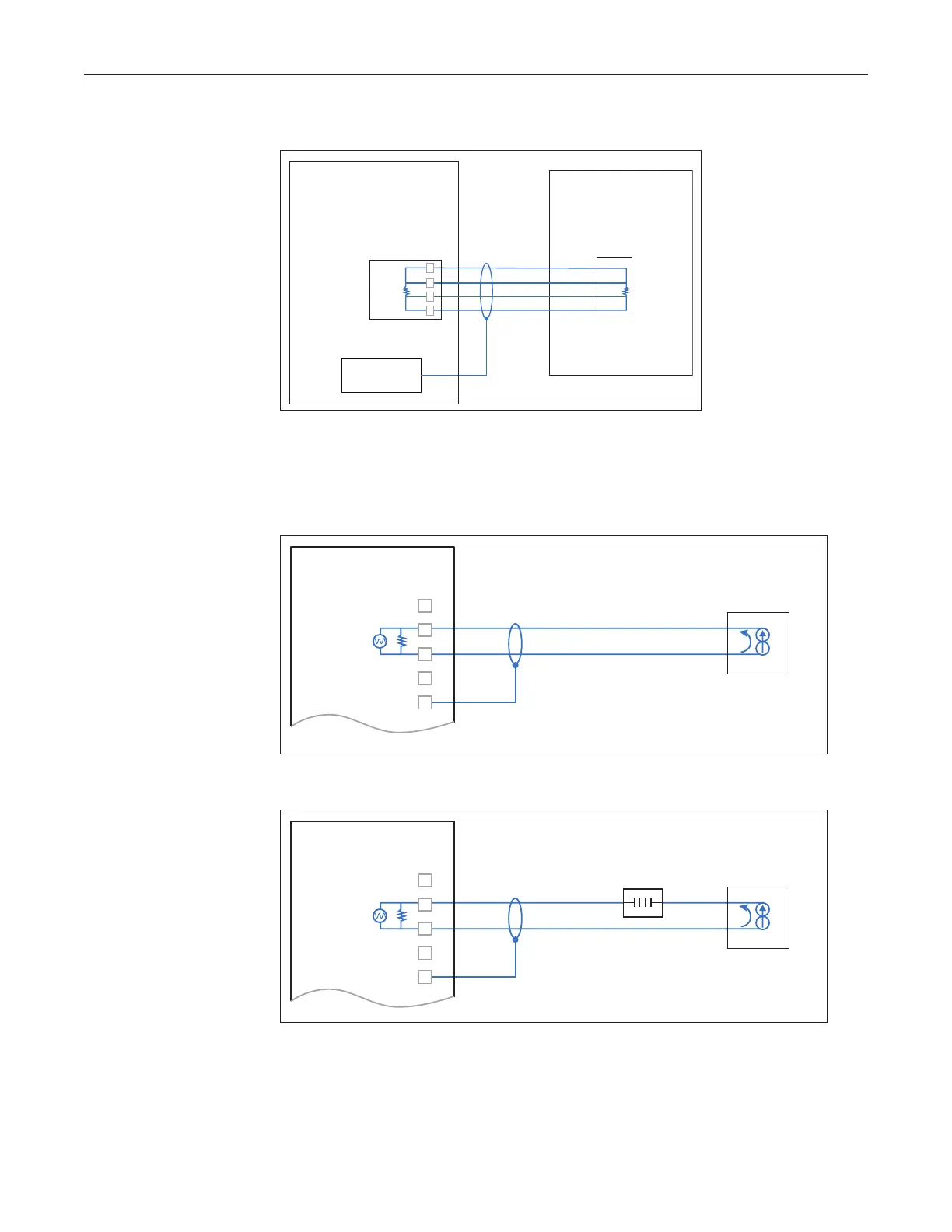

Figure 26. Analog inputs
8.8. 4-20mA analog input wiring
AccuLoad –
A4M - TBE5
RTD +
SIG X +
SIG X-
RTD -
Ground (TBE4)
GND
4-20mA
Transmitting Device
Figure 27. Active 4-20mA Inputs
AccuLoad –
A4M - TBE5
RTD +
SIG X +
SIG X-
RTD -
Ground (TBE4)
GND
4-20mA
Transmitting Device
External
Power
Figure 28. Passive 4-20mA Inputs
