2-2-1 Output Signals from the Servo pack

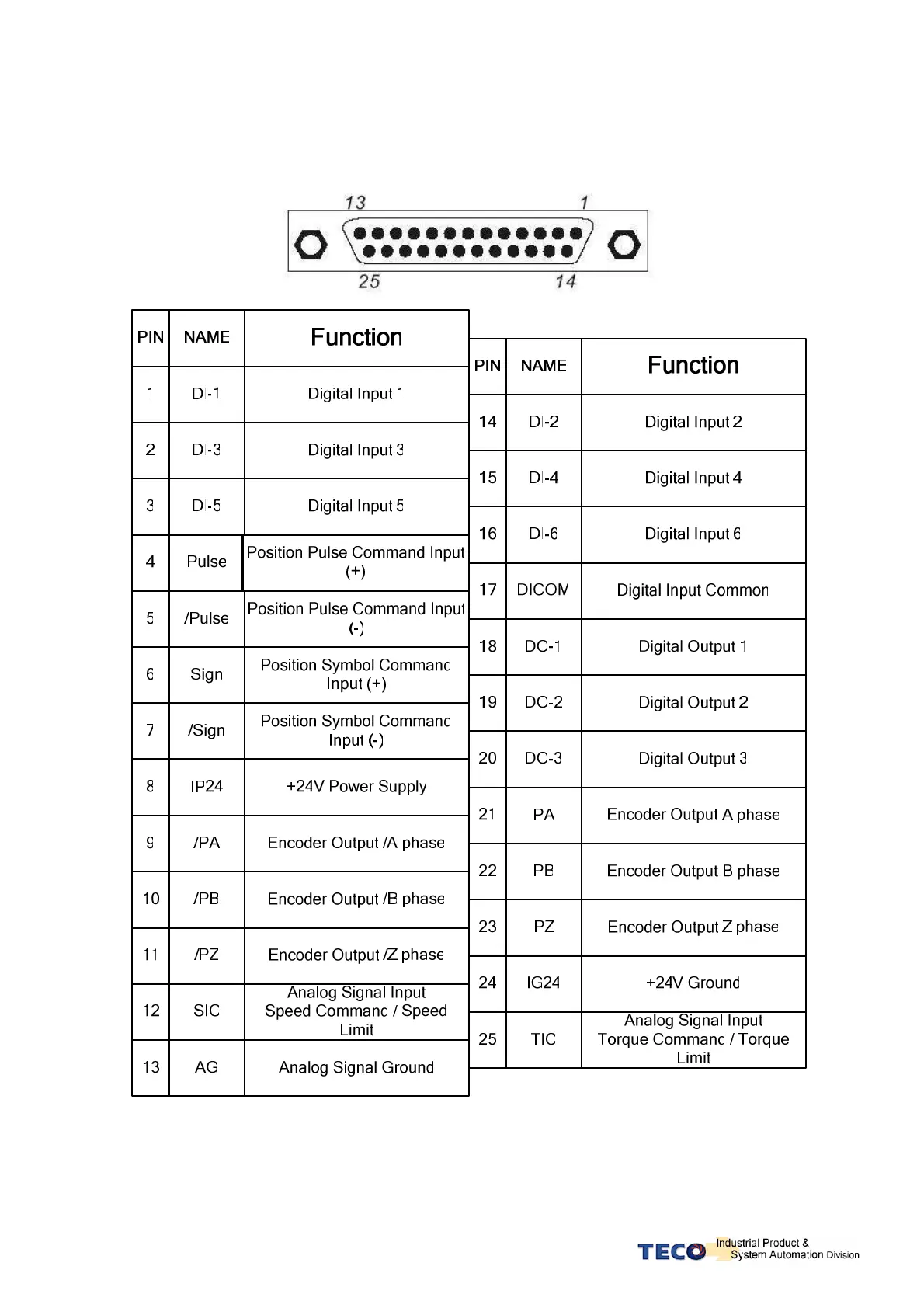

(1) Diagram of CN1 Terminal:
P.S.:
1. If there is unused terminal, please do not connect it or let it be the relay terminal.
2. The Shielded Wire of I/O cable should connect to the ground.
