16
2-2 I/O 信號端子說明
信號端子說明信號端子說明
信號端子說明

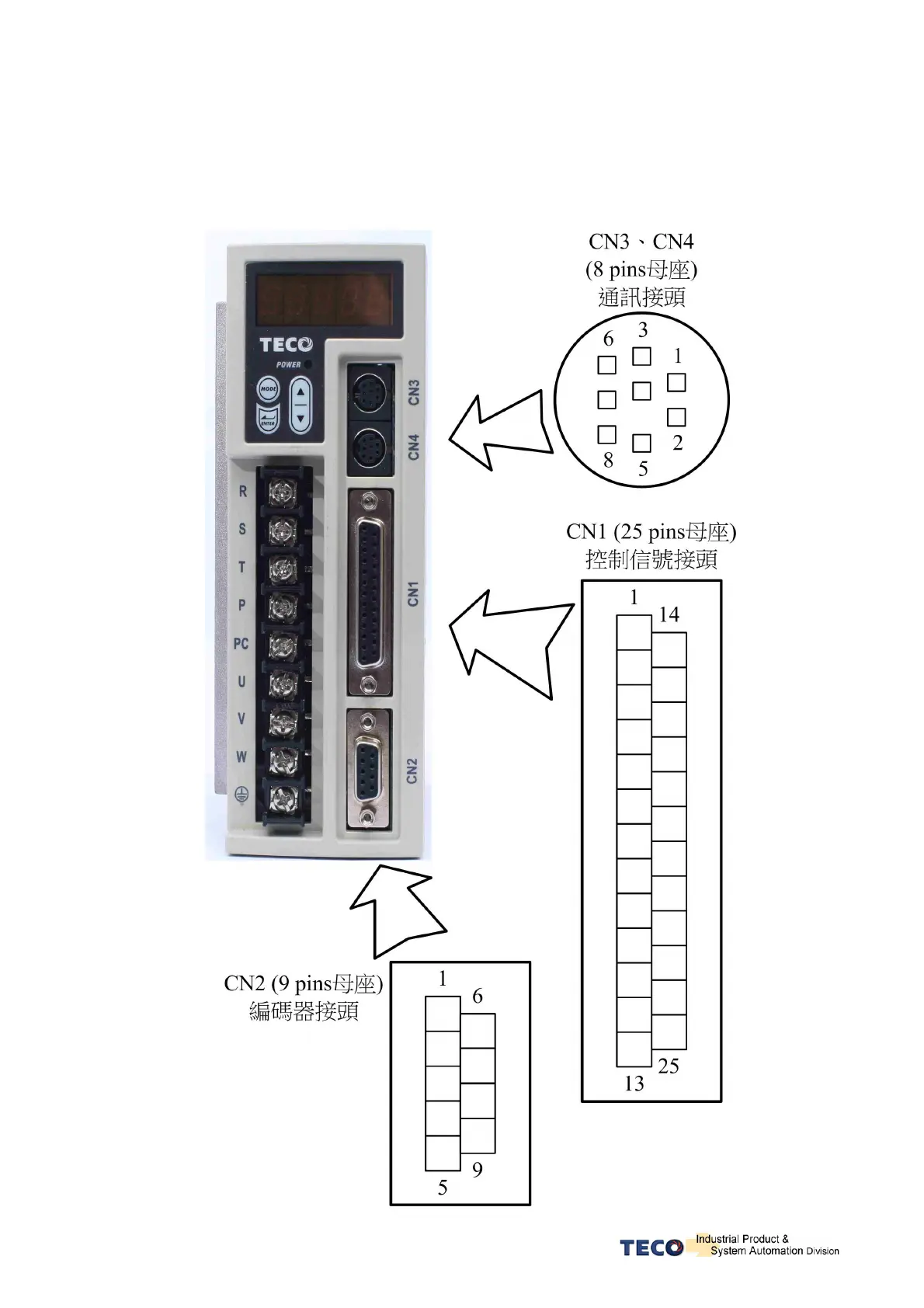

伺服驅動器提供四組連接端子，包含通訊連接端子、CN1 控制信號連接端子及 CN2 編碼
器連接端子，下圖為與各端子連接之公座接腳位置圖。
