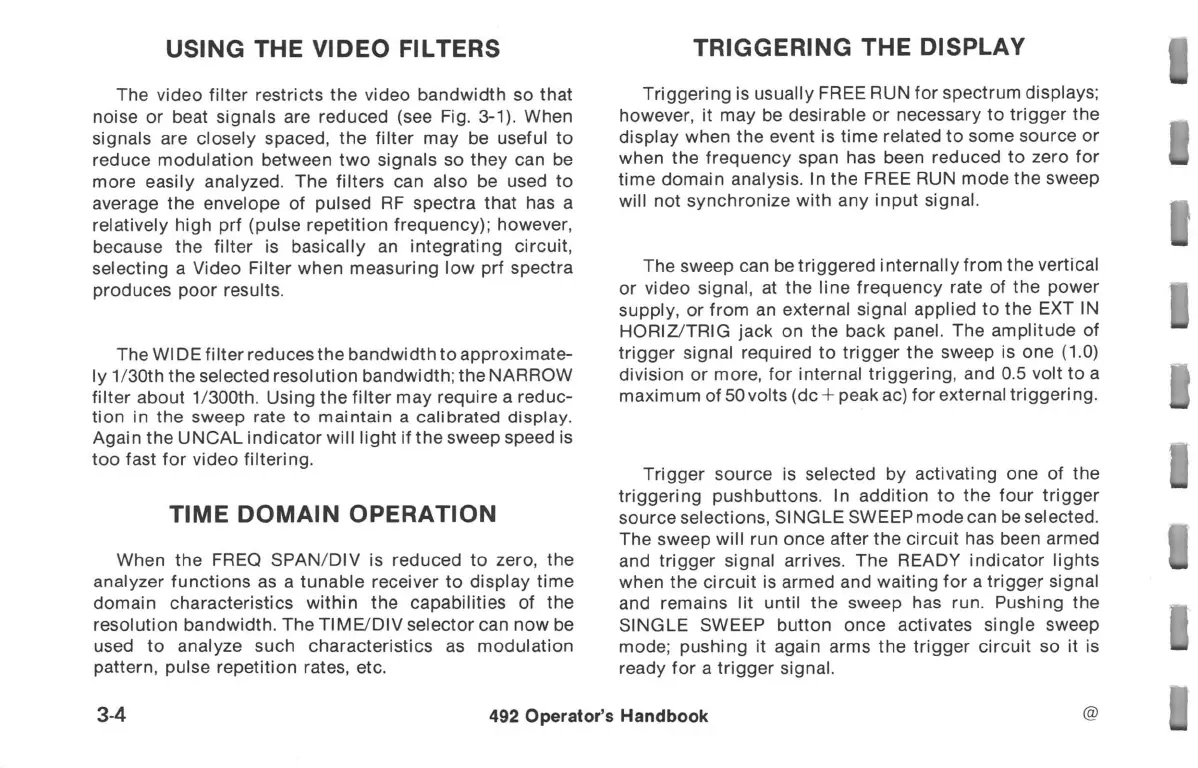

USING
THE
VIDEO
FILTERS
The
video
filter
restricts
the
video
bandwidth
so
that
noise
or
beat
signals
are
reduced
(
see
Fig
.
3-1
)
.
When
signals
are
closely
spaced
,
the
filter
may
be
useful
to
reduce
modulation
between
two
signals
so
they
can
be
more
easily
analyzed
.
The
filters
can
also
be
used
to
average
the
envelope
of
pulsed
RF
spectra
that
has
a
relatively
high
prf
(
pulse
repetition
frequency
)
;
however
,
because
the
filter
is
basically
an
integrating
circuit
,
selecting
a
Video
Filter
when
measuring
low
prf
spectra
produces
poor
results
.
The
WIDE
filter
reduces
the
bandwidth
to
approximate
ly
1
/
30th
the
selected
resolution
bandwidth
;
the
NARROW
filter
about
1
/
300th
.
Using
the
filter
may
require
a
reduc
tion
in
the
sweep
rate
to
maintain
a
calibrated
display
.
Again
the
UNCAL
indicator
will
light
if
the
sweep
speed
is
too
fast
for
video
filtering
.
TIME
DOMAIN
OPERATION
When
the
FREQ
SPAN
/
DIV
is
reduced
to
zero
,
the
analyzer
functions
as
a
tunable
receiver
to
display
time
domain
characteristics
within
the
capabilities
of
the
resolution
bandwidth
.
The
TIME
/
DIV
selector
can
now
be
used
to
analyze
such
characteristics
as
modulation
pattern
,
pulse
repetition
rates
,
etc.
3-4
TRIGGERING
THE
DISPLAY
Triggering
is
usually
FREE
RUN
for
spectrum
displays
;
however
,
it
may
be
desirable
or
necessary
to
trigger
the
display
when
the
event
is
time
related
to
some
source
or
when
the
frequency
span
has
been
reduced
to
zero
for
time
domain
analysis
.
In
the
FREE
RUN
mode
the
sweep
will
not
synchronize
with
any
input
signal
.
The
sweep
can
be
triggered
internally
from
the
vertical
or
video
signal
,
at
the
line
frequency
rate
of
the
power
supply
,
or
from
an
external
signal
applied
to
the
EXT
IN
HORIZ
/
TRIG
jack
on
the
back
panel
.
The
amplitude
of
trigger
signal
required
to
trigger
the
sweep
is
one
(
1.0
)
division
or
more
,
for
internal
triggering
,
and
0.5
volt
to
a
maximum
of
50
volts
(
dc
+
peak
ac
)
for
external
triggering
.
Trigger
source
is
selected
by
activating
one
of
the
triggering
pushbuttons
.
In
addition
to
the
four
trigger
source
selections
,
SINGLE
SWEEP
mode
can
be
selected
.
The
sweep
will
run
once
after
the
circuit
has
been
armed
and
trigger
signal
arrives
.
The
READY
indicator
lights
when
the
circuit
is
armed
and
waiting
for
a
trigger
signal
and
remains
lit
until
the
sweep
has
run
.
Pushing
the
SINGLE
SWEEP
button
once
activates
single
sweep
mode
;
pushing
it
again
arms
the
trigger
circuit
so
it
is
ready
for
a
trigger
signal
.
492
Operator's
Handbook
