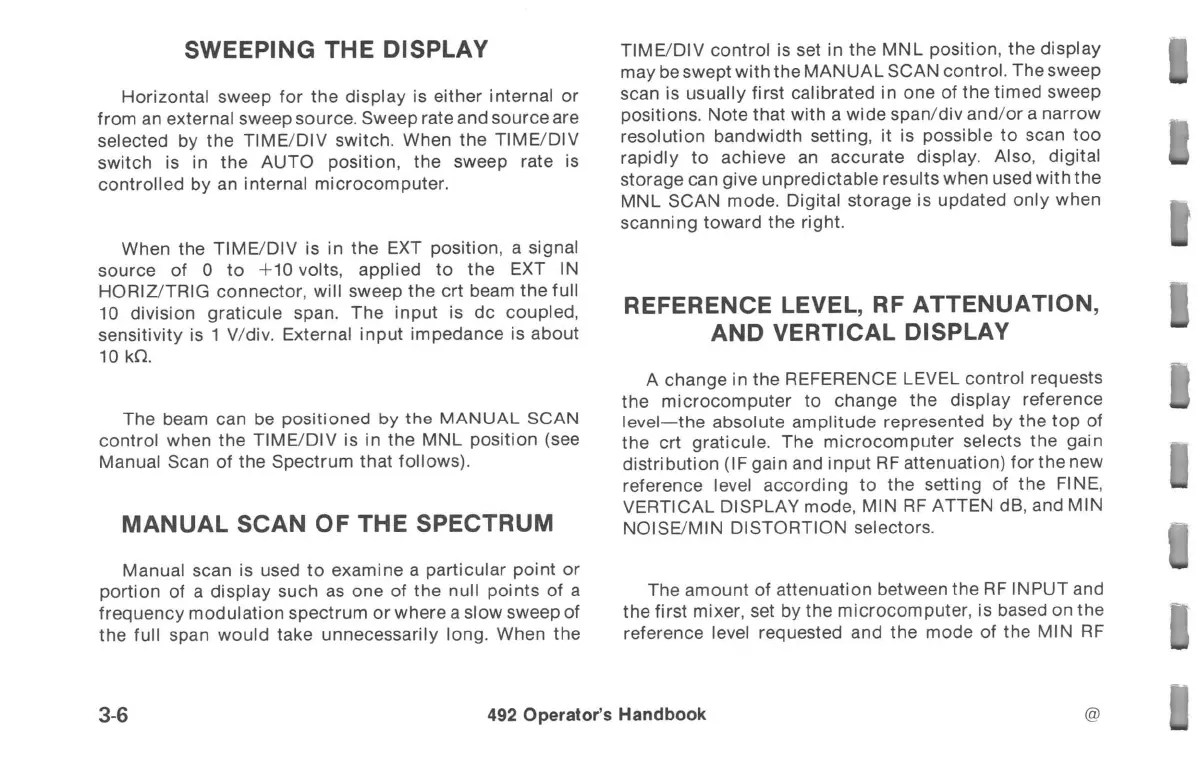

SWEEPING
THE
DISPLAY
Horizontal
sweep
for
the
display
is
either
internal
or
from
an
external
sweep
source
.
Sweep
rate
and
source
are
selected
by
the
TIME
/
DIV
switch
.
When
the
TIME
/
DIV
switch
is
in
the
AUTO
position
,
the
sweep
rate
is
controlled
by
an
internal
microcomputer
.
When
the
TIME
/
DIV
is
in
the
EXT
position
,
a
signal
source
of
to
+10
volts
,
applied
to
the
EXT
IN
HORIZ
/
TRIG
connector
,
will
sweep
the
crt
beam
the
full
10
division
graticule
span
.
The
input
is
dc
coupled
,
sensitivity
is
1
V
/
div
.
External
input
impedance
is
about
10
ΚΩ
.
The
beam
can
be
positioned
by
the
MANUAL
SCAN
control
when
the
TIME
/
DIV
is
in
the
MNL
position
(
see
Manual
Scan
of
the
Spectrum
that
follows
)
.
MANUAL
SCAN
OF
THE
SPECTRUM
Manual
scan
is
used
to
examine
a
particular
point
or
portion
of
a
display
such
as
one
of
the
null
points
of
a
frequency
modulation
spectrum
or
where
a
slow
sweep
of
the
full
span
would
take
unnecessarily
long
.
When
the
3-6
TIME
/
DIV
control
is
set
in
the
MNL
position
,
the
display
may
be
swept
with
the
MANUAL
SCAN
control
.
The
sweep
scan
is
usually
first
calibrated
in
one
of
the
timed
sweep
positions
.
Note
that
with
a
wide
span
/
div
and
/
or
a
narrow
resolution
bandwidth
setting
,
it
is
possible
to
scan
too
rapidly
to
achieve
an
accurate
display
.
Also
,
digital
storage
can
give
unpredictable
results
when
used
with
the
MNL
SCAN
mode
.
Digital
storage
is
updated
only
when
scanning
toward
the
right
.
REFERENCE
LEVEL
,
RF
ATTENUATION
,
AND
VERTICAL
DISPLAY
A
change
in
the
REFERENCE
LEVEL
control
requests
the
microcomputer
to
change
the
display
reference
level
the
absolute
amplitude
represented
by
the
top
of
the
crt
graticule
.
The
microcomputer
selects
the
gain
distribution
(
IF
gain
and
input
RF
attenuation
)
for
the
new
reference
level
according
to
the
setting
of
the
FINE
,
VERTICAL
DISPLAY
mode
,
MIN
RF
ATTEN
dB
,
and
MIN
NOISE
/
MIN
DISTORTION
selectors
.
The
amount
of
attenuation
between
the
RF
INPUT
and
the
first
mixer
,
set
by
the
microcomputer
,
is
based
on
the
reference
level
requested
and
the
mode
of
the
MIN
RF
492
Operator's
Handbook
@
