DMM4040
and
4050
Safety and Installation Instructions
Installing the Meter into an Equipment Rack
The Meter
is
mountable
in
a standard 19-inch rack using a rack mount kit. See the
"Options and Accessories" section later
in
this manual for ordering information.
,
To prepare the Meter for rack mounting, remove the bail and remove the front and rear
protective boots. To remove a boot, stretch a comer then slide it
off
as
shown
in
Figure
5.
To install the Meter into the rack, refer
to
the instructions provided with the
Ra
ck Mount
Kit.
•
eue
22
eps

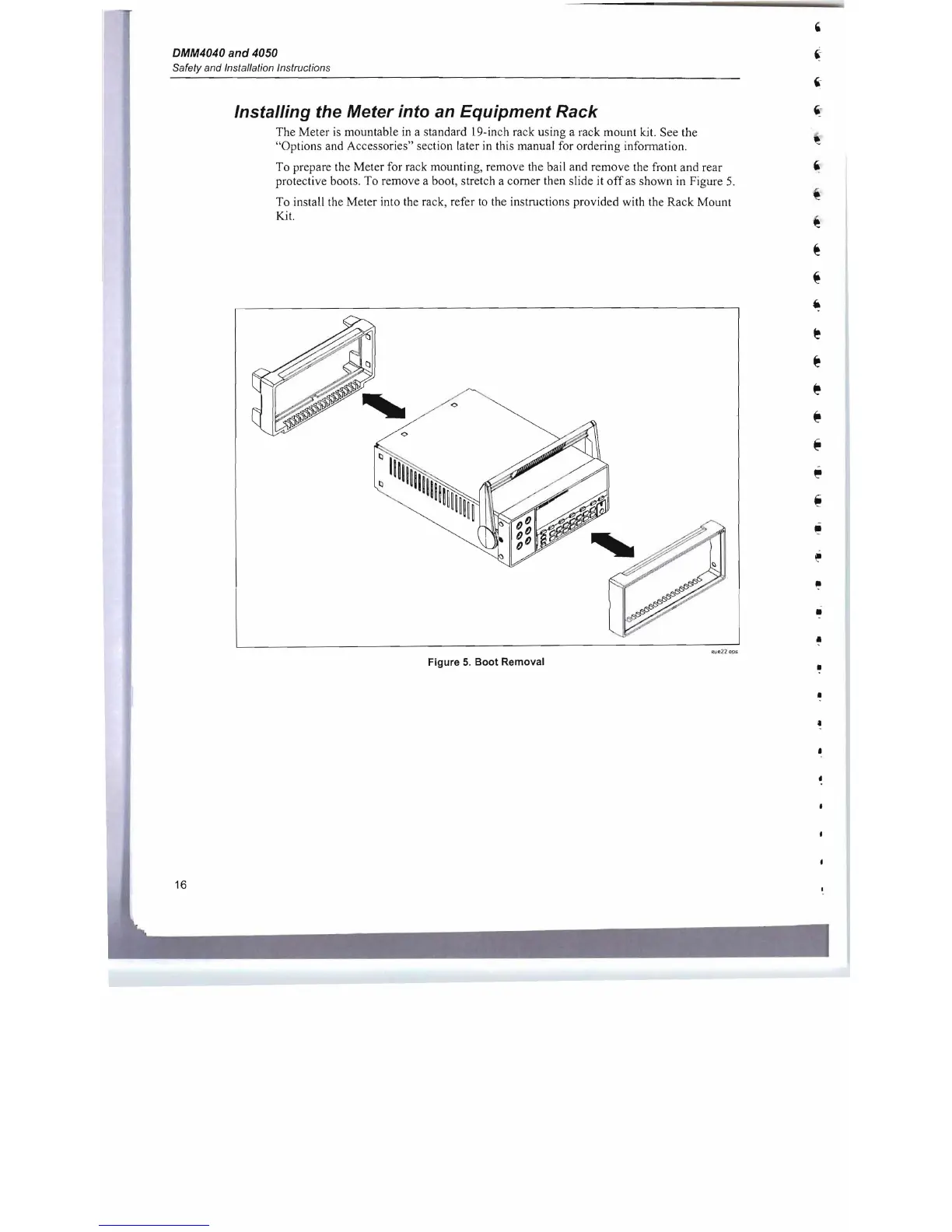

Figure
5.
Boot Removal
16
