Tektronix DMM4040 Safety And Installation Instructions

DMM4040 and 4050
Safety and Installation Instructions

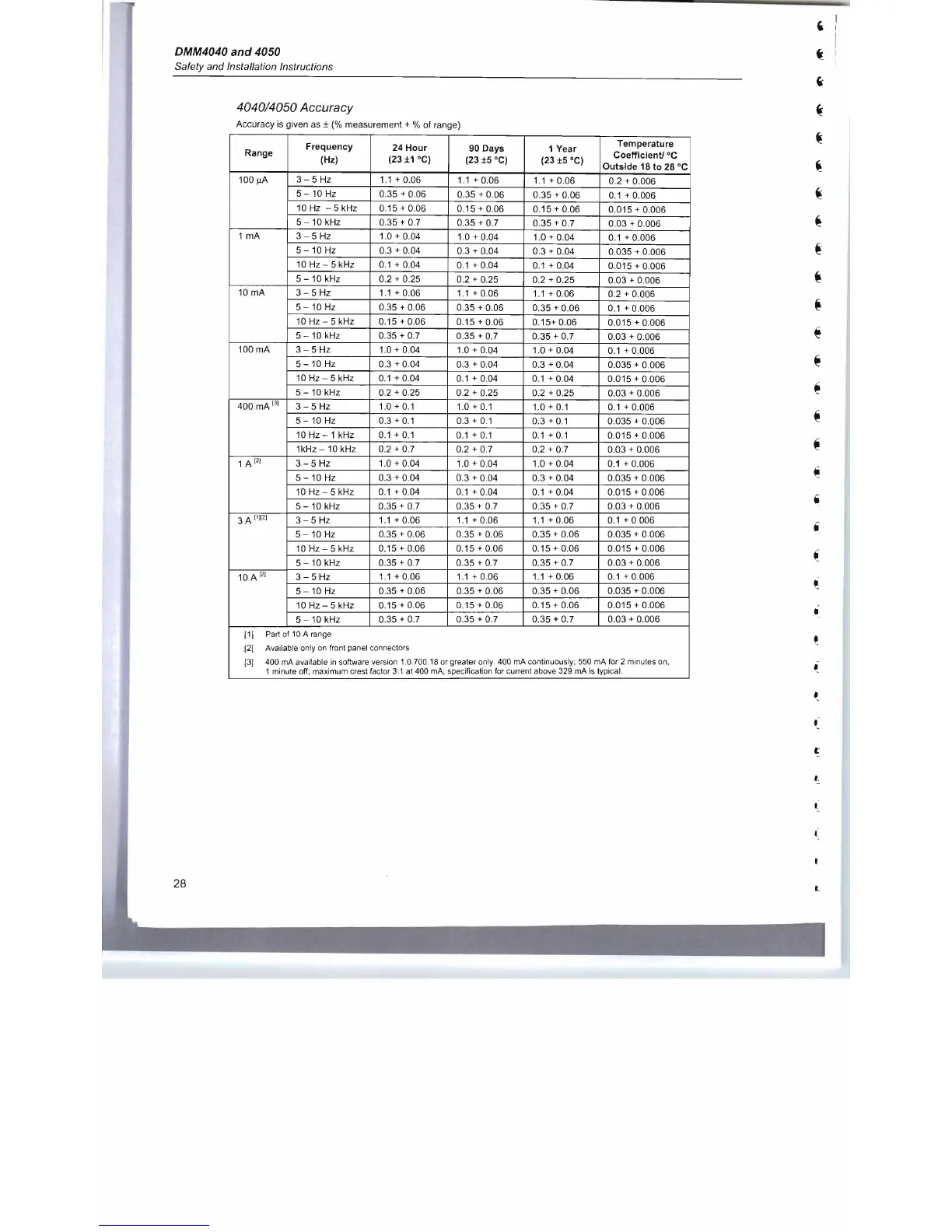

404014050 Accuracy
Accuracy is given as ± (% measurement + % of range)
Range
Frequency
(Hz)
24
Hour
(23
±1 DC)
90 Days
(23
±S DC)
1 Year
(23
±S DC)
Temperature
Coefficient! DC
Outside 18 to 28 DC
100~
3 - 5 Hz
1.1 + 0.06
1.1 + 0.06
1.1 + 0.06
0.2 + 0.006
5
-10 Hz
0.35 + 0.06
0.35 + 0.06
0.35 + 0.06
0.1 + 0.006
10Hz-5kHz
0.15+0.06
0.15+0.06
0.15 + 0.06
0.015 + 0.006
5-10kHz
0.35 + 0.7
0.35 + 0.7
0.35 + 0.7
0.03 + 0.006
1 rnA 3 - 5 Hz
1.0 + 0.04
1.0 + 0.04
1.0 + 0.04
0.1 + 0.006
5
-10 Hz
0.3 + 0.04
0.3 + 0.04
0.3 + 0.04
0.035 + 0.006
10 Hz - 5 kHz
0.1 + 0.04
0.1 + 0.04
0.1 + 0.04
0.015 + 0.006
5
-10 kHz 0.2 + 0.25
0.2 + 0.25
0.2 + 0.25
0.03 + 0.006
10 rnA 3-5 Hz
1.1 + 0.06
1.1 + 0.06
1.1 + 0.06
0.2 + 0.006
5
-10 Hz
0.35 + 0.06
0.35 + 0.06
0.35 + 0.06
0.1 + 0.006
10 Hz - 5 kHz
0.15+0.06
0.15 + 0.06 0.15+ 0.06
0.015 + 0.006
5-10kHz
0.35 + 0.7
0.35 + 0.7
0.35
+ 0.7
0.03 + 0.006
100mA
3 - 5 Hz
1.0 + 0.04
1.0 + 0.04 1.0 + 0.04
0.1 + 0.006
5
-10 Hz 0.3 + 0.04
0.3 + 0.04
0.3 + 0.04
0.035 + 0.006
10 Hz - 5 kHz
0.1 + 0.04
0.1 + 0.04
0.1 + 0.04
0.015 + 0.006
5-10 kHz
0.2 + 0.25
0.2 + 0.25 0.2 + 0.25
0.03 + 0.006
400 mA
J31
3 -5 Hz 1.0 + 0.1
1.0 + 0.1
1.0 + 0.1
0.1 + 0.006
5
-10 Hz
0.3 +
0.1 0.3 + 0.1
0.3 + 0.1
0.035 + 0.006
10 Hz -1 kHz 0.1+0.1
0.1 + 0.1 0.1 + 0.1
0.015 + 0.006
1kHz-10kHz
0.2 + 0.7 0.2 + 0.7
0.2 + 0.7 0.03 + 0.006
1 A
121
3- 5 Hz 1.0 + 0.04 1.0 + 0.04 1.0 + 0.04
0.1 +0.006
5 -10 Hz 0.3 + 0.04
0.3 + 0.04 0.3 + 0.04
0.035 + 0.006
10 Hz - 5 kHz 0.1 + 0.04
0.1 + 0.04 0.1 + 0.04 0.015 + 0.006
5
-10 kHz 0.35 + 0.7 0.35 + 0.7 0.35 + 0.7 0.03 + 0.006
3A 111121
3- 5 Hz 1.1 + 0.06 1.1 +0.06 1.1 + 0.06 0.1 + 0.006
5
-10 Hz 0.35 + 0.06 0.35 + 0.06 0.35 + 0.06 0.035 + 0.006
10 Hz - 5 kHz
0.15 + 0.06
0.15+0.06 0.15+0.06
0.015 + 0.006
5
-10 kHz
0.35 + 0.7 0.35 + 0.7 0.35 + 0.7 0.03 + 0.006
10 A
[21
3 - 5 Hz
1.1 +0.06
1.1+0.06
1.1 +0.06 0.1 + 0.006
5
-10 Hz
0.35 + 0.06 0.35 + 0.06 0.35 + 0.06 0.035 + 0.006
10 Hz - 5 kHz
0.15+0.06 0.15 + 0.06 0.15 + 0.06
0.015 + 0.006
5 -
10 kHz 0.35 + 0.7
0.35 + 0.7
0.35 + 0.7
0.03 + 0.006
[1]
Part of 10 A range
[2]
Availab[e only on front panel connectors
[3]
400 mA available in software version 1.0.700.18 or greater only. 400 mA continuously; 550 mA for 2 minutes on,
1 minute off; maximum crest factor 3:1 at 400 mA; specification for current above 329 mA is typical.
•
"
"
I
28
L
