Display Waveform Data

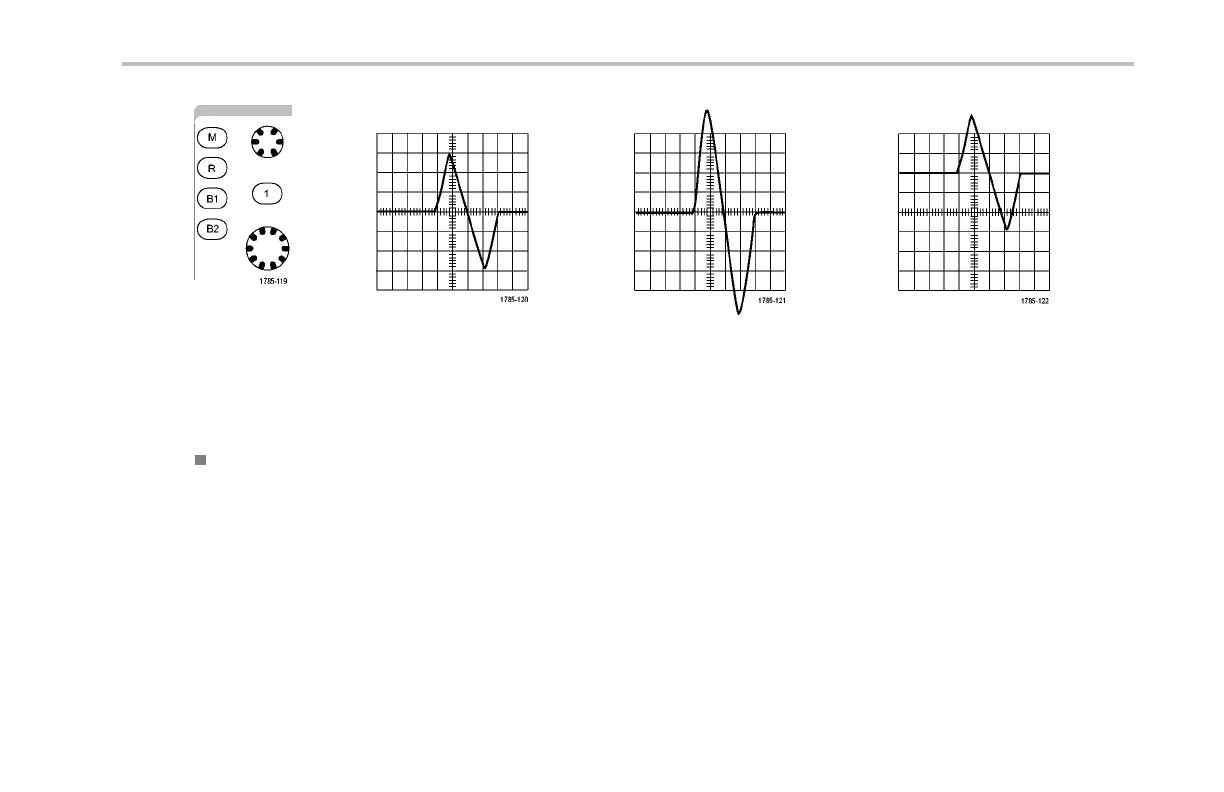

Original wavef orm Scaled vertically Positioned vertically
Quick Tips
Preview. If you c hange the Position or Scale controls when the acquisition is st opped or when it is waiting for the next trigger,
the oscilloscope rescales and repositions the releva nt waveforms in response to the new control settings. It simulates what you
will see when you n ext push the RUN button. The o scilloscope uses the new settings for the n ext acquisition.
You may see a clipped waveform if the original acquisition went off the screen.
The math waveform, cursors, and automatic measurements remain active and valid when using preview.
MSO4000 and DPO4000 Series Oscilloscopes User Manual 171
