Save and Recall In format ion
Side-bezel menu button
Description
Displaying a ref erence
waveform
Sets the oscilloscope to save waveform data as a comma-separated data file compatible with
popular spreadsheet programs. This file cannot be recalled to reference memory.
Saving an analog waveform to reference mem ory. To save an analog waveform to nonvolatile memory inside the
oscilloscope, select the waveform that you want to save, push the Save Waveform screen button, and then select one of the
reference waveform locations. Four-channel models have four referen ce locations. Two-channel models have two reference
locations.
Saved w avef orms contain only the most recent acquisition. Gray-scale information, if any, is not saved.
NOTE. 10 M reference waveforms are volatile and not saved w hen the oscilloscope power is turned o ff. To keep these waveform s,
save them to external sto rage.
Displaying a reference waveform. To display a waveform stored in nonvolatile memory:

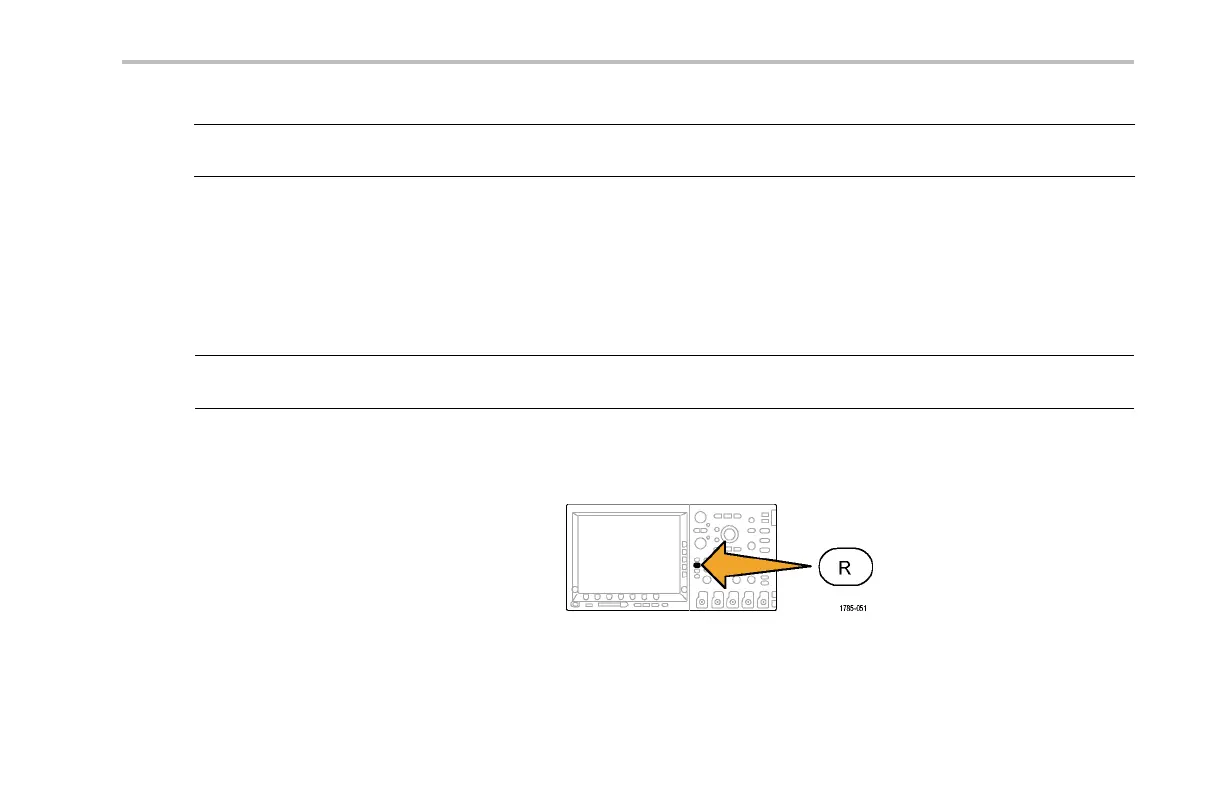

1. Push Ref R.
MSO4000 and DPO4000 Series Oscilloscopes User Manual 245
