Application exa

mples

Triggering on a video signal

The instrument supports triggering on NTSC, SECAM, PAL, and high deﬁnition signals.

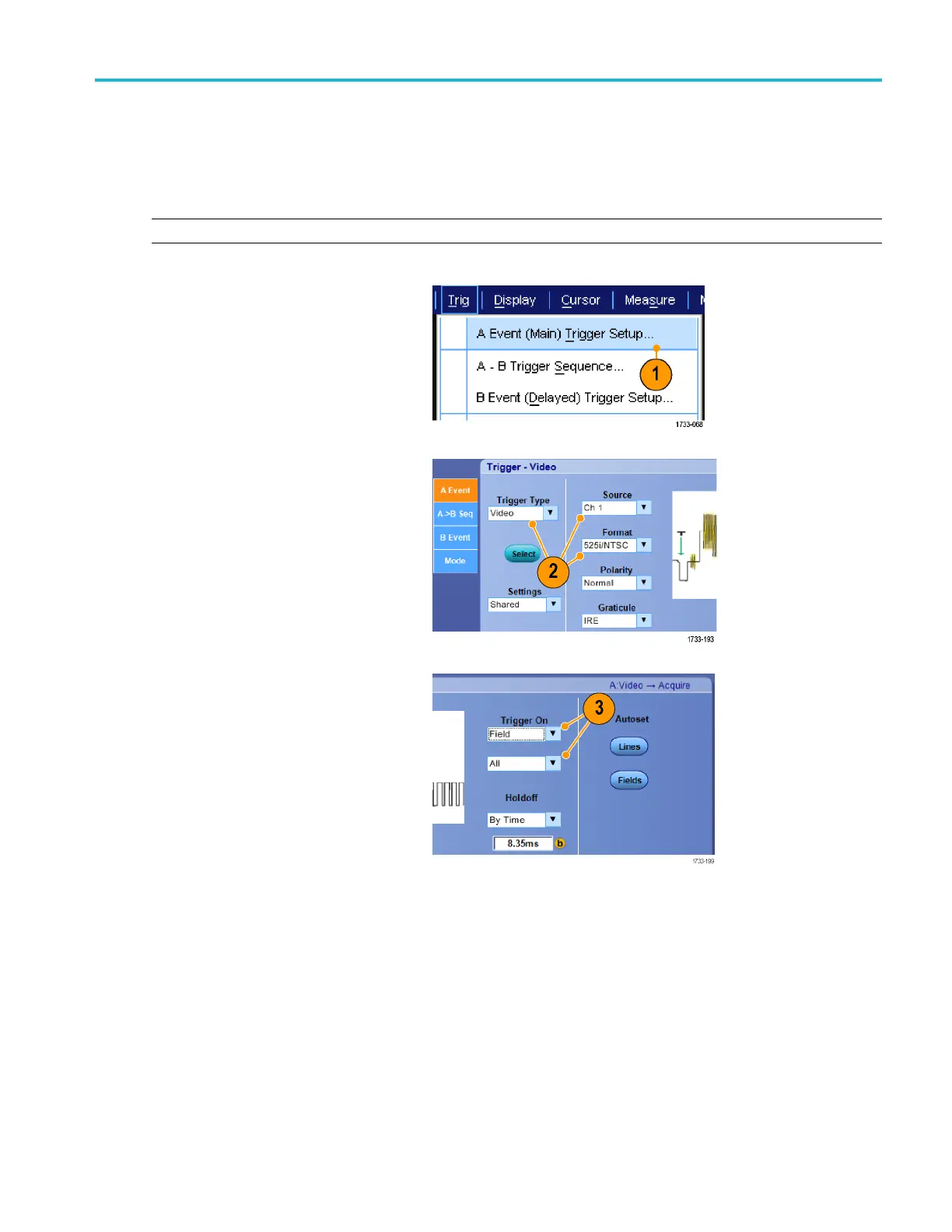

To trigger on the video ﬁelds:

NOTE. The video trigger type is available only on DPO7000C, MSO5000B, and DPO5000B Series instruments.

1. Select Trig > A Event (Main) Trigger

Setup....

2. Set the A trigger type and source in the

A Event tab.

Select Fo

rmat > 525i/NTSC.

3. Select Trigger On > Field.

Select Odd, Even,orAll ﬁelds.

MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 175
