Power-On and Power-Off Procedure
6. USB 2.0 Host por
t. Use the USB 2.0 High Speed Host port to connect a USB
memory device or USB keyboard.
7. Power input. A
ttach to an AC power line with integral safety ground.
8. Lock. Use to secure the oscilloscope.
Power-On a
nd Power-Off Procedure
This instr
ument operates from a single-phase power source with the neutral
conductor at or near earth ground. The line conductor is fused for over-current
protection. A protective ground connection through the grounding conductor in
the power cord is essential for safe operation.

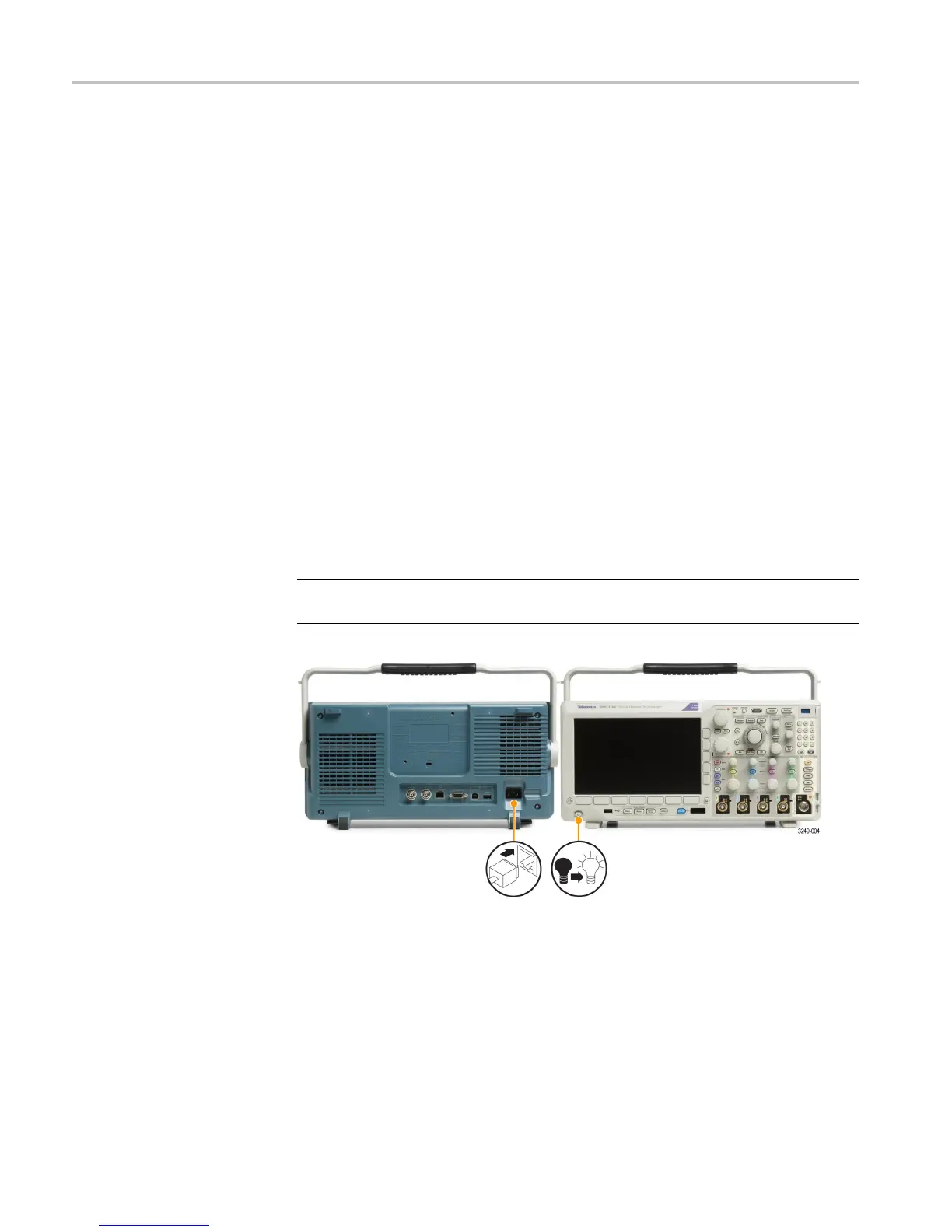

Power-On
1. Connect the supplied power cord to the rear-panel power connector.
2. Push th
e power button on the instrument front-panel and the instrument will
turn on.
NOTE. The Standby button on the front-panel does not disconnect mains power.
Only the power cord at the rear of the product can disconnect mains power.
P
ower-Off
1. Push the power button on the instrument front-panel to turn the instrument off.
2. If you want to remove power completely, disconnect the power cord from the
rear-panel of the instrument.
22 MDO3000 Installation and Safety Instructions
