Tektronix MSO4034 Demo Instruction Manual

Giving Demos of Advanced Tektronix 4000 Features
The following are general demo procedures that cover the key points of Wave Inspector and Serial Triggering and Analysis.
Demo IX: Setting Up I2C Signals

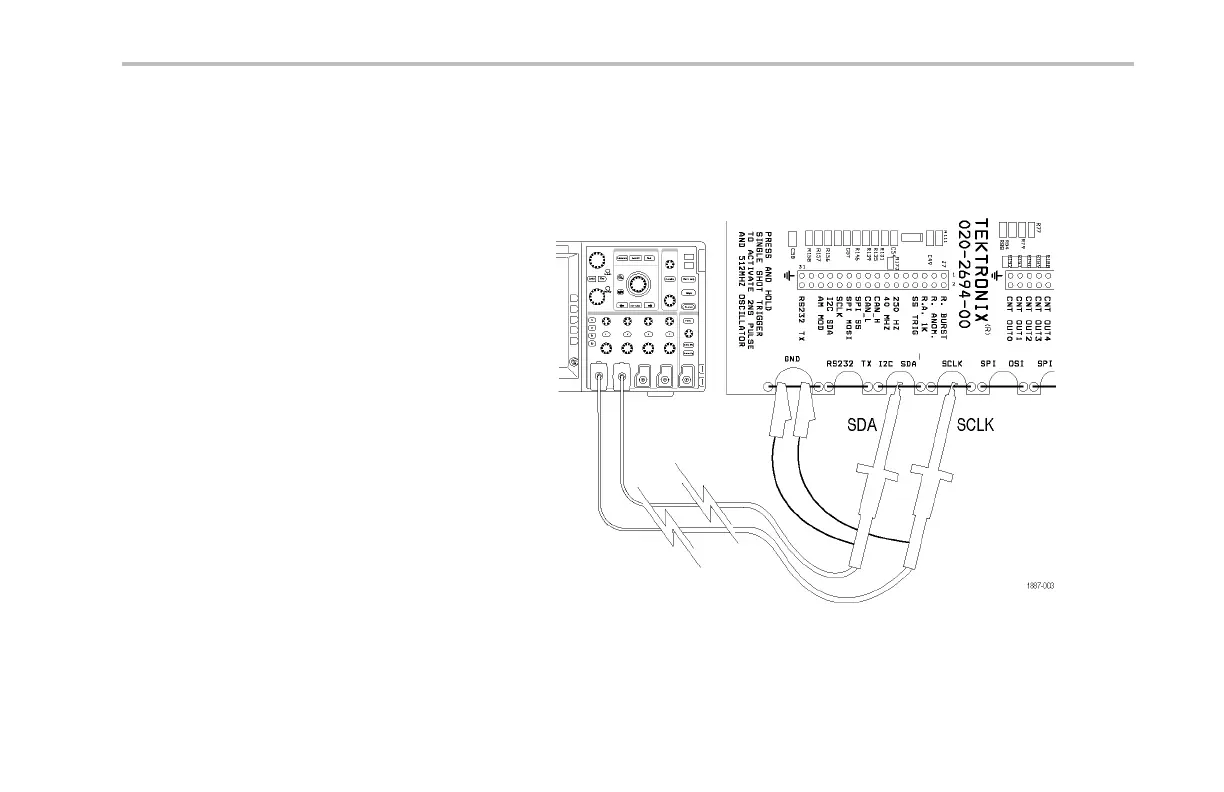

1. Connect th e ground lead of a P613 9A
probe to a point labeled GND on the demo
board.
Connect the P6139A probe from channel 1
on the oscillos cope to the SC LK test point
on the demo board.
2. Connect the ground lead of a second
P6139A probe to a point labeled GND on
the demo board.
Connect the second P6139A probe from
channel 2 on the oscilloscope to the I2C
SDA test point on the demo board.
Tektronix 4000 Oscilloscope Demo In struction Manual 23
