Pinpoint Trigge

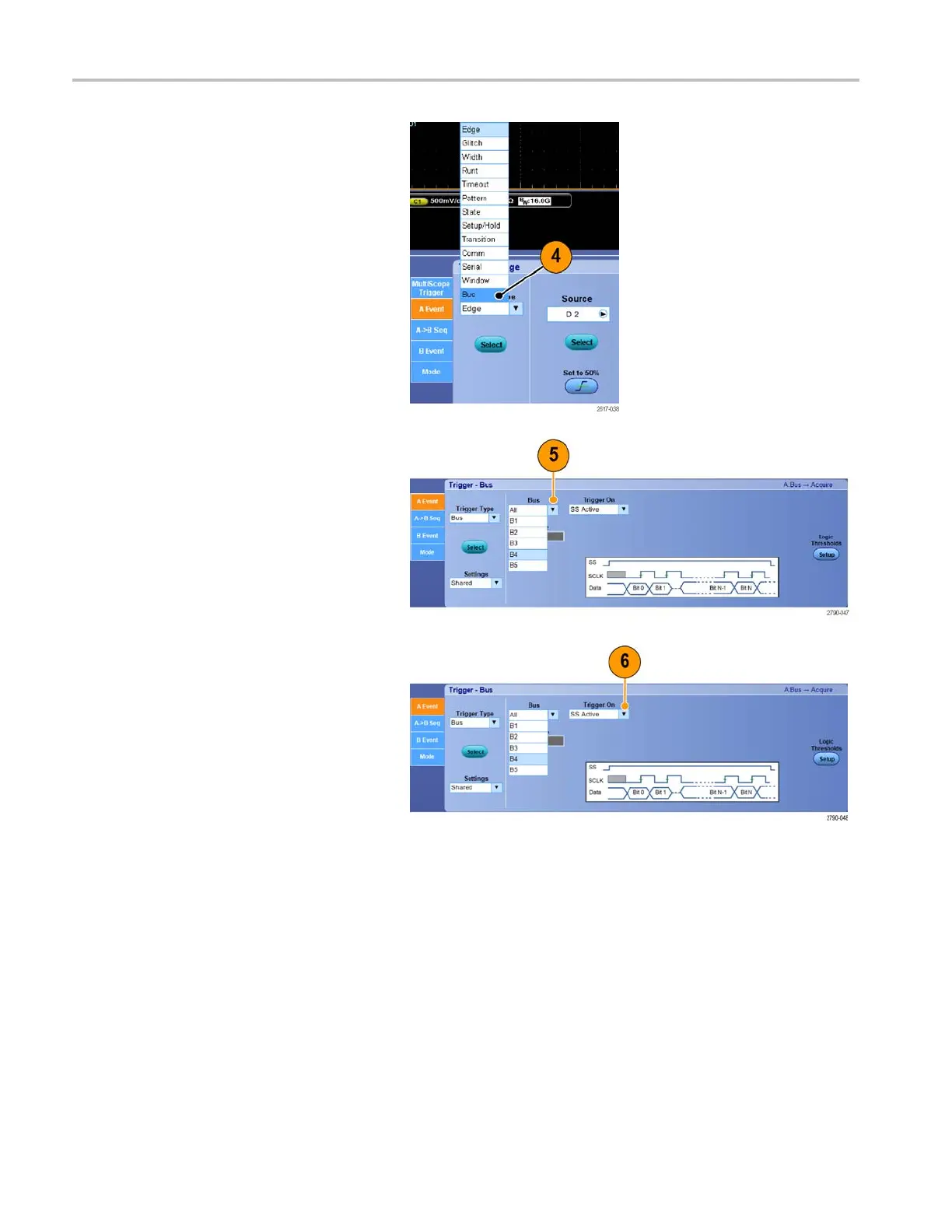

4. Select the Bus Trigger Type.

5. Select the bus.

6. Select the bus signal to trigger on.

7. Depending on your Trigger On choice

and your bus type, make the required

selections for the bus.

See the online help for additional help

setting up a bus.

84 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual
