Your instrument features cursors, autom atic measurements, statistics, histograms, math, spectral analysis, and advanced
pass/fail tests to help you to analyze waveforms. This section contains concepts and procedures for analyzing waveforms.
Detailed information is available in the online help.
Taking Automatic Measurements

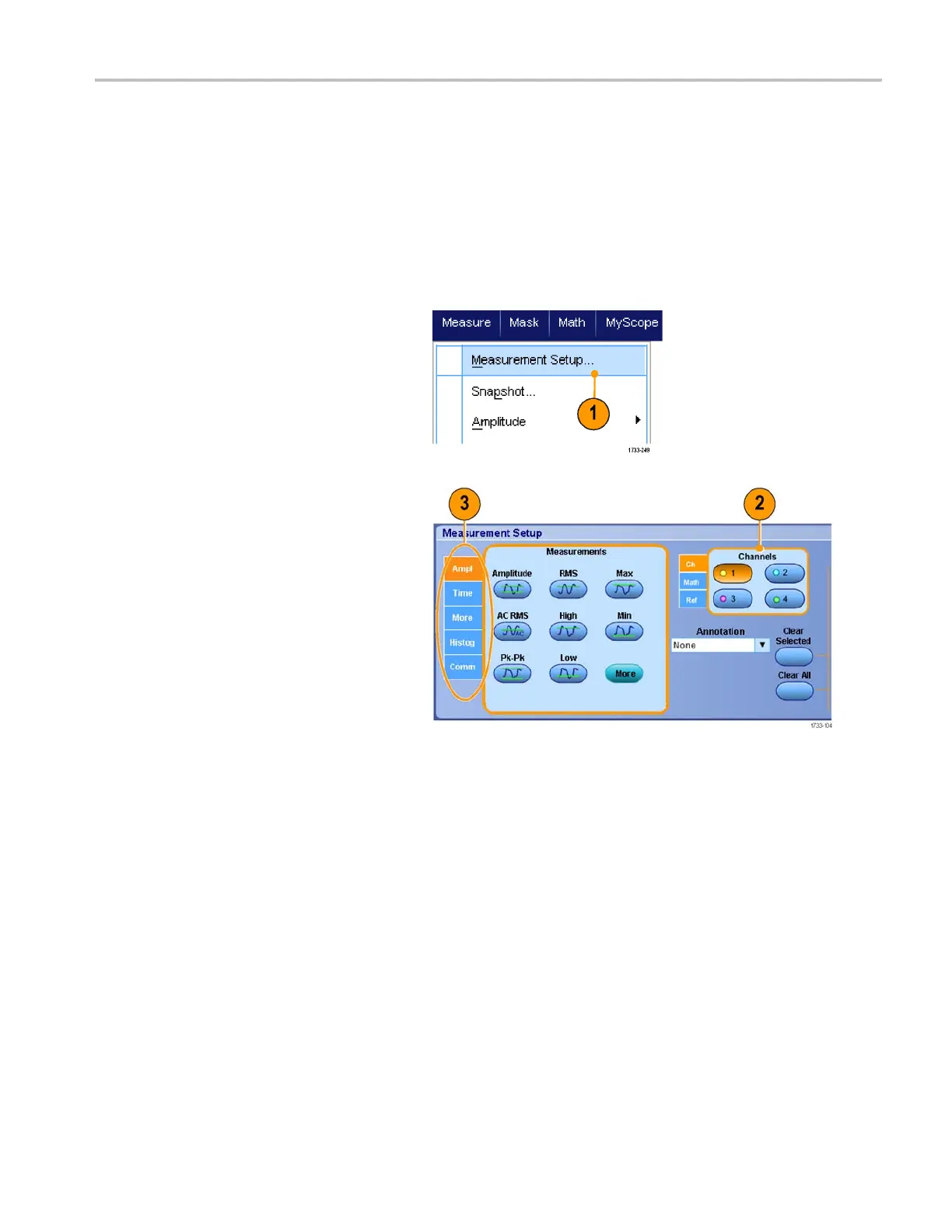

1. Select Measure > Measurement
Setup....
2. Select the channel, math or reference
waveform that you want to measure.
3. Using the tabs, select measurements in
five different categories.
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual 113
