Start Up

TDS 500B, TDS 600B, & TDS 700A User Manual

1–5

Power Connector

Principal Power Switch

Fuse

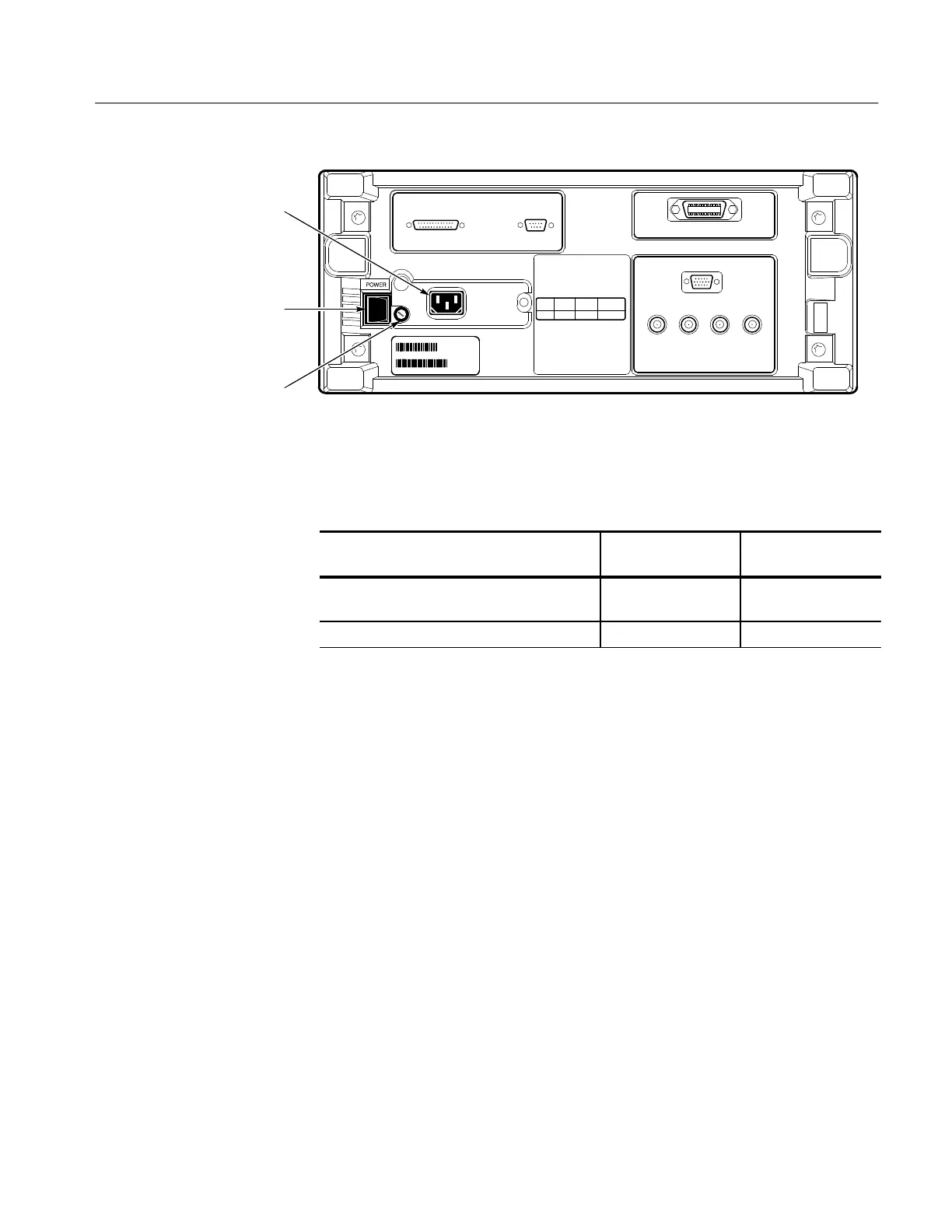

Figure 1–1: Rear Panel Controls Used in Start Up

Table 1–2: Fuse and Fuse Cap Part Numbers

Fuse Fuse Part Number

Fuse Cap

Part Number

0.25 inch × 1.25 inch (UL 198.6, 3AG): 6 A

FAST, 250 V

159-0013-00 200-2264-00

5 mm × 20 mm (IEC 127): 5 A (T), 250 V 159-0210-00 200-2265-00

To remove the front cover, grasp the left and right edges and snap the cover off

of the front subpanel. (To reinstall the cover, align it to the front subpanel and

snap it back on.)

To power on the oscilloscope, do the following steps:

1. Check that the rear-panel principal power switch is on (see Figure 1–1). The

principal power switch controls all AC power to the instrument.

2. If the oscilloscope is not powered on (the screen is blank), push the

front-panel ON/STBY button to toggle it on (see Figure 1–2).

Front Cover Removal

Power On
