Tenda W311R User Manual

11N Wireless Broadband Router
27

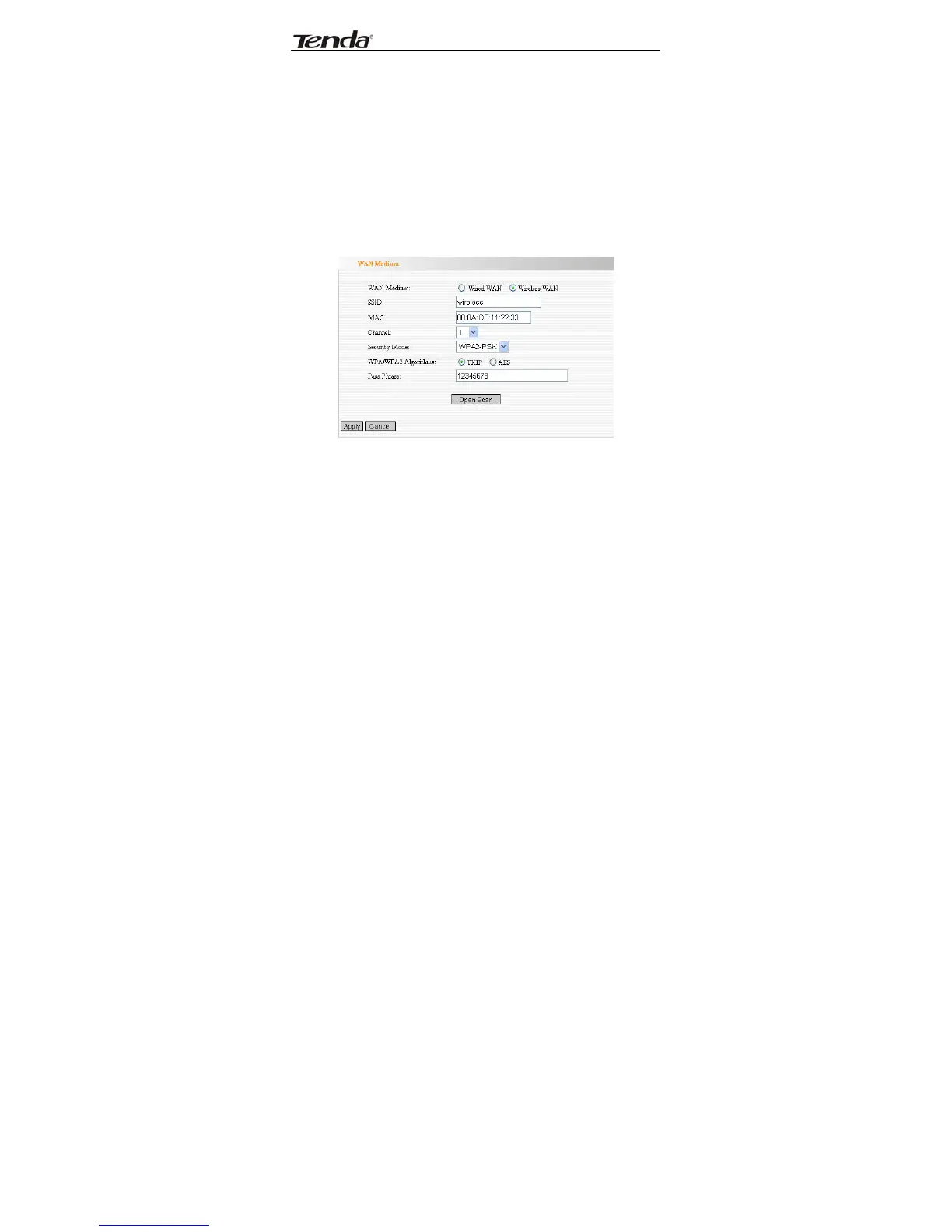

5.5 WAN Media Type
In most cases, ISP provides wired WAN access (ADSL
MODEM, Cable MODEM, etc.) and you only need to
insert the line into the Router’s WAN port. Sometime,
wireless WAN access type, more flexible and convenient,
is also provided by some ISP.
¾ Wired WAN: In this type, WAN port should be
connected by wired cable. This type is the device’s
default option.
¾ Wireless WAN: When your ISP provides wireless
access service, you can enable this WAN access
type.
¾ SSID: SSID (Service Set Identifier) is the ID name
of the wireless device. You must input the correct
SSID and keep it the same SSID with your ISP’s
wireless device. Otherwise, it is not allowed to have

Tenda W311R Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	11 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Bandwidth	2.4 GHz
Interface	LAN, WAN, WLAN
Input voltage	110 - 240 V
Dimensions (WxDxH)	110.02 x 159.95 x 31 mm
Power requirements	9V DC, 1A
USB ports quantity	0
Networking features	Ethernet, Fast Ethernet
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100Mbit/s
WLAN data transfer rates supported	11, 54, 150 Mbit/s
DHCP client	No
Supported network protocols	PPPoE/PPTP/L2TP/DHCP server
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity	1
Antenna gain level (max)	5 dBi
Ethernet LAN (RJ-45) ports	4
Bundled software	Internet Explorer 5.5 / Firefox 1.0
Certification	FCC, CE, RoHS, WEEE
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
LED indicators	LAN, Link, Power, WAN, WLAN

Weight and Dimensions

Weight	- g
