Tenda W311R User Manual

11N Wireless Broadband Router
66

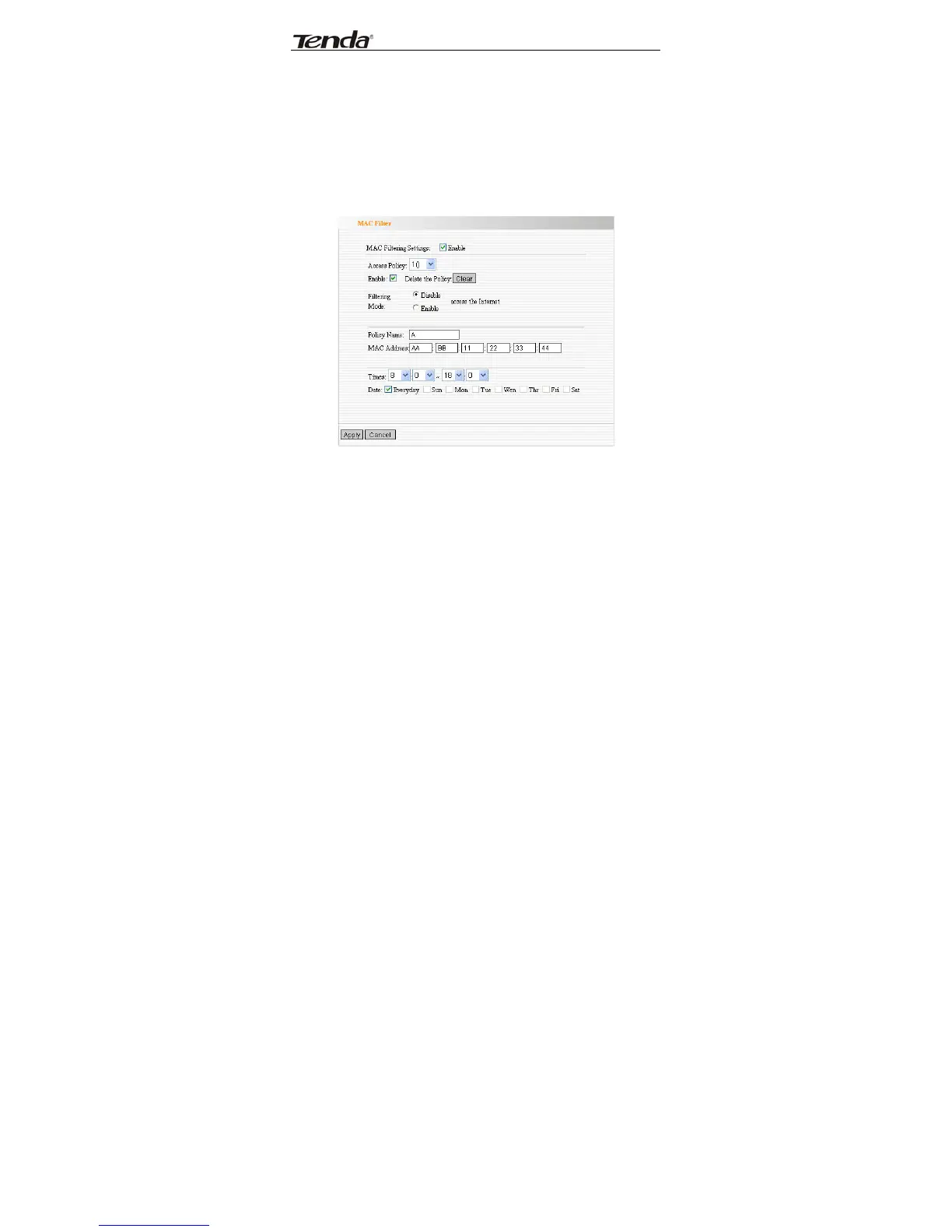

11.3 MAC Address Filter
In order to manage the computers in LAN better, you
could control the computer’s access to Internet by MAC
Address Filter.
¾ MAC Address Filter: Check to enable MAC
address filter.
¾ Access Policy: Select one number from the
drop-down menu.
¾ Enable: Check to enable the access policy.
¾ Clear the Policy: Click “Clear” button to clear all
settings for the policy.
¾ Filter Mode: Click one radio button to enable or
disable to access the Internet.
¾ Policy Name: Enter a name for the access policy
selected.

Tenda W311R Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	11 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Bandwidth	2.4 GHz
Interface	LAN, WAN, WLAN
Input voltage	110 - 240 V
Dimensions (WxDxH)	110.02 x 159.95 x 31 mm
Power requirements	9V DC, 1A
USB ports quantity	0
Networking features	Ethernet, Fast Ethernet
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100Mbit/s
WLAN data transfer rates supported	11, 54, 150 Mbit/s
DHCP client	No
Supported network protocols	PPPoE/PPTP/L2TP/DHCP server
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity	1
Antenna gain level (max)	5 dBi
Ethernet LAN (RJ-45) ports	4
Bundled software	Internet Explorer 5.5 / Firefox 1.0
Certification	FCC, CE, RoHS, WEEE
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
LED indicators	LAN, Link, Power, WAN, WLAN

Weight and Dimensions

Weight	- g
