Tenda W311R User Manual

11N Wireless Broadband Router
56

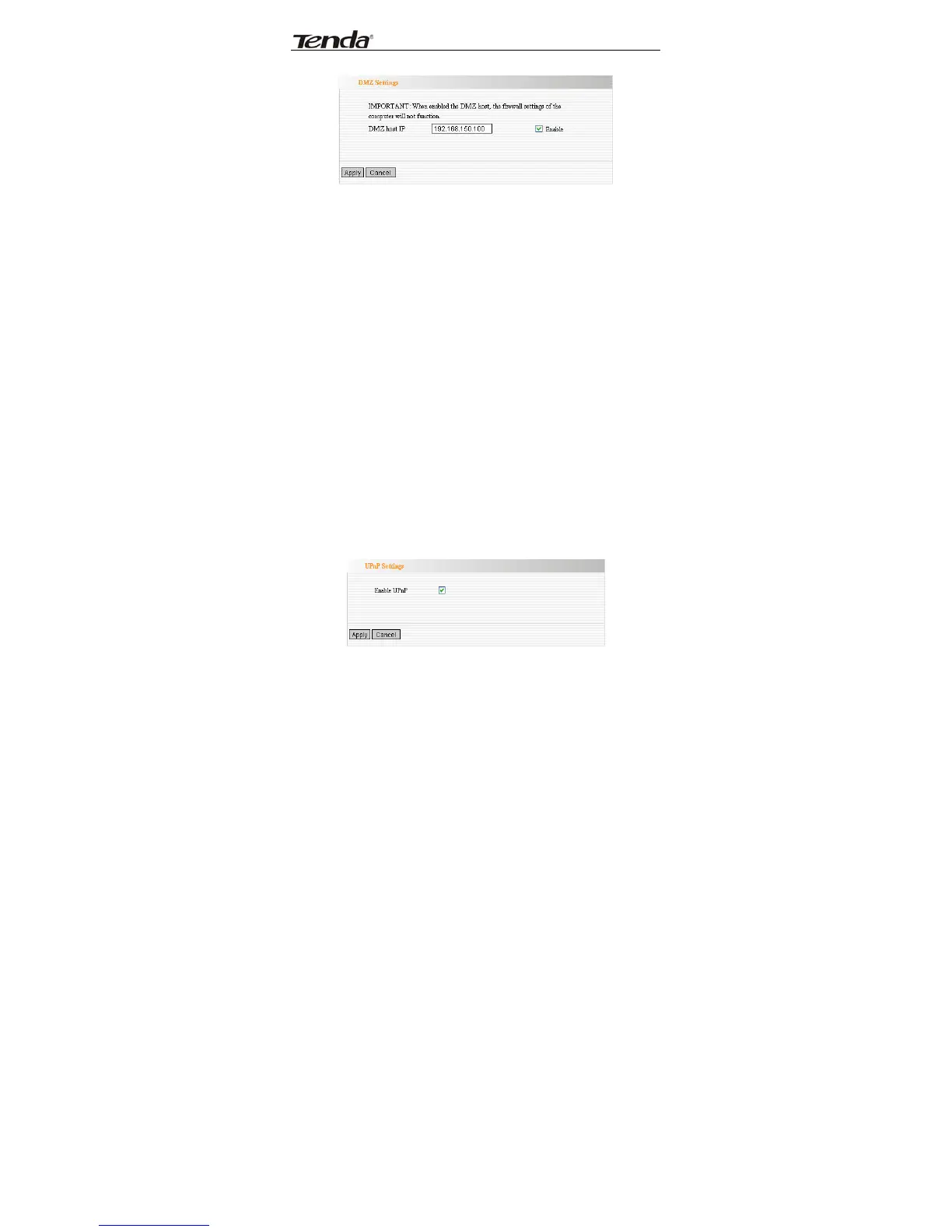

¾ DMZ Host IP Address: The IP address of the
computer you want to expose.
¾ Enable: Click the checkbox to enable the DMZ
host.
¾ IMPORTANT: When the DMZ host is enabled, the
firewall settings of the DMZ host will not function.
8.5 UPNP Settings
It supports latest Universal Plug and Play. This function
goes into effect on Windows XP or Windows ME or this
function would go into effect if you have installed
software that supports UPnP. With the UPnP function,
host in LAN can request the router to process some
special port switching so as to enable host outside to
visit the resources in the internal host.
¾ Enable UPnP: Click the checkbox to enable the
UPnP.

Tenda W311R Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	11 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Bandwidth	2.4 GHz
Interface	LAN, WAN, WLAN
Input voltage	110 - 240 V
Dimensions (WxDxH)	110.02 x 159.95 x 31 mm
Power requirements	9V DC, 1A
USB ports quantity	0
Networking features	Ethernet, Fast Ethernet
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100Mbit/s
WLAN data transfer rates supported	11, 54, 150 Mbit/s
DHCP client	No
Supported network protocols	PPPoE/PPTP/L2TP/DHCP server
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity	1
Antenna gain level (max)	5 dBi
Ethernet LAN (RJ-45) ports	4
Bundled software	Internet Explorer 5.5 / Firefox 1.0
Certification	FCC, CE, RoHS, WEEE
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
LED indicators	LAN, Link, Power, WAN, WLAN

Weight and Dimensions

Weight	- g
