13 TPS65994QFNEVM Board Layout
Figure 13-1 through Figure 13-10 show the TPS65994QFNEVM board layout images.

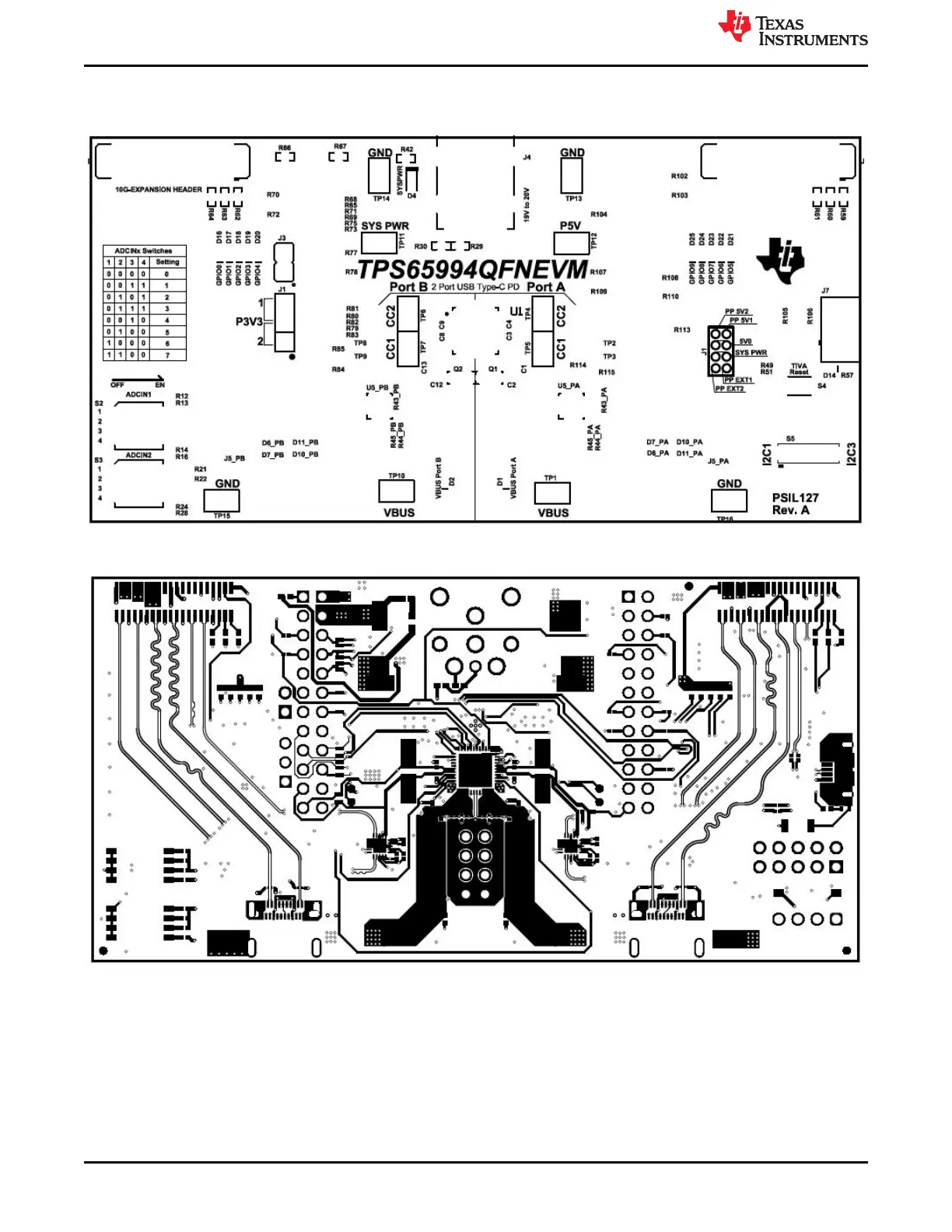

Figure 13-1. TPS65994QFNEVM Top Silk Screen
Figure 13-2. TPS65994QFNEVM Top Layer
TPS65994QFNEVM Board Layout
www.ti.com
44 TPS65994 EVM User Guide SLVUBM1C – JANUARY 2019 – REVISED JANUARY 2021
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
