Assembly
How to Assemble/Disassemble
Floor Washer
Note: For water tank and brush assembly, please refer to “Operation” and “Maintenance”.
①
②

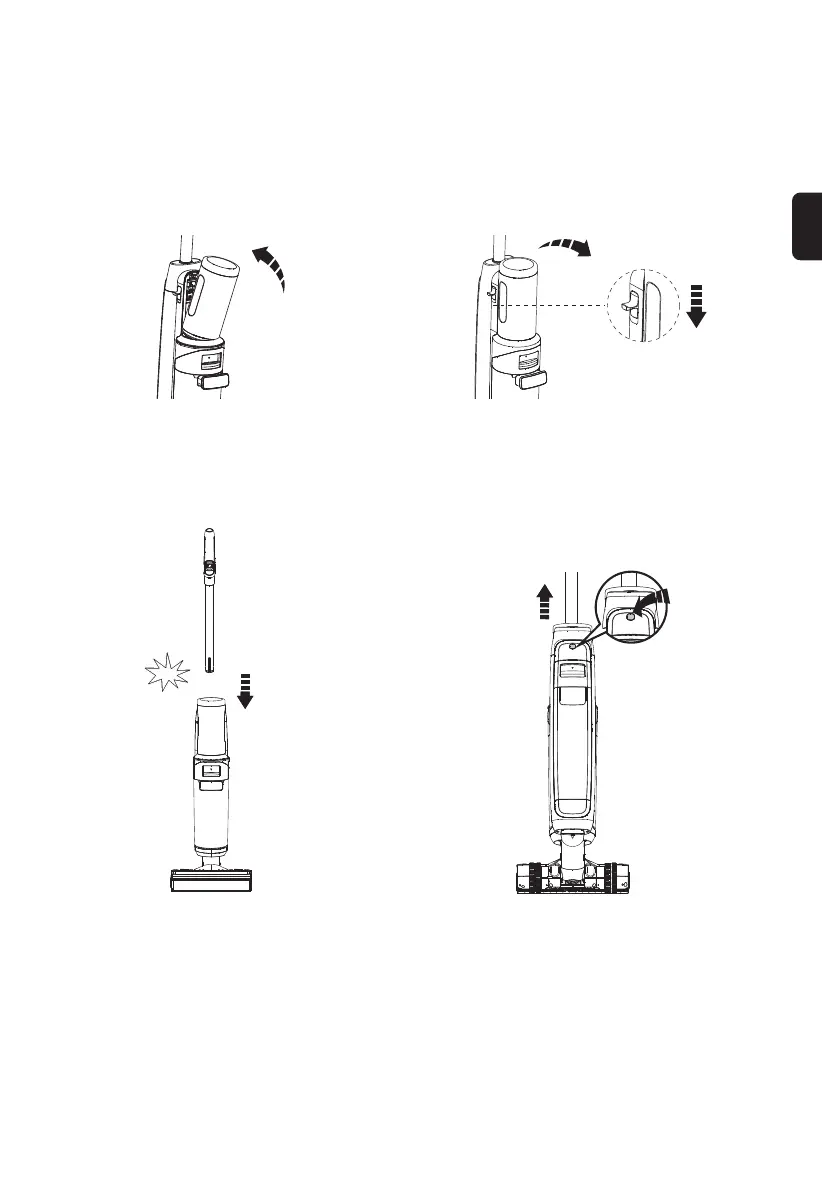

To install, insert the SwitchPro Motor into the
oor washer, push it in, installation is complete
when you hear a click.
To remove the SwitchPro Motor, hold the
appliance with one hand and press the release
slider with the other hand.
click
To assemble the handle, insert it into the
appliance until you hear a click.
To remove the handle, press the release
button on the back of the appliance, then pull
the handle upwards.
