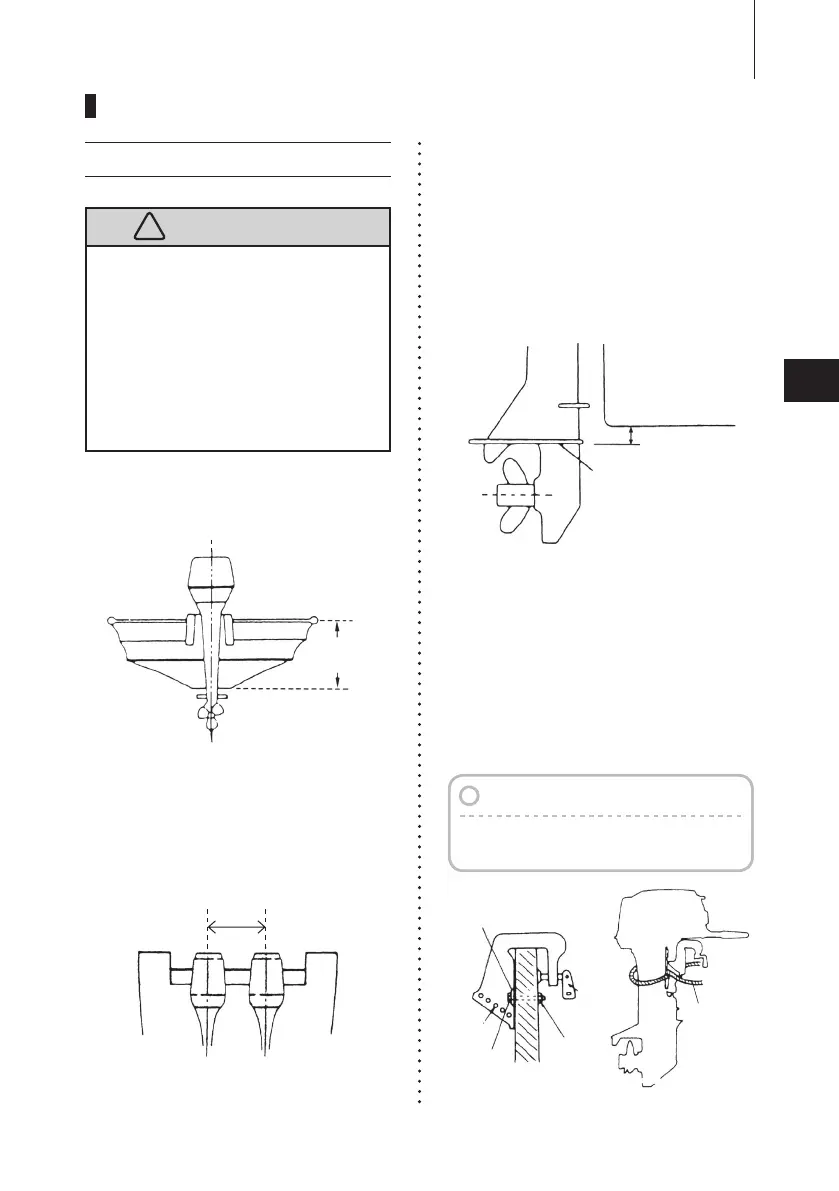

Single-engine Installation
Set engine at center of boat.
■
Twin-engine Installation
W h e n i n s t a l l i n g t w o o u t b o a r d
engines, be sure to keep an interval
of approximately 580 mm (22.8 in)
between the two.
Transom matching
1
Be sure that the anti ventilation plate
of the outboard motor is 30-50mm
(1.2-2 in) below the bottom of hull.
If the above condition cannot be
met due to the shape of the bottom
of your boat, please consult your
authorized dealer.
2
To attach the outboard motor to the
boat, tighten the clamp screws by
turning their handles.
Also, use the bolts to secure
the outboard motor brackets on
transom board.
Secure the outboard motor with a
rope to prevent loss overboard.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
19
Most boats are rated and certified
in terms of their maximum allowable
horsepower, as shown on the boat’s
certification plate. Do not equip your boat
with an outboard motor that exceeds this
limit. If in doubt, contact your dealer.
Do not operate the outboard motor until it
has been securely mounted on the boat
in accordance with the instructions below.
1.
Mounting the outboard motor on boat
INSTALLATION
Boat Transom
Center of Boat
Bottom of hull
Anti Ventilation Plate
30-50 mm
(1.2-2 in)
Note
A rope is not included in the standard
accessories.
Bolt
Clamp
screw
Nut &
Washer
*option
Washer
To Next Page
