TOHATSU M 25H User Manual

INSTALLATION
It is recommended that you consult
wi th y o ur a u t h or iz ed d e al er f o r
installation adjustment of the remote
control device.
■
Installation of the Remote Control
Cables (Box side) :
Fol low the in structi on ma nual
provided with the remote control.
■
Installation of the Remote Control
on your boat :
Fol low the in structi on ma nual
provided with the remote control.
■
Installation of the Remote Control
Cable (engine side) and the Cord
Assembly (Wiring Harness) :
25H EP/30H EP
1

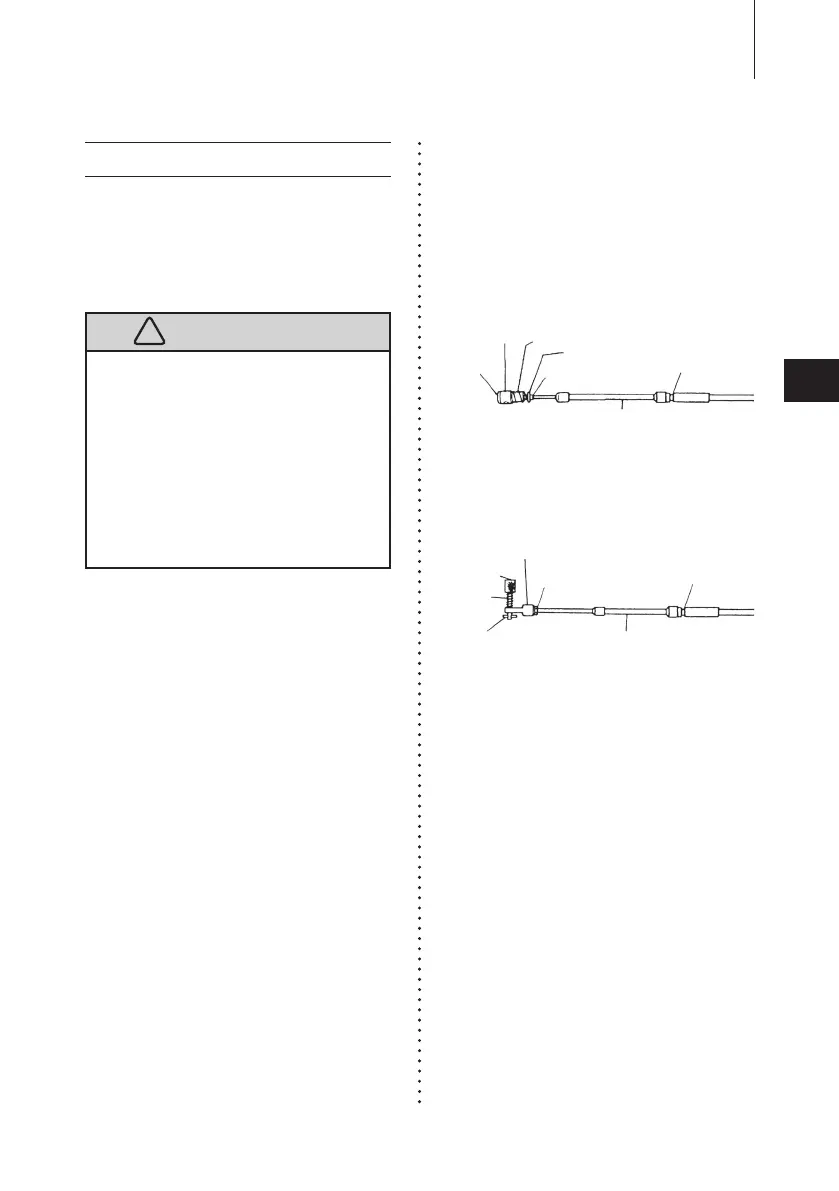

Fitting of holder cap and sleeve B
guide
Throttle side......Fit the holder cap
to the end of the cable and fix it
by the nut.
Shift side......Fit the sleeve B guide
to the end of the cable and fix it
by the nut.
3
21
Ball
holder
Holder
cap
Spring
Washer
Nut
Cable outer
groove
Throttle cable
Spring
Nut
Cable outer
groove
Shift cableSpring pin
Lock pin
Sleeve B guide
2. Installing the remote control devices
!

When using other than Tohatsu’s genuine
remote control box, DO NOT select the
one without neutral safety switch that
prevents in-gear start.
Use of remote control box without
neutral safety switch can allow start of
engine with gear at other than neutral
shift, potentially leading passengers to
falling or causing passenger to be thrown
overboard.
