IMPORTANT: To prevent system contamina-
tion, clean the top of hydraulic oil containers
before puncturing them. Make sure the pour
spout and funnel are clean.
3. Install the reservoir cap, close the hood and
secure the latch.

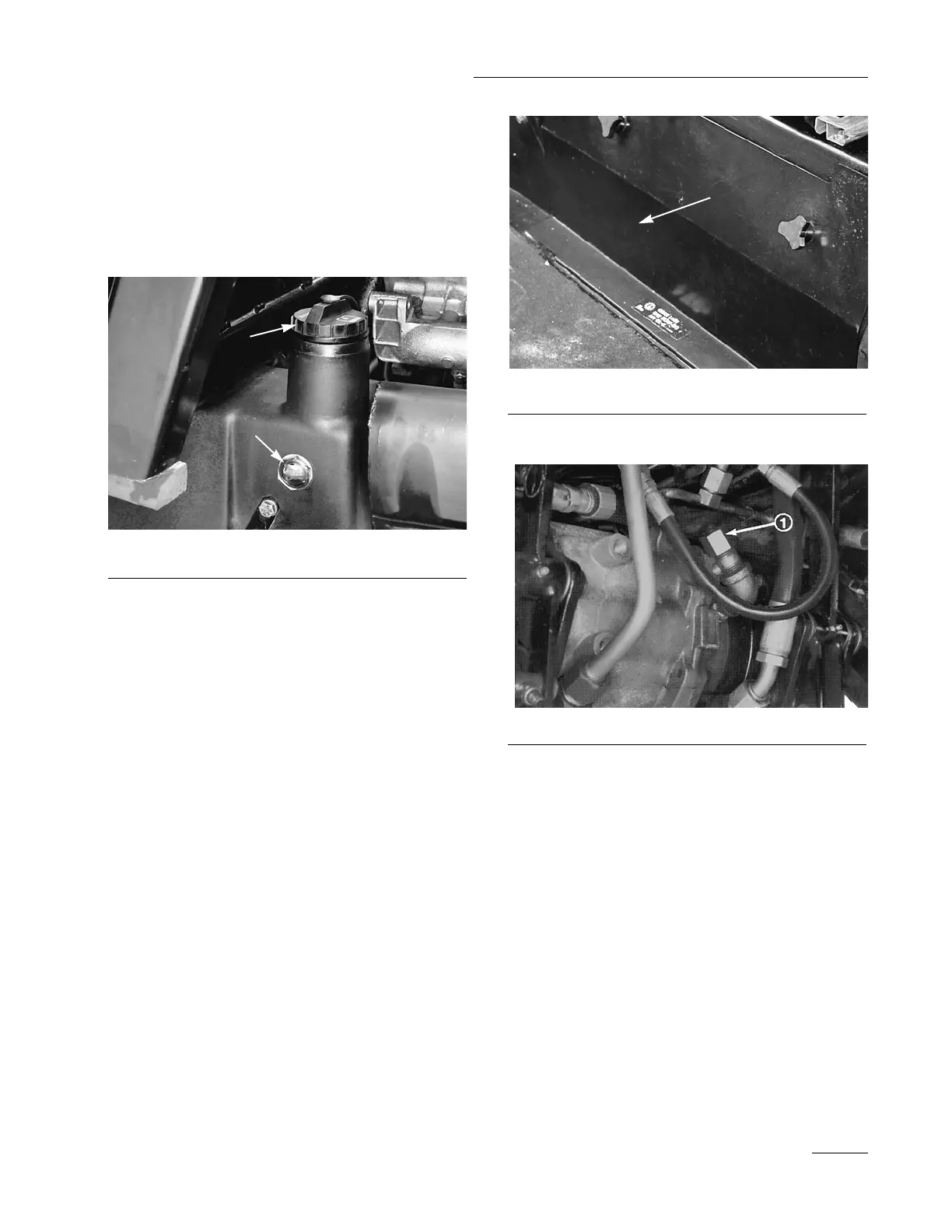

Figure 5
1. Sight gauge
2. Hydraulic reservoir cap
CHECK FRONT AXLE OIL LEVEL
The front axle is shipped from the factory filled with
SAE 80-90 grade gear lubricant. However, check the
level before the engine is first started and every 50
hours thereafter. Capacity is 128 oz.
1. Park the machine on a level surface.
2. Remove access panel (Fig. 6), in front of the seat,
to expose the front axle /dipstick.
3. Unscrew the dipstick cap (Fig. 7) from the filler
neck and wipe it with a clean rag. Screw the dip-
stick cap finger tight onto the filler neck.
Unscrew the dipstick and check the level of lubri-
cant. If the level is not within 1/2 inch from the
groove in the dipstick, add enough to raise the
level to the groove mark. DO NOT OVERFILL
by more than 1.2 cm (1/2 in) above the groove.
Figure 6
1. Access Panel
Figure 7
1. Dipstick cap
4. Screw the dipstick filler cap finger-tight onto the
filler neck. It is not necessary to tighten the cap
with a wrench.
CHECK THE REAR AXLE LUBRI-
CANT (Model 03603 Only) Fig. 8
The rear axle is shipped from the factory filled with
SAE 80-90 wt gear lubrication. However, check the
level before the engine is first started and every 50
hours thereafter. Capacity is 80 oz.
1. Position the machine on a level surface.
2. Remove a check plug from one end of the axle
13
Before Operating
➀
➁
➀
