LUBRICATION
GREASING BEARINGS AND BUSHINGS
(Fig. 28-38)
The traction unit has grease fittings that must be lubri-
cated regularly with No. 2 General Purpose Lithium
Base Grease. If you operate the machine under normal
conditions, lubricate all bearings and bushings after
every 25 hours of operation.
1. The traction unit bearings and bushings that must
be lubricated are:
T
wo- and Four-wheel drive the machines— #1
Lift arm pivot (1), #1 lift cylinder (1), brake arm
pivots (2) (Fig. 18); #2 & 3 lift arm pivots (2), #2
& #3 lift cylinders (2), brake pivot (1) (Fig. 19);
brake pivots (2) (Fig. 20); traction pedal pivot (1)
(Fig. 21); reel speed shaft (1) (Fig. 22); traction
adjuster (1) (Fig. 23) and the transmission shift
linkage (1) (Fig. 28)
T
wo-wheel drive machines—cylinder end (2), tie
rod assembly (2) (Fig. 24); center pivot (1), spin-
dles (2) (Fig. 25).
F
our-wheel drive machines—tie rod assemblies
(2), center pivot (1), axle knuckles (2) (Fig. 26);
cylinder ends (2) (Fig. 27).
1. Wipe the grease fitting clean so foreign matter
cannot be forced into the bearing or bushing.
2. Pump grease into the bearing or bushing.
3. Wipe up excess grease.

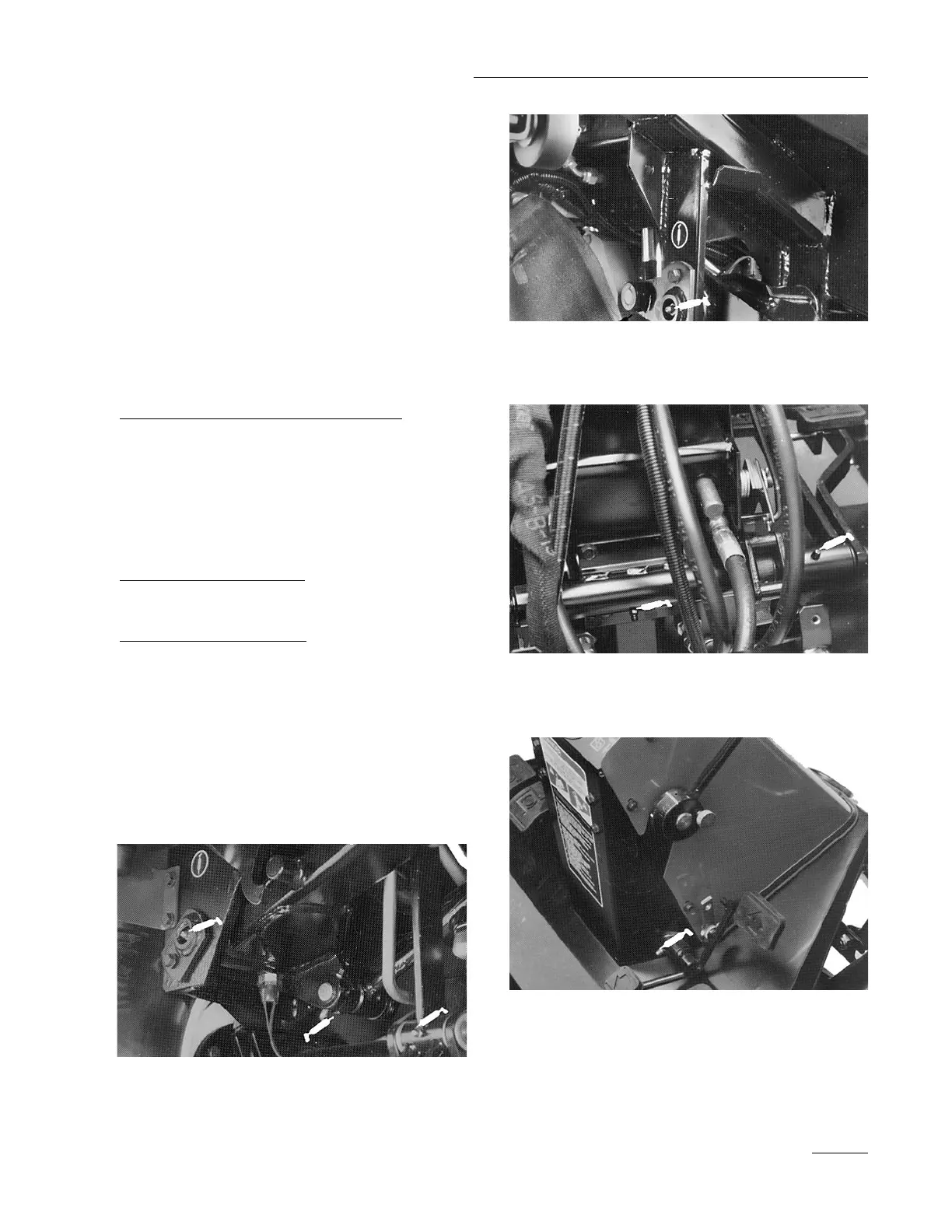

Figure 18
Figure 19
Figure 20
Figure 21
